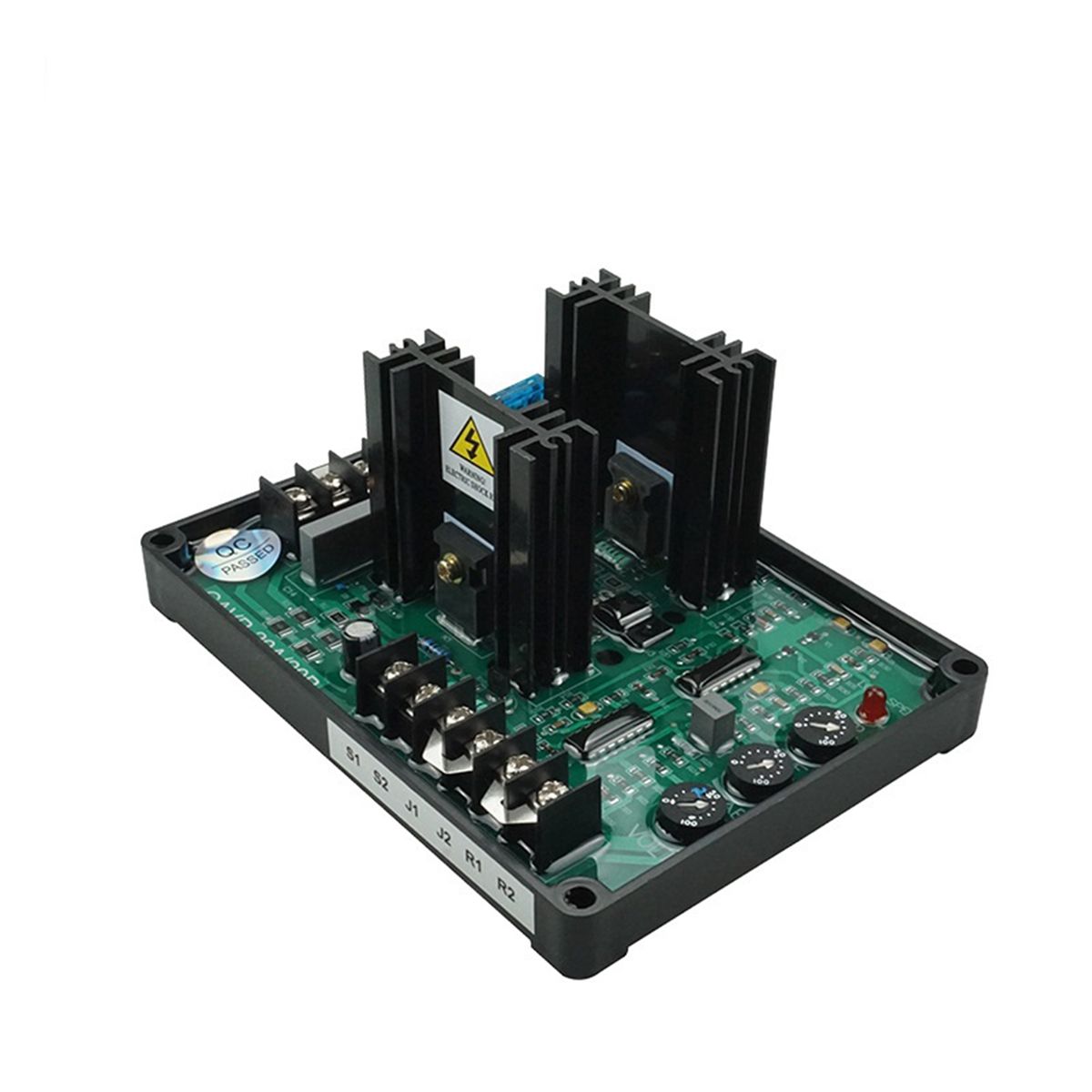

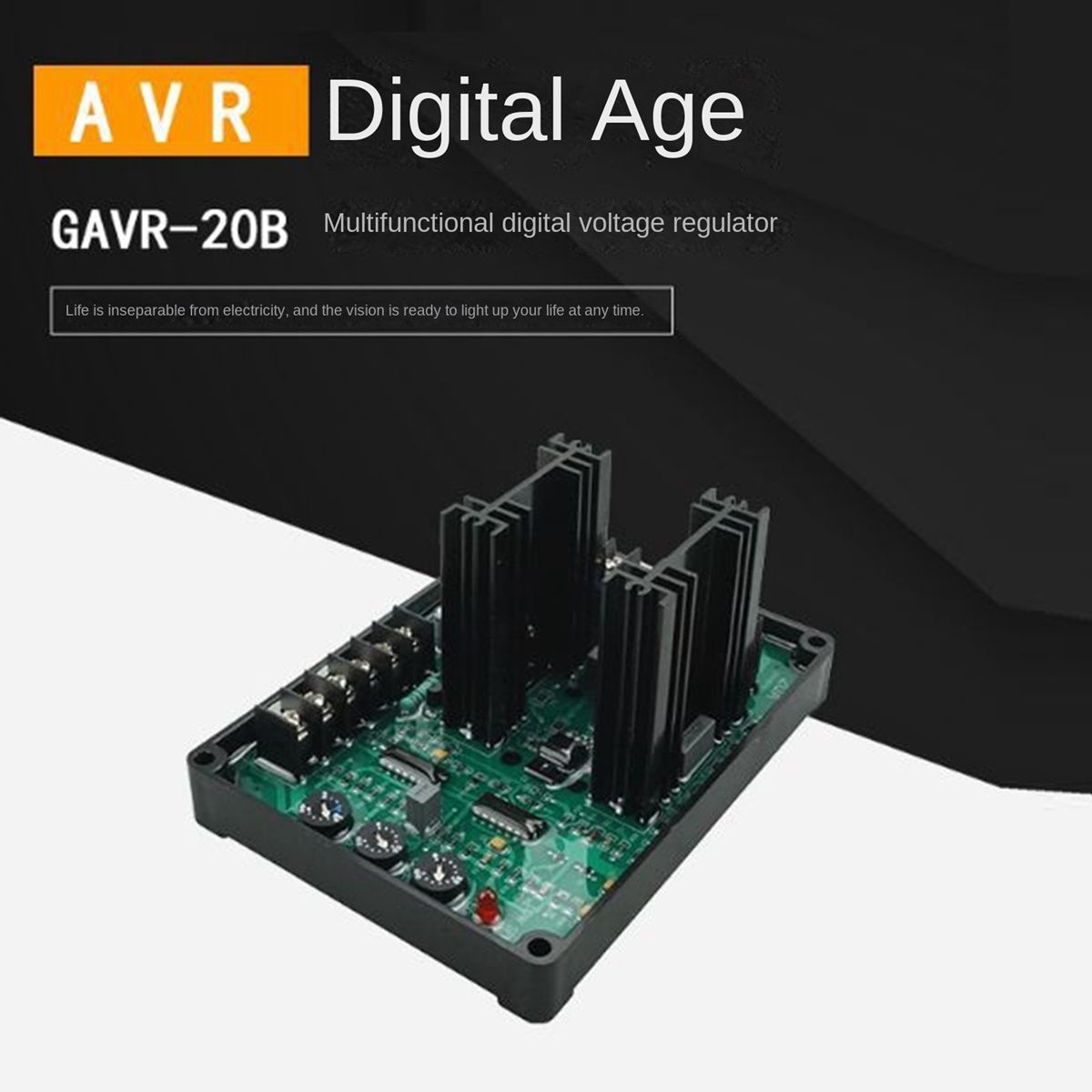

GAVR-20B Brushless Generator Automatic Voltage Regulator Avr Generator 220400Vac Frequency Protection Emi Suppression

2High voltage stability suitable for 220400V AC brushless generator
3Low frequency and slow voltage function
4Built-in high breaking capacity fuse for better
5The voltage regulator uses retardant and high temperature resistant components to safety use

Model GAVR-20B
Detection input voltage 220400V AC
Power input voltage 170-270V AC single-phase two-wire
Field output voltage 240V AC input maximum 90V DC current 20A continuous
Voltage regulation accuracyLess than ± 1% engine speed variation is within 4%
Due to different production batches the appearance may be different which does not affect the use
Colourblack
MaterialABSPCB

Package Contents
1 x Automatic Voltage Regulator

Only the above package content other products are not included
Note Light reflection and different displays may cause the color of the item in the picture a little different from the real thing The measurement allowed error is - 1-3cm

What's In the Box

1 x Automatic Voltage Regulator
