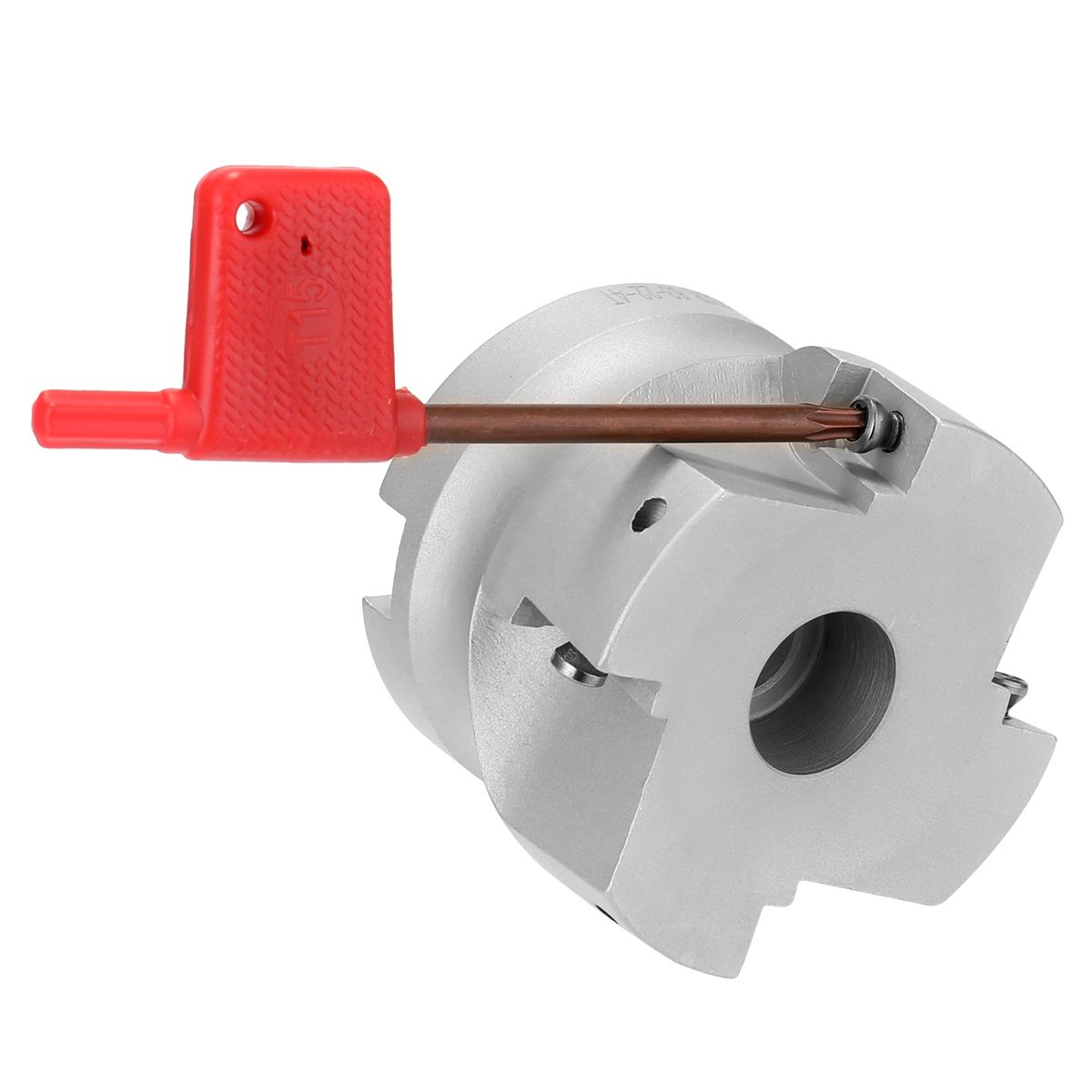

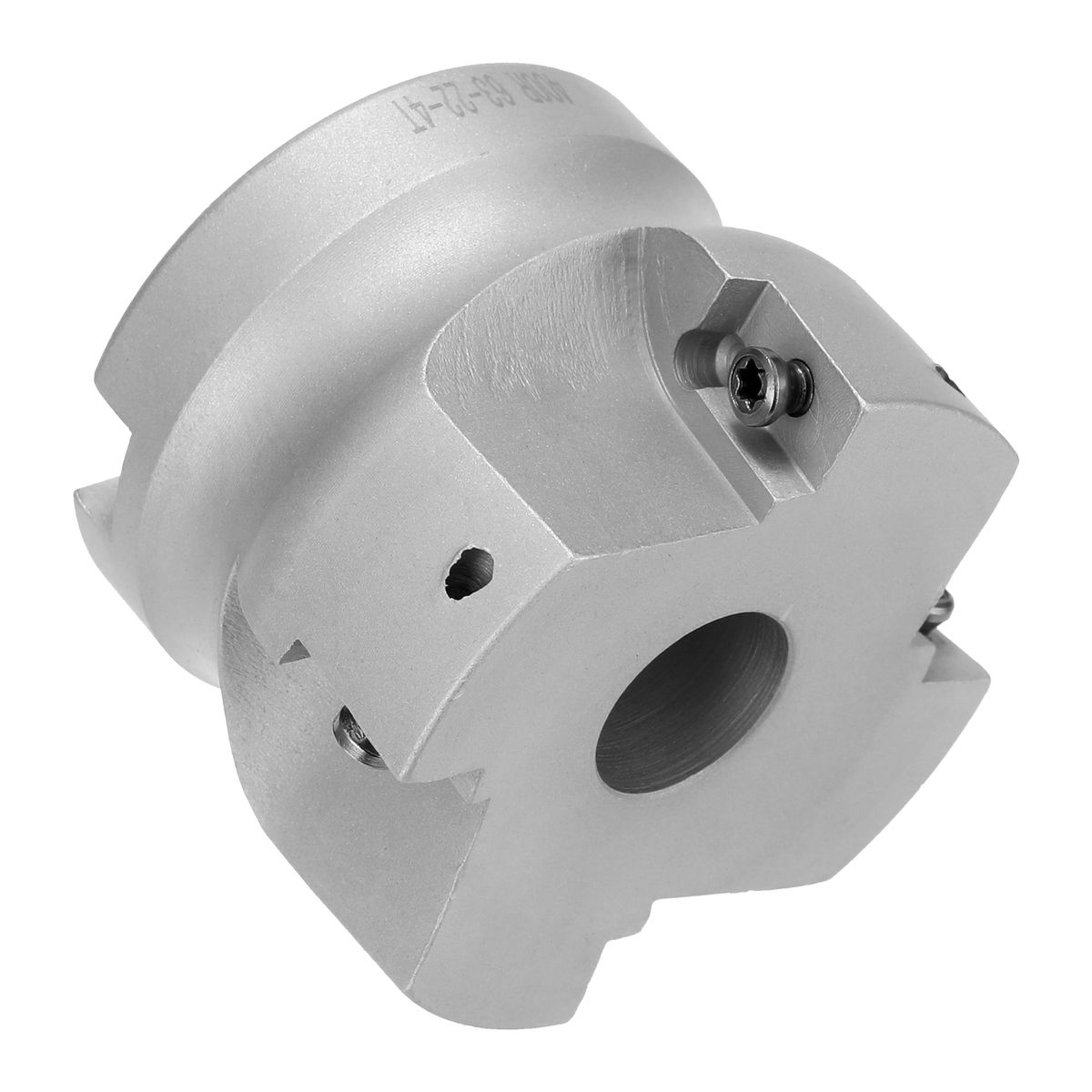

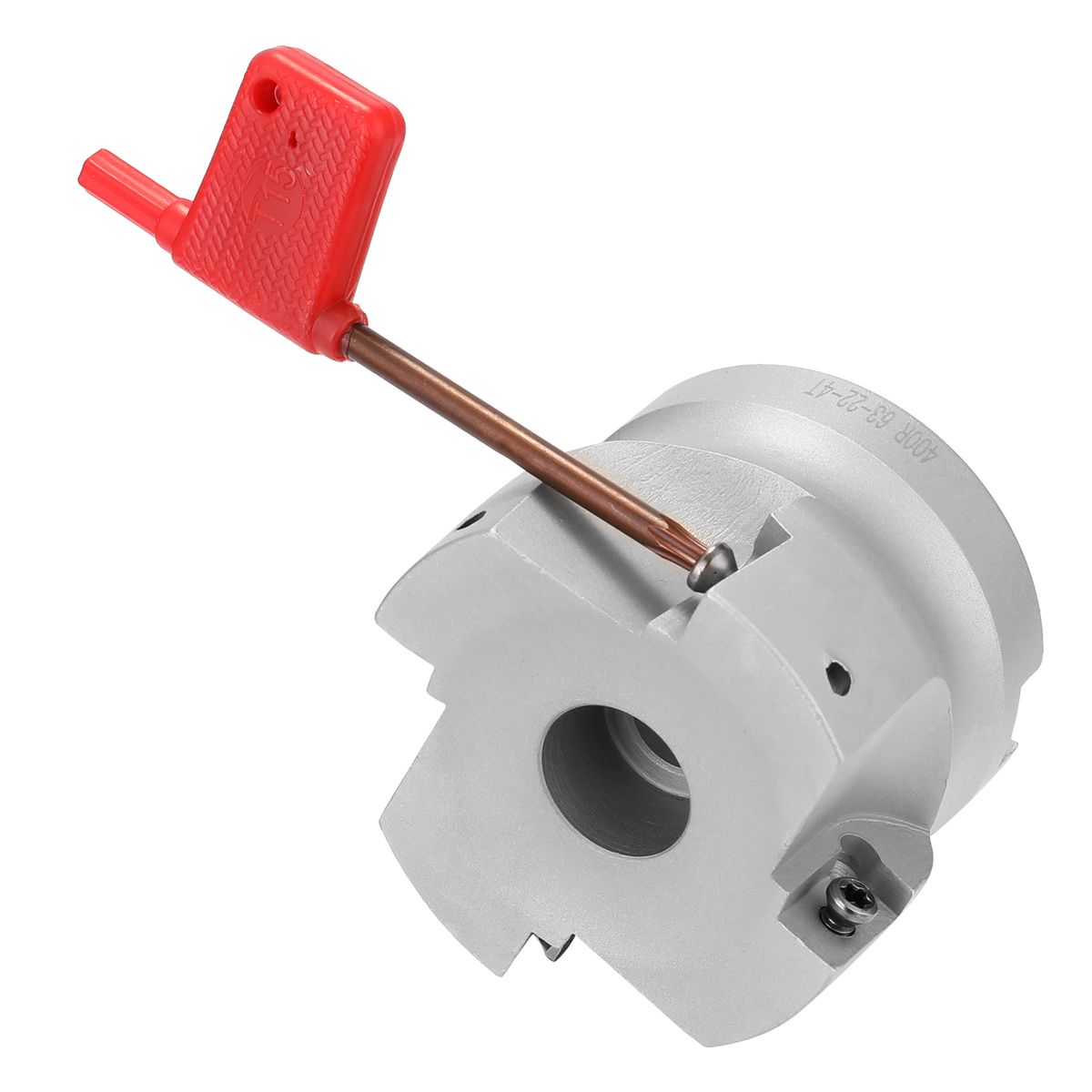

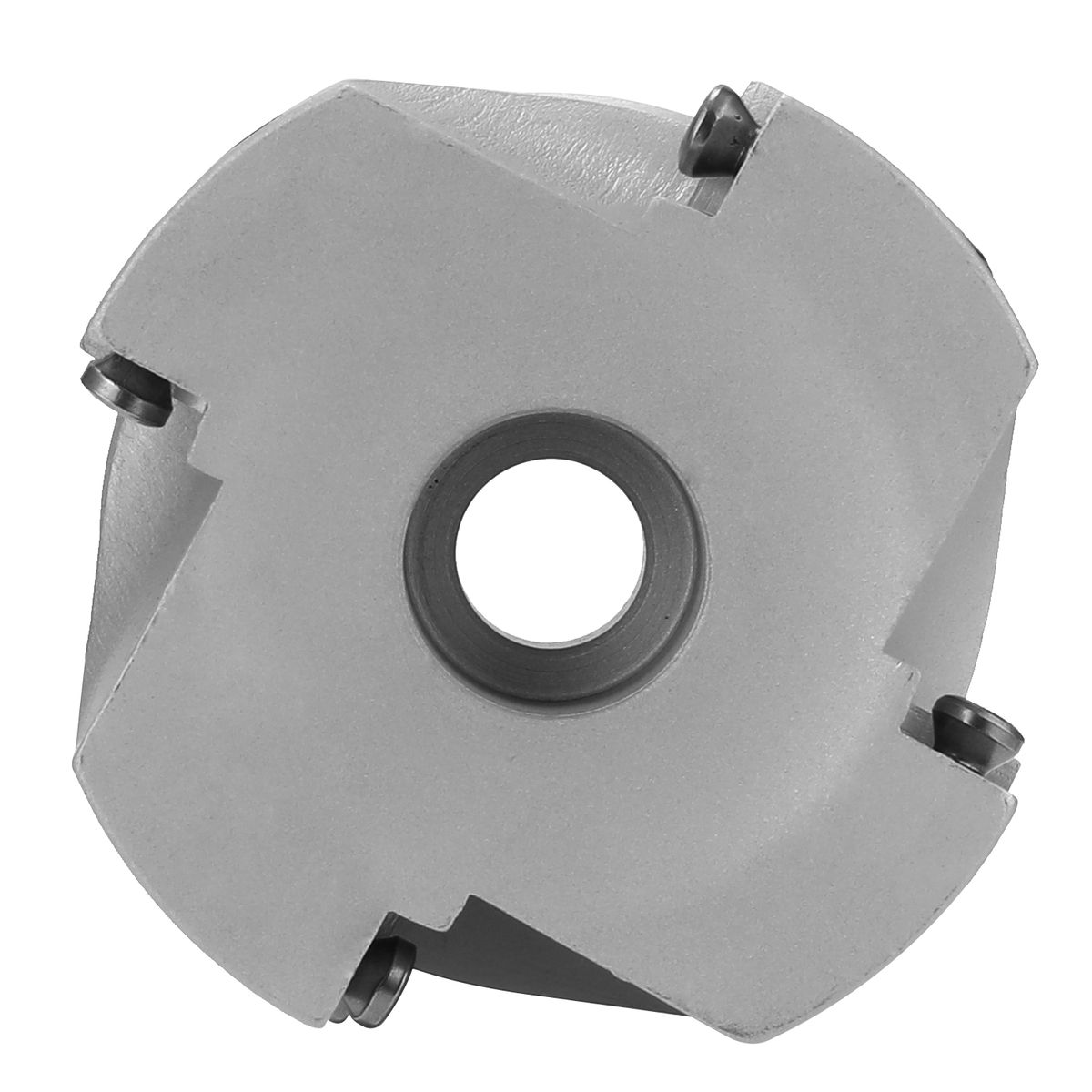

BAP 400R50-22-4T Carbide Insert Clamped Fast Feeding Alloy

This is a kind of fine quality BAP 400R50-22-4T face-end mill, made of fine quality carbide, with fine impact resistance, it has stronger toughness, higher strength and less elasticity. Capacity chip a large space, and with fine chip disposal ability. Large rake angle, cutting a small load, planar milling finishing applicable. Fit steel, castings, aluminum pieces of various materials blade. You can have a try.

Features:

Fine impact resistance, it has stronger toughness, higher strength and less elasticity.

The rotary and milling feed rates more than normal milling cutter.

Capacity chip a large space, and with fine chip disposal ability.

Large rake angle, cutting a small load, planar milling finishing applicable.

Fit steel, castings, aluminum pieces of various materials blade.

Processing range: roughing, plane processing; groove cut; side processing; stairs processing.

Specifications:

Name: Face End Mill

Model: BAP 400R50-22-4T

Material: carbide alloy

Applicable Inserts: APMT1604

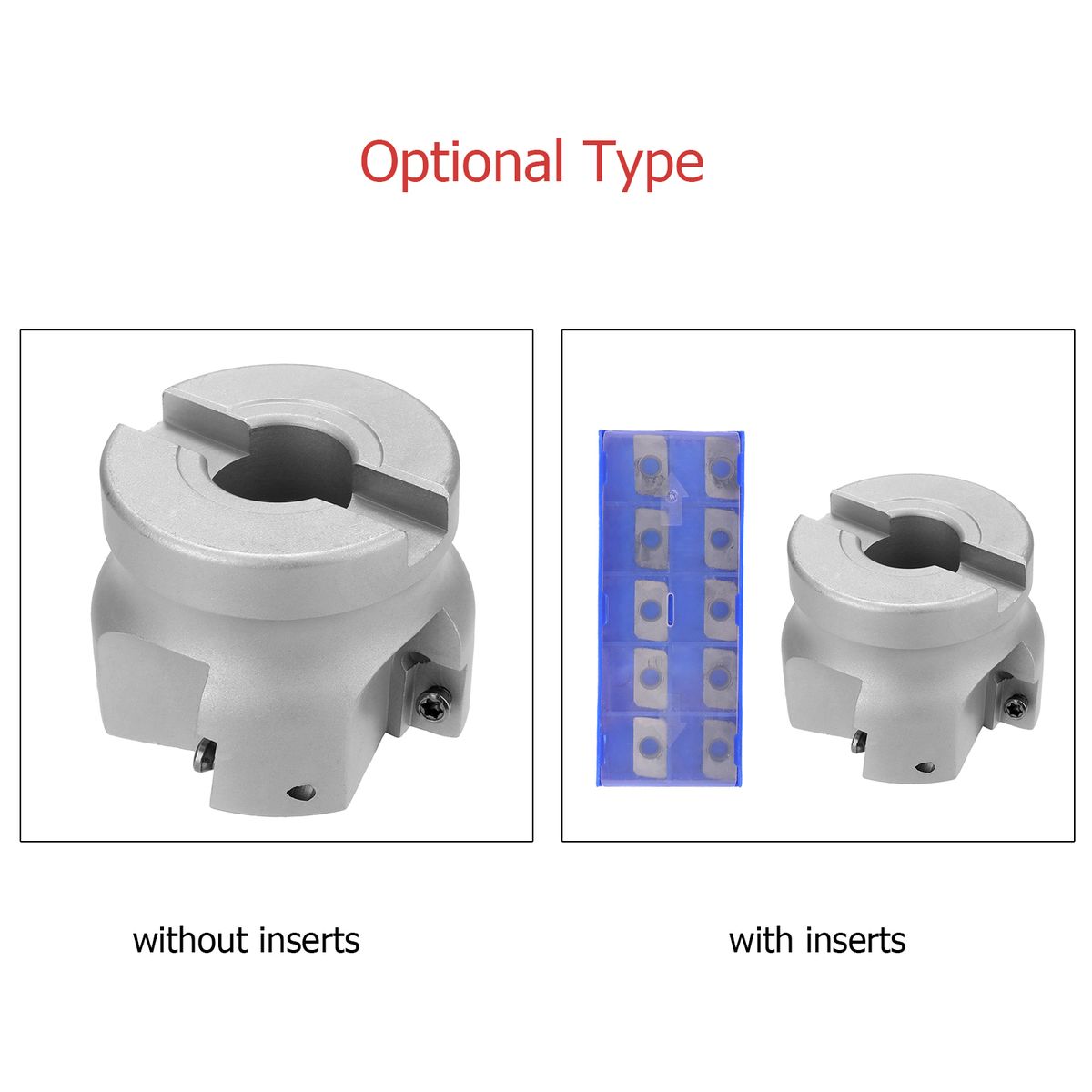

Type: without inserts, with inserts (optional)

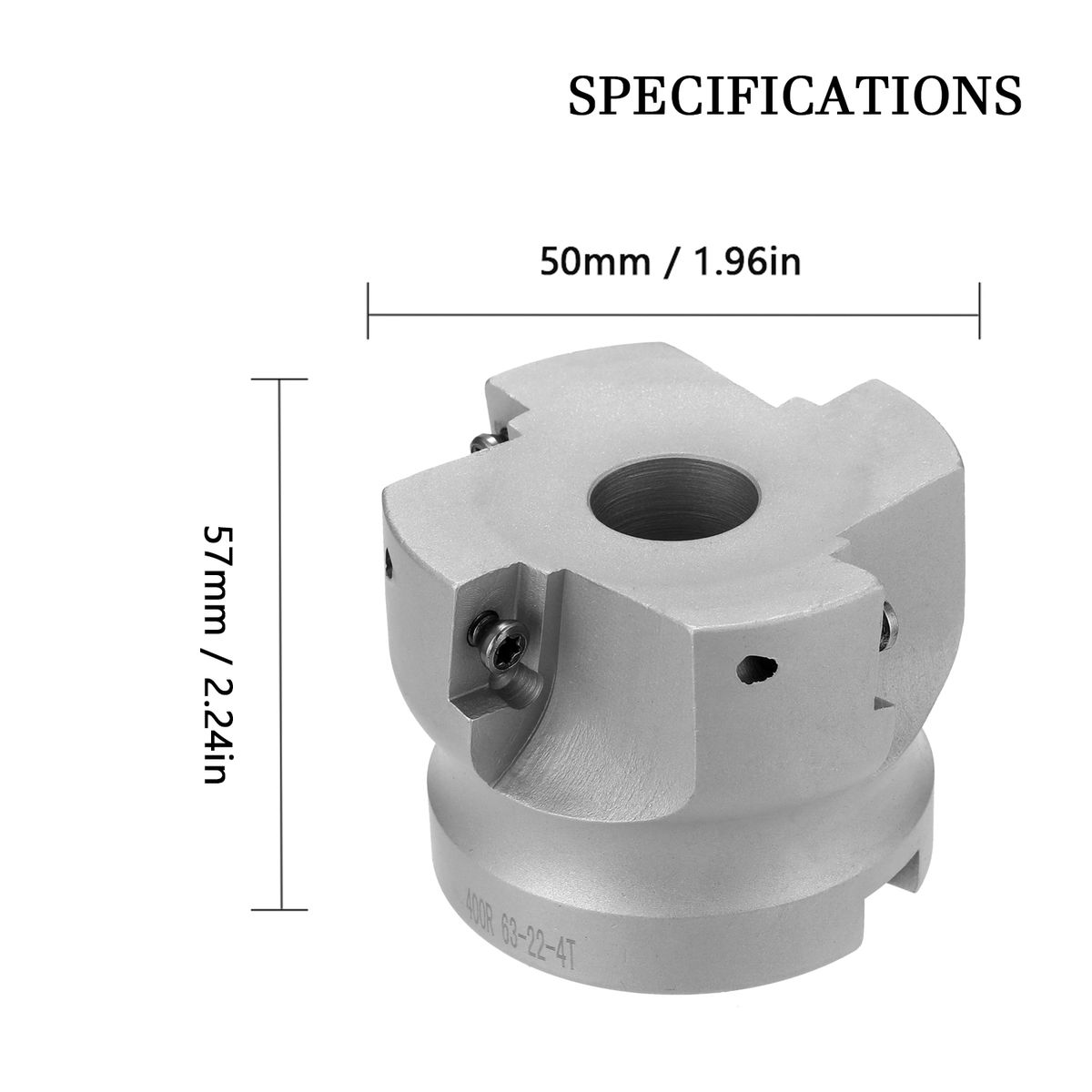

size:

Face-end mill(without box): 50 * 50 * 57mm / 1.97 * 1.97 * 2.24in

Face-end mill(with box): 80 * 72 * 87mm / 3.15 * 2.83 * 3.43in

Inserts(single pcs): 18 * 11 * 6mm / 0.71 * 0.43 * 0.24in

Inserts(with box): 92 * 40 * 13mm / 3.62 * 1.57 * 0.51in

weight:

Without inserts: 694g / 1.53lb

With inserts: 742g / 1.64lb

Package size: 150 * 100 * 100mm / 5.91 * 3.94 * 3.94in

Package weight:

Without inserts: 768g / 1.69lb

With inserts: 522g / 1.15lb

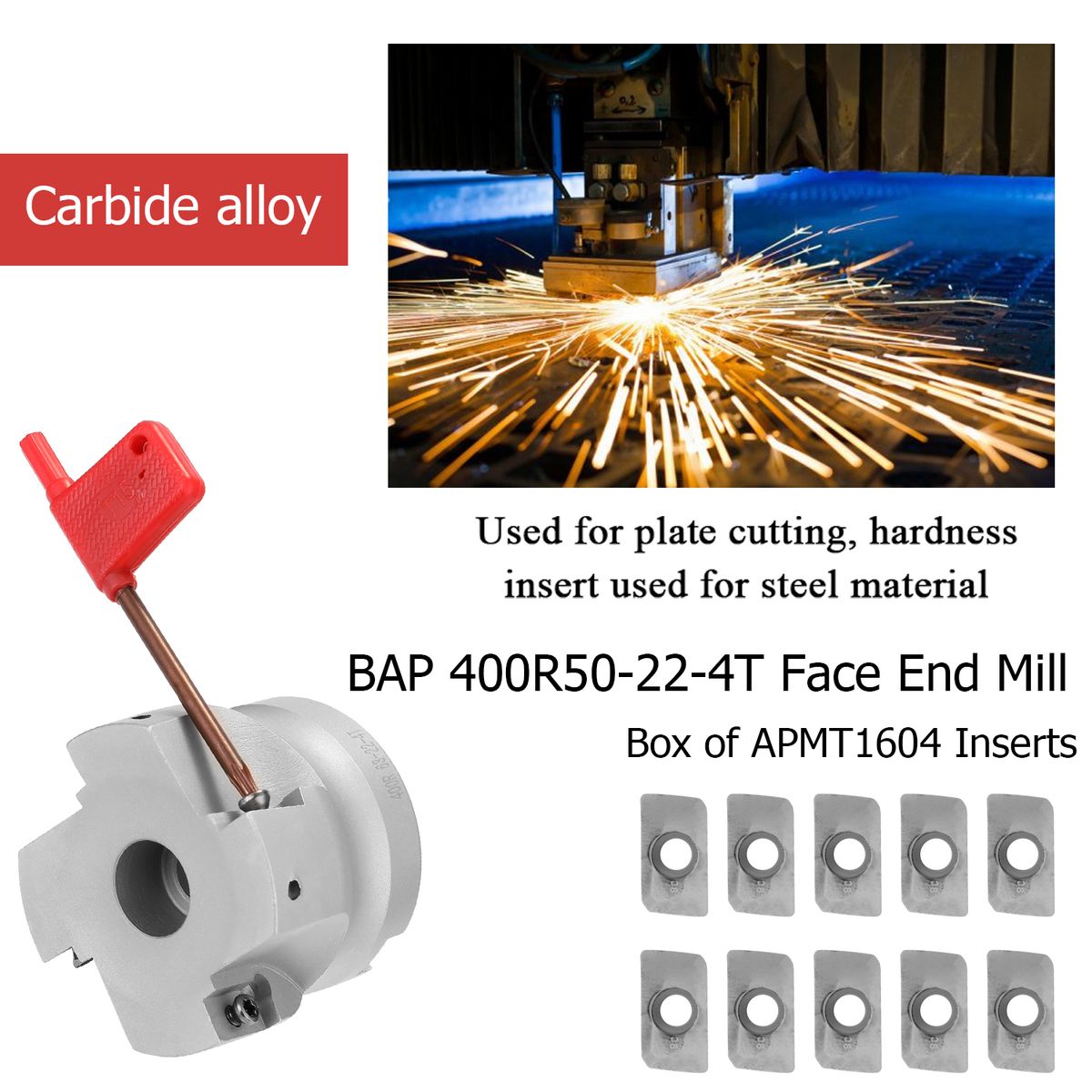

Package list(without inserts):

1 * BAP 400R50-22-4T Face End Mill

OR

Package list(with inserts):

1 * BAP 400R50-22-4T Face End Mill

1 * Box of APMT1604 Inserts (10 pcs)
