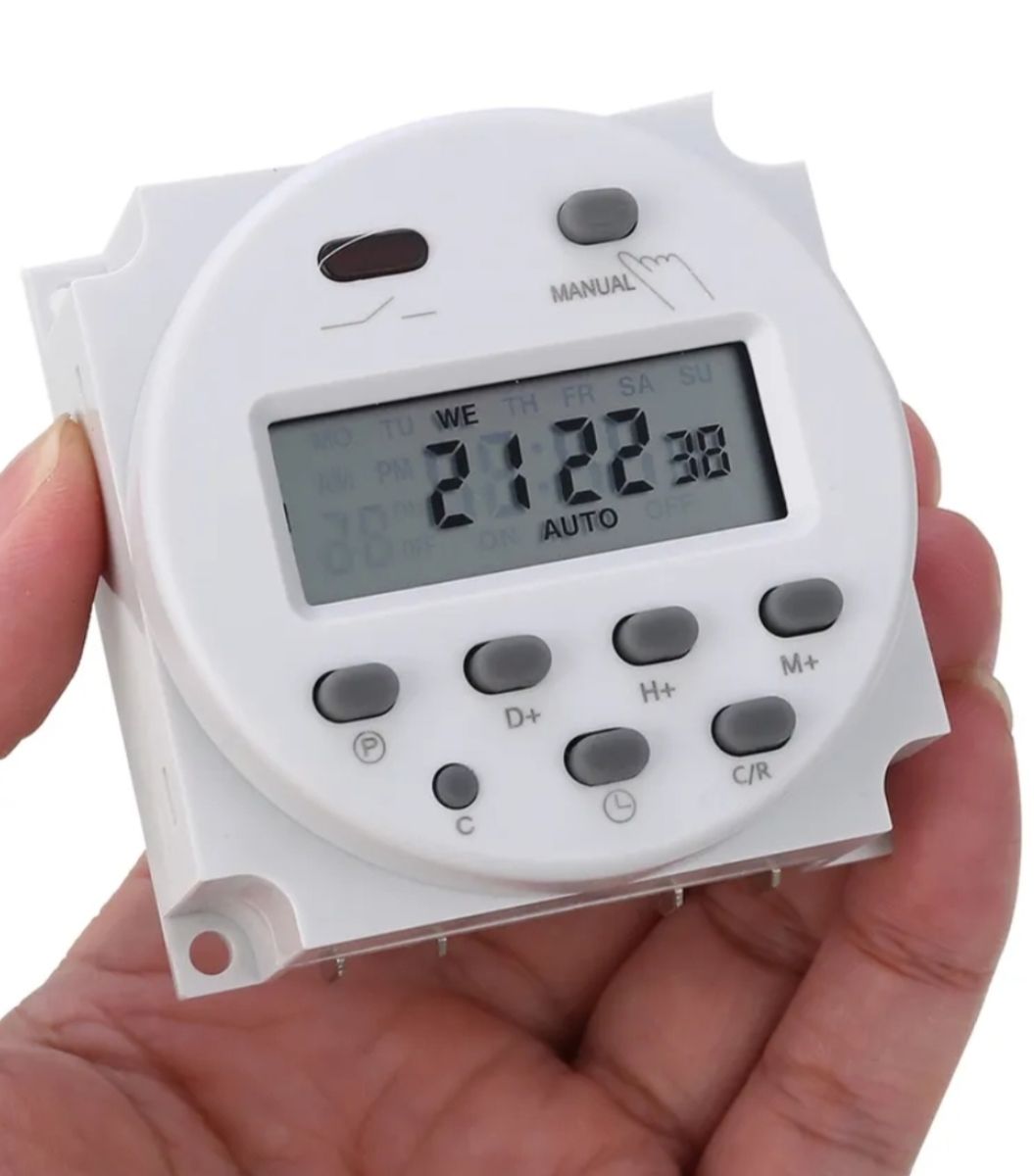

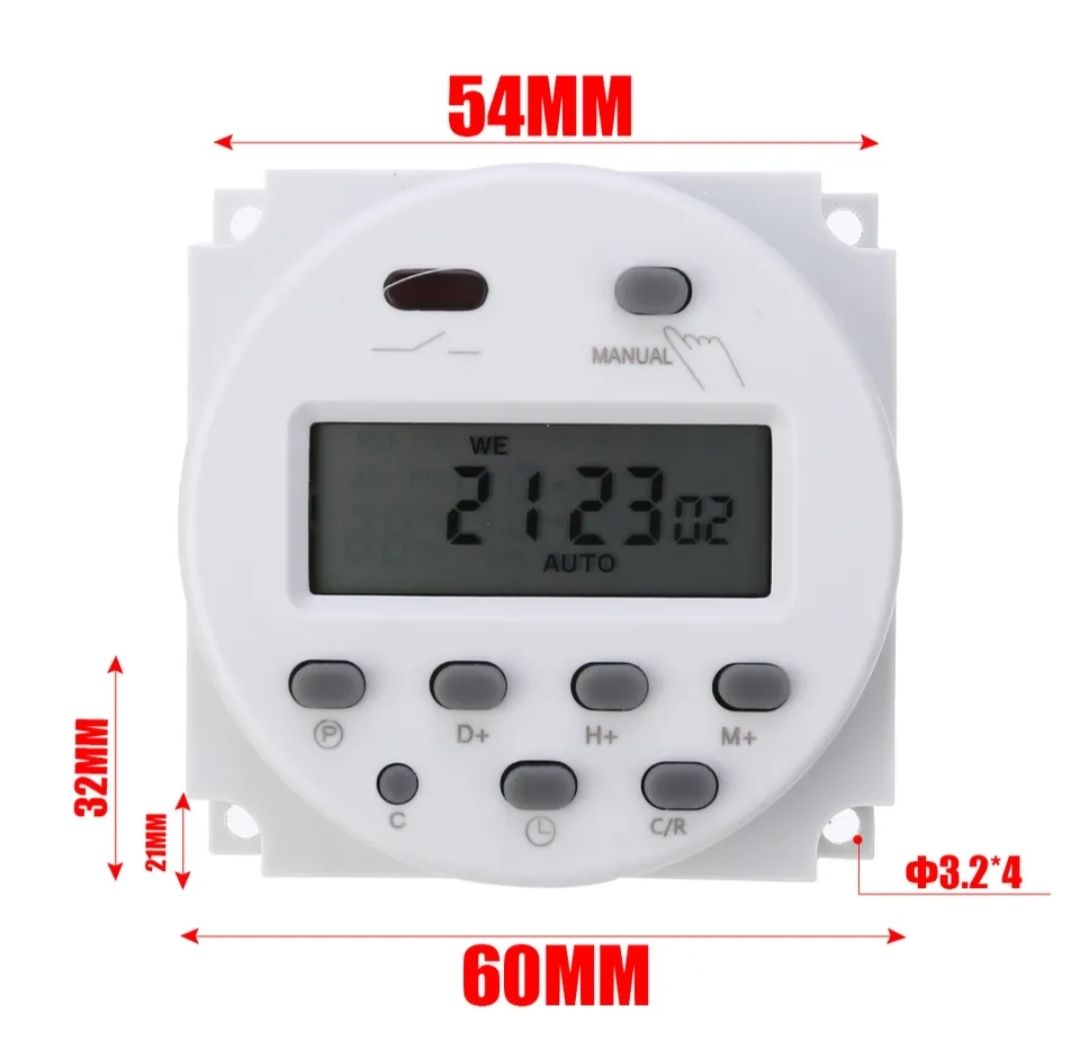

Timer Switch Relay Automatic Programmable DC 12V

Digital Programmable Automatic Timer DC 12V 16A
The button come in either blue or red
Latest technology COMS quartz Mico-controller
Digital electronics general purpose time switch with daily and weekly programsRepeat programs with 17ON/ OFF setting and manual over-rideLithium battery power reserve when electric supply cut off
Technical DataVoltage limit: DC 12VHysteresis: ≤1s/d(at 25°c)On/off operation: 17ON/OFFMinimum interval: 1 minuteWeight: Approx 150gDisplay: LCDBattery backup: 150hNumber of circuits: 1cLoad capacity: 16A 24v DC(ohmic load cosΦ=1)Service life: Mechanically:107Ambient temperature:-10~55°cStorage temperature:-20~70°cPower consumption: 7.5VA (Max.)
OPERATING INSTRUCTION:
1.First time use this timer switch,please input AC and let battery recharge,after then press reset key.2.At first time,the timer switch is in 24h mode.If you want change to 12 mode please press on "©"key 5s,and LCD will display AM.If you want re-change to 24h mode,and press on "©" key 5s to return.
Very easy to set up and use.

What's In the Box

1 DC Timer 12vManual
