Single Phase Two Wire LCD Backlight Digital Display Single Phase Electronic Energy KWh Meter AC 230V Electric Din Rail

Features 1 35mm DIN Rail mounting meets the standards of DIN EN50022 2 175mm pole width meets the standards of DIN43880 3 LCD backlight digital display no reset on to avoid human manipulation with the data

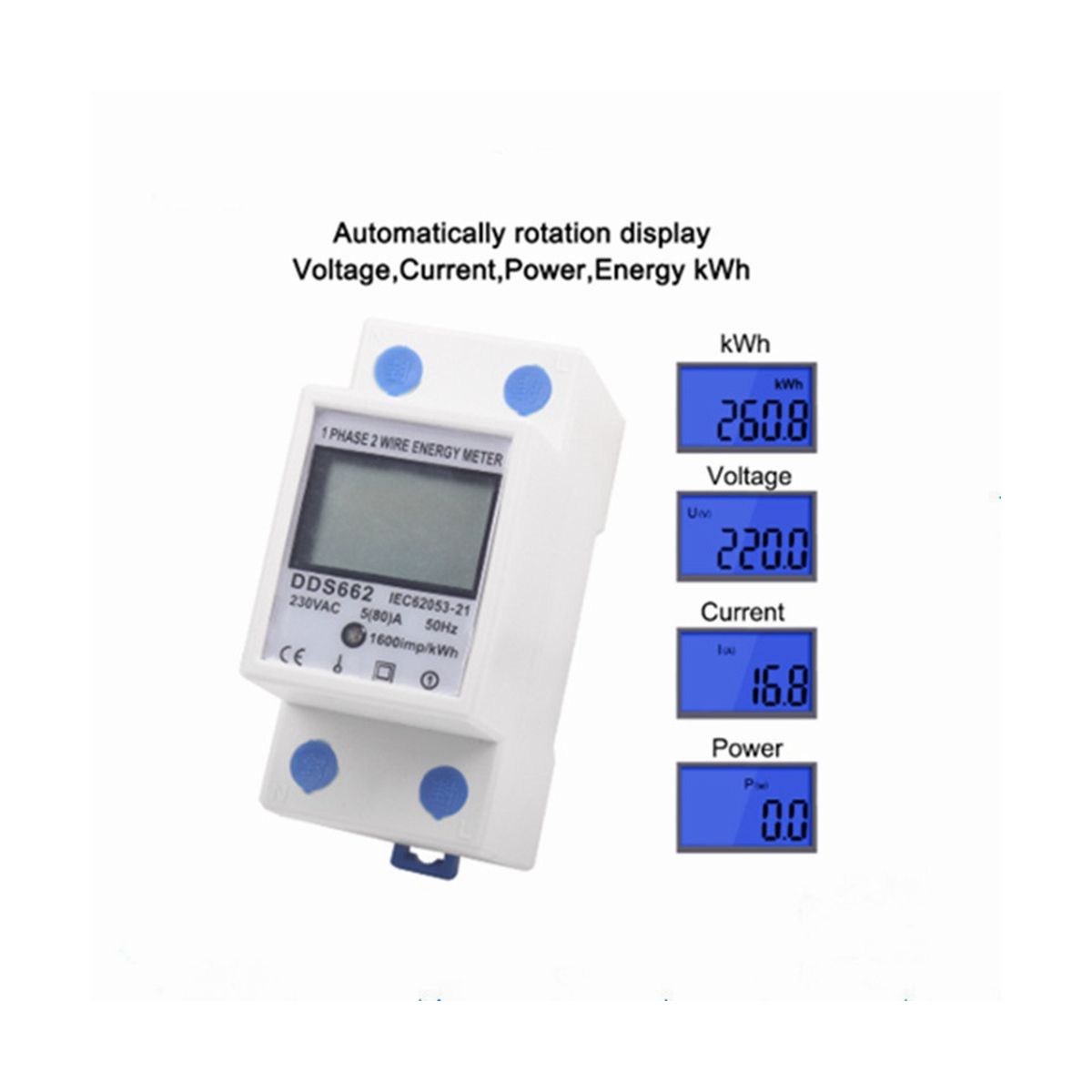

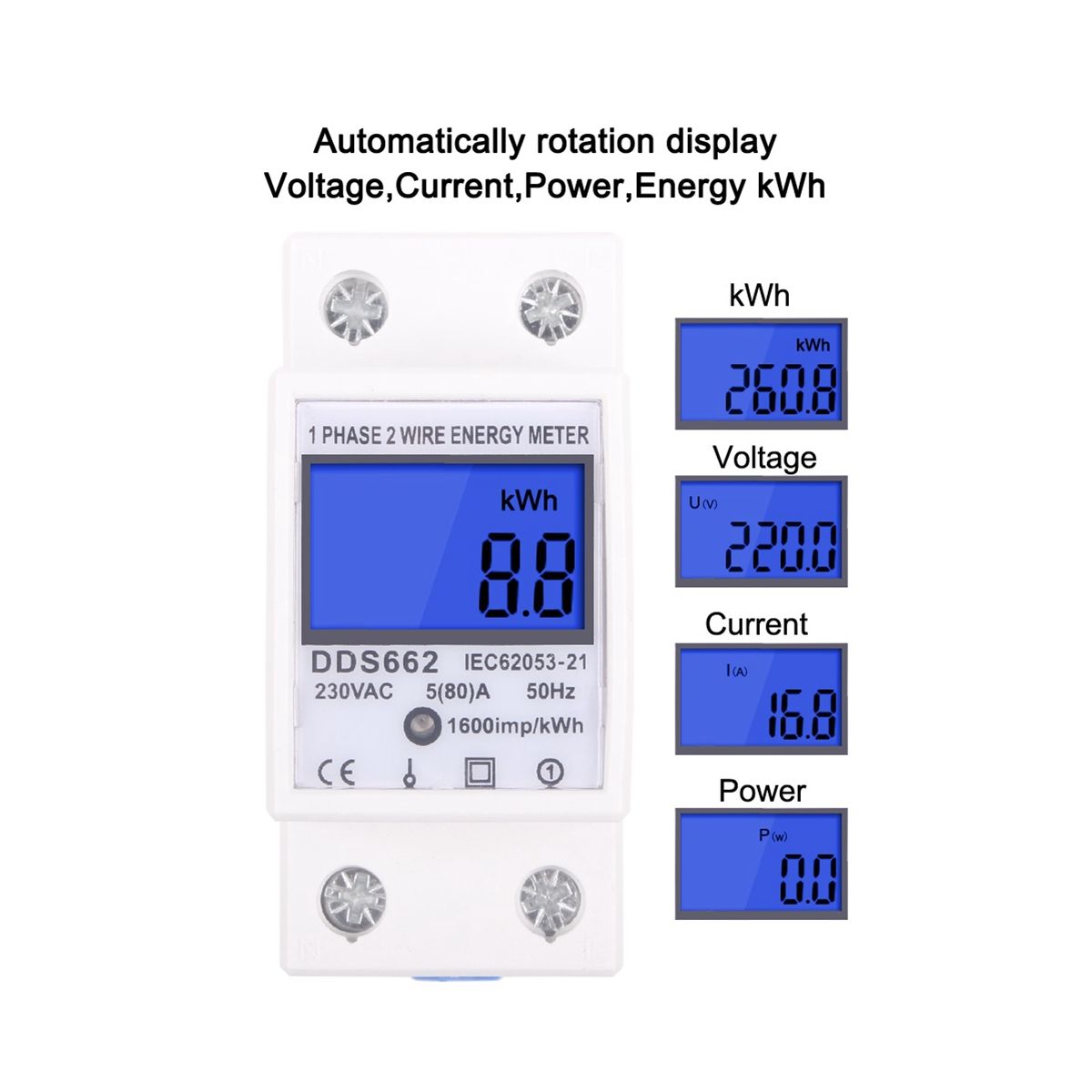

4 It displays energy voltage current power 5 Red LED energy pulse signal
6 Embedded end cover ensuring power supply safety 7 With the features of good reliability small size light weight beautiful appearance and easy installation
8 Adopt microelectronics and digital processing technology to measure electric energy accurate and
9 scale integrated circuits and precision with good electromagnetic interference resistance and stable performance

0-80A DDS662 LCD Backlight Digital Display Single Phase Electronic Energy KWh Meter
Specification
Color white
Material plastic
Model DDS662
Accuracy First Grade
Reference Voltage 220V230V 5060Hz
Reference Current Max Current 580A
Insulating Property 1min 4KV Alternating Voltage 1250us 6KV Waveform Impulse Voltage
Display LCD Backlight LCD Display
Installation 35mm DIN Rail
Wiring Up-out and down-inup-in and down-out
Power 17000W
Environment Temperature -20~50

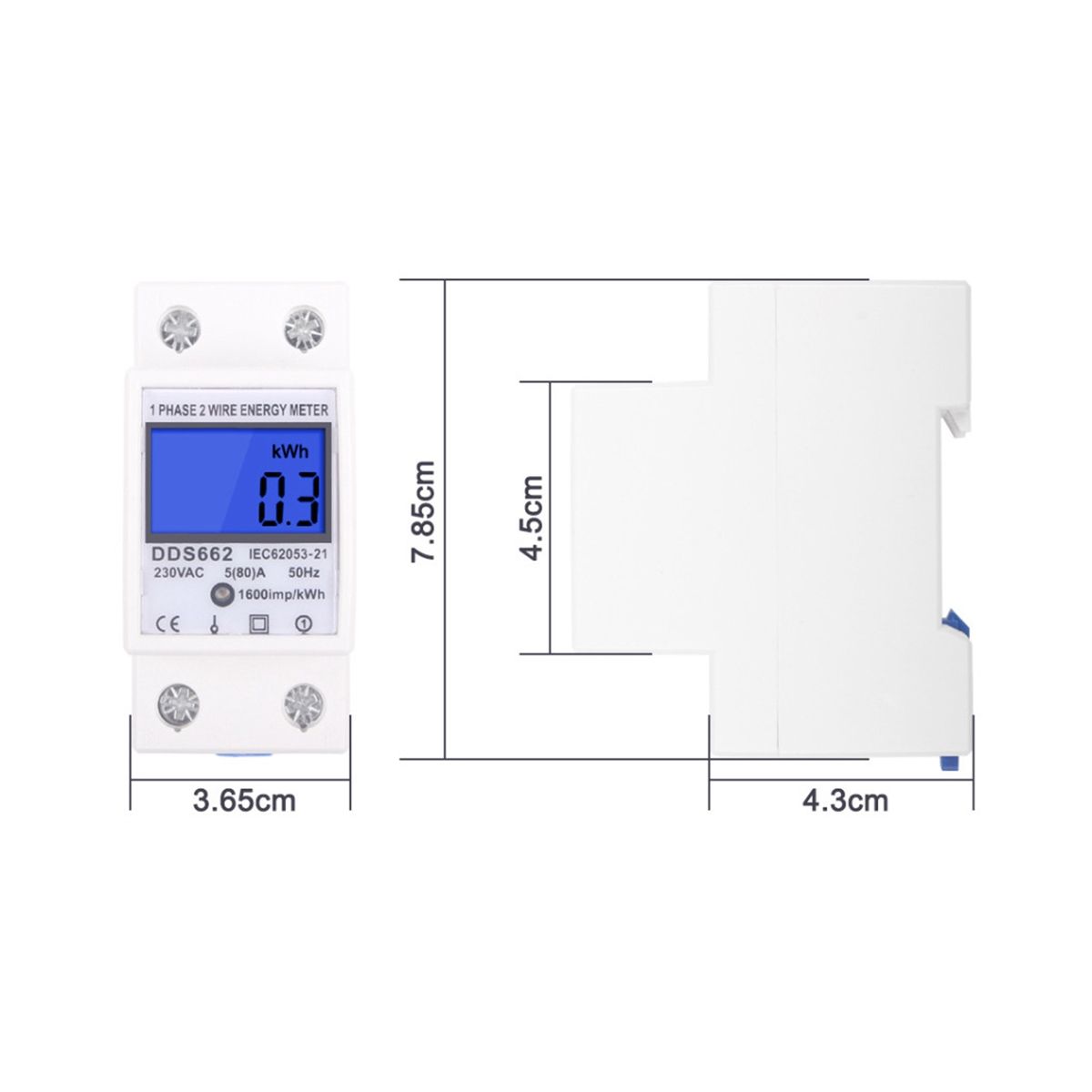

Pole Width 175mm07in
Functions Display electricity voltage current frequency power factors
Voltage 200-250VAC
Current 01-80A
Energy 01-999999 KWH
Power 01-17000W

Package Contents
1 x Electronic Energy KWh Meter

Only the above package content other products are not included
Note Light reflection and different displays may cause the color of the item in the picture a little different from the real thing The measurement allowed error is - 1-3cm

What's In the Box

1 x Electronic Energy KWh Meter
