E688 2D Desktop Barcode Reader With Big Windon 1D 2D QR Barcode Scanner Suitable For Logistics Supermarket Warehouse Prod

• Physical characteristics

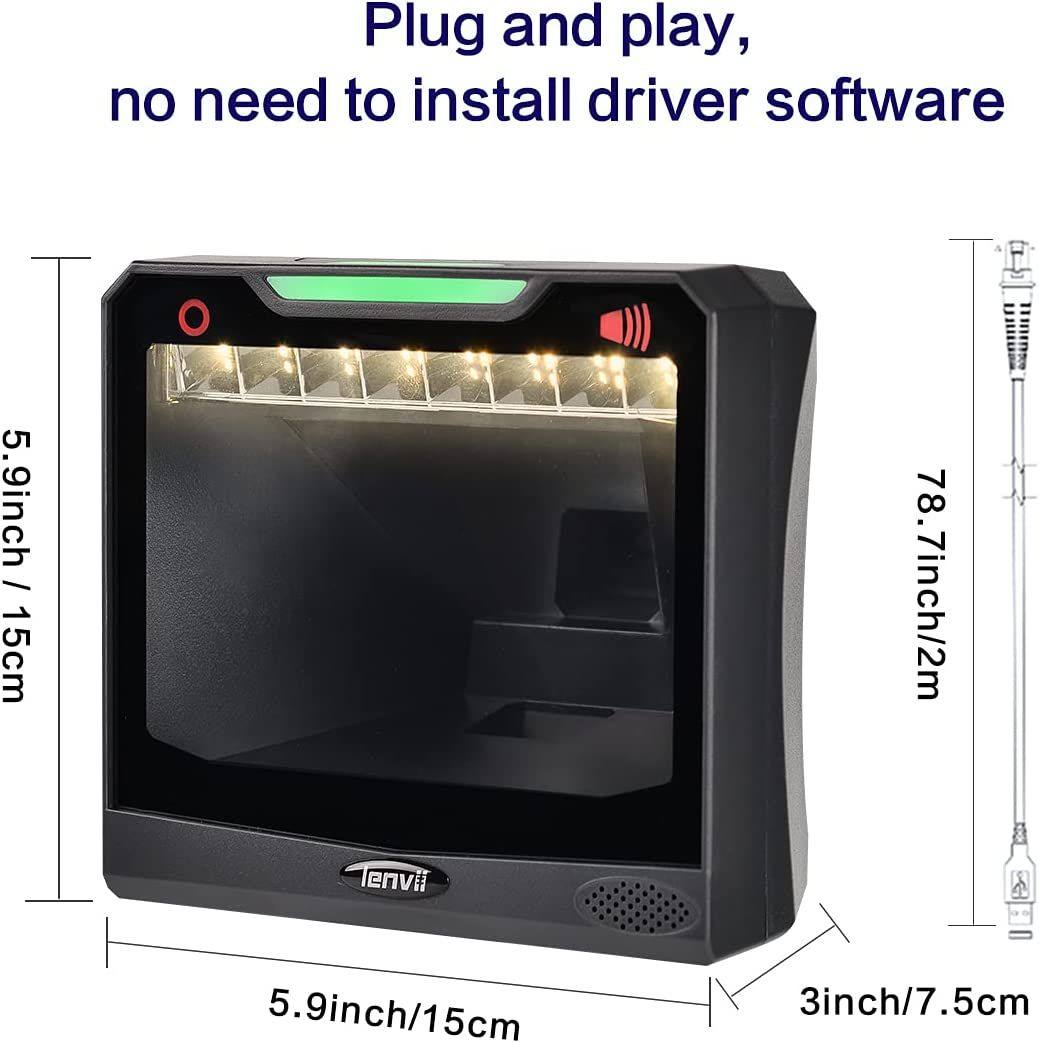

1. Dimensions: 151mm x 142mm x84mm
2. Weight: 437g
3. Voltage: 5 ± 5% v
4. Stand by current: 190ma
5. Starting current: 380mA
6. Working current: 240mA
7. Performance characteristics
8. Sensor pixel image (pixels): 1280 pixels (H) x 800 pixels (V)
9. Light source: warm yellow LED
10. Field of view angle: 44 ° (H), 23 ° (V)
11. Roll / pitch / yaw: 360 ° (roll), ± 65 ° (skew), ± 65 ° (pitch)
12. Print contrast: 20% minimum reflective difference
13. Interfaces supported: USB
14. Motion tolerances: > 0.4m/

• Decoding capability

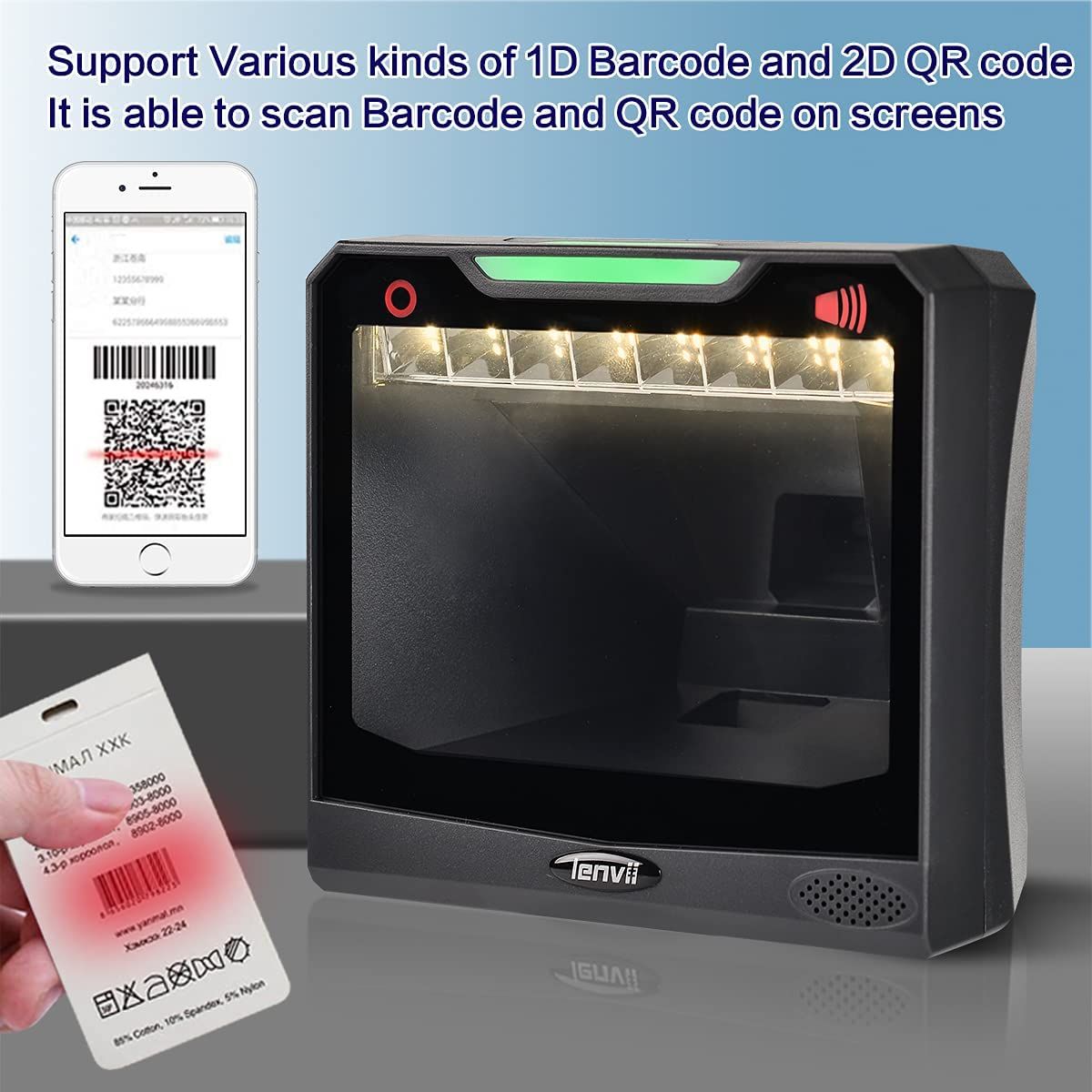

1. One dimensional barcode / 1-D: Codabar, code 39, code 32 Pharmaceutical (paraf), interleaved 2 of 5, NEC 2 of 5, code 93, straight 2 of 5 industrial, straight 2 of 5 IATA, matrix 2 of 5, code 11, code 128, gs1-128, UPC-A, upc-e, EAN / jan-8, EAN / jan-13, MSI, GS1 DataBar omnidirectional, GS1 DataBar limited, GS1 DataBar expanded, China Post(Hong Kong 2 of 5)、Korea Post
2. 2D barcode / 2-D: PDF417, QR code, matrix 2 of 5, MicroPDF417, Australian Post, Canada Post, Japan Post, MaxiCode, codablock, Aztec, Dutch post, DataMatrix, etc
3. Minimum resolution: ≥ 4mil
4. User environment parameters / user environment
5. Operating temperature: - 20 ° C to 60 ° C
6. Storage temperature: - 30 ° C to 70 ° C
7. Humidity: 5% to 95% relative humidity, non condensing
8. Shock specifications: 8 g r.m.s., from 10 to 500 Hz, 2 hours per axis, 3 axes
9. Ambient light immunity: 0-100000 lux
10. Decode ranges code39 (13mil): 0mm-240mm code39 (5MIL): 0mm-120mm

What's In the Box

• E688 Scanner*1
• USB cable*1
• Product manual*1
