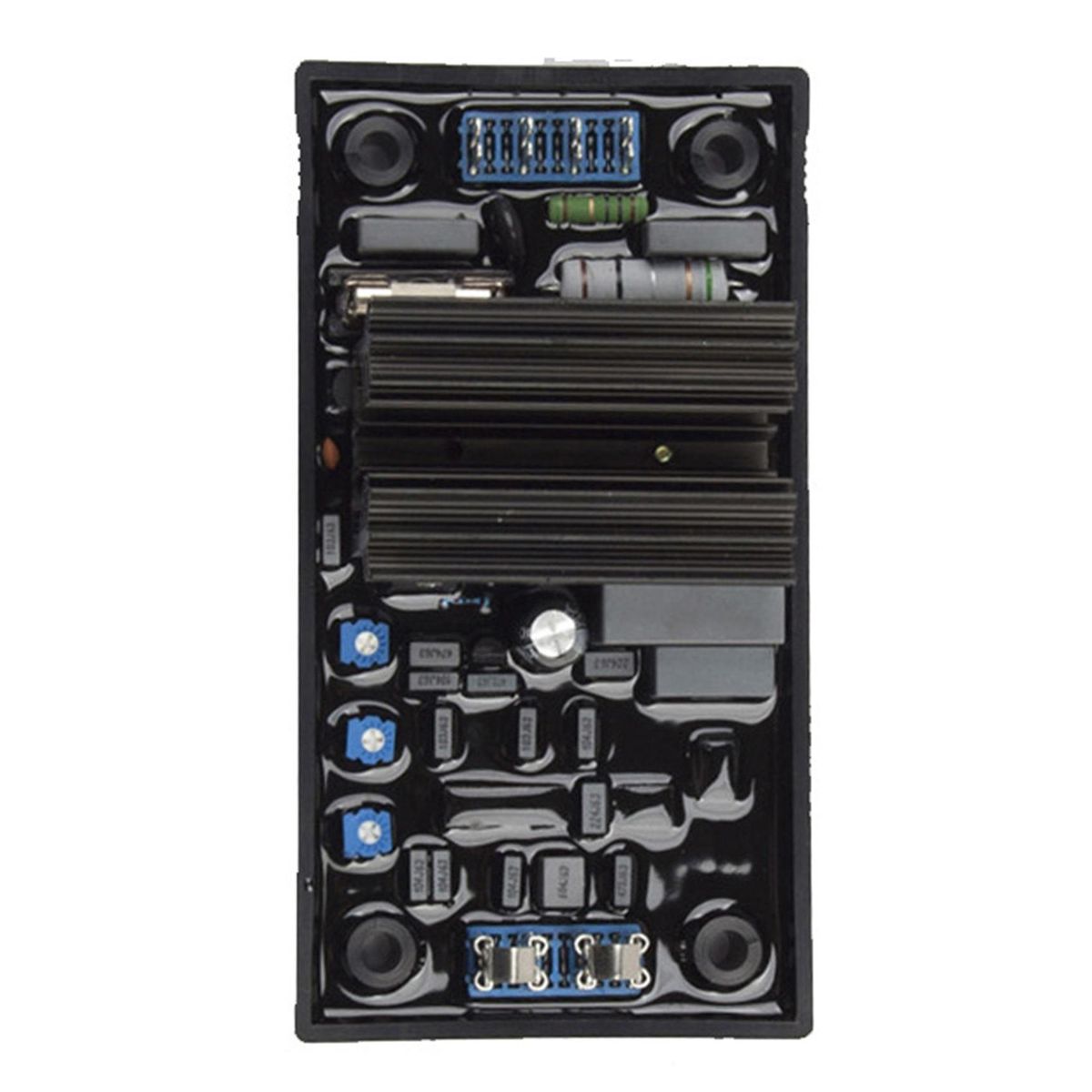

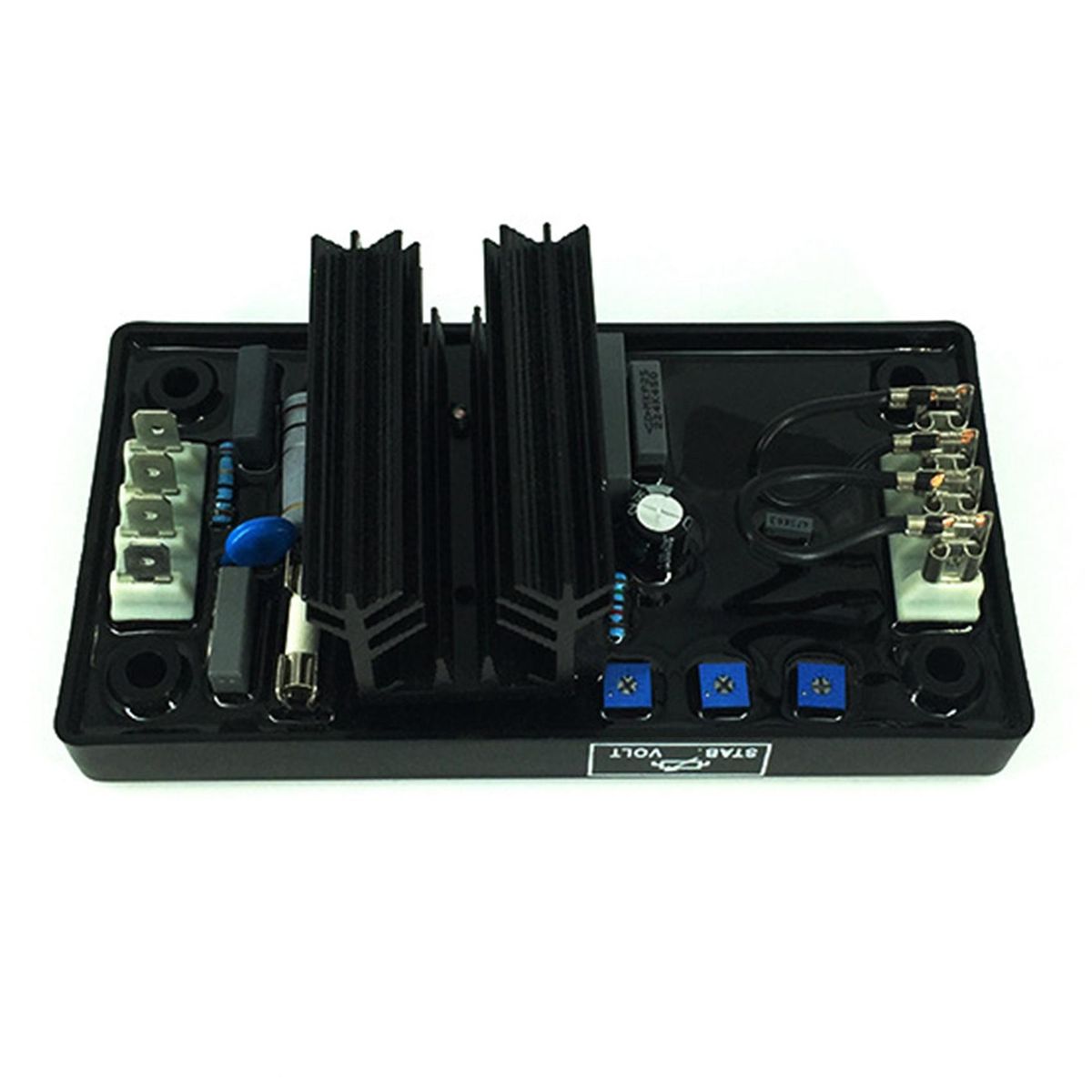

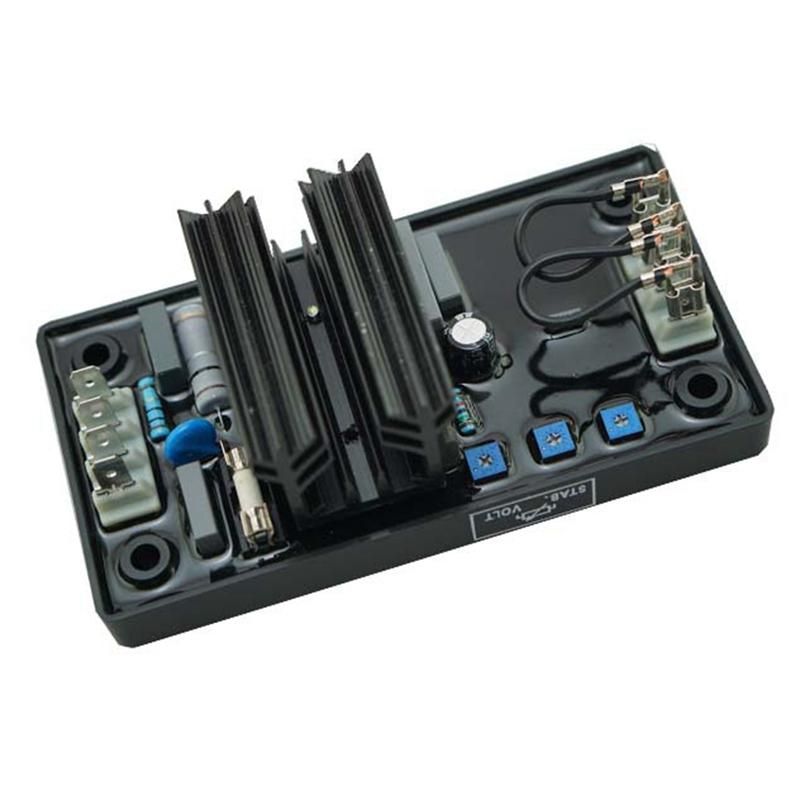

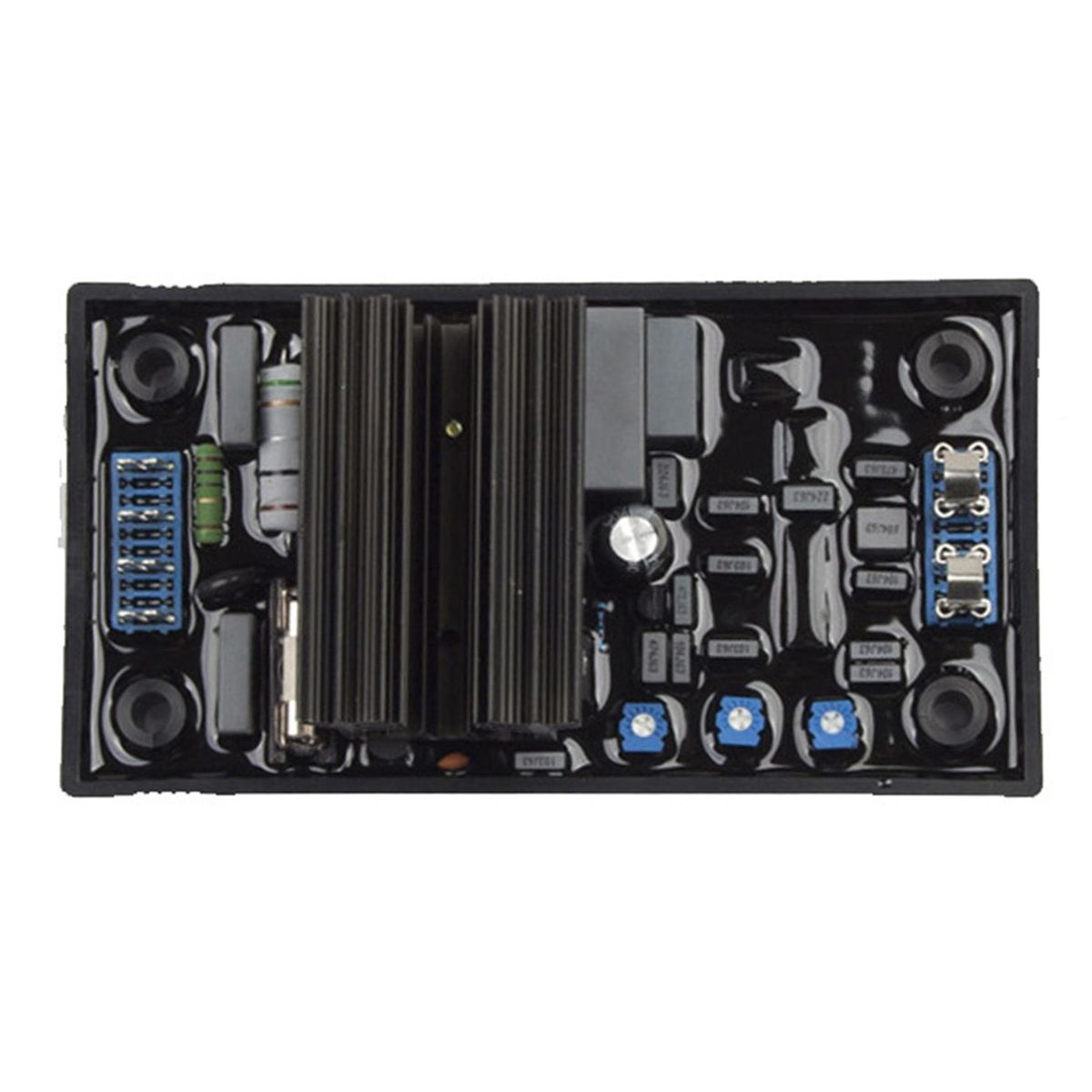

R230 AVR Generator Automatic Voltage Regulator Module Universal AVR Generator

It is small size light weightresistant and strong
With the functions of Low-frequency protection and voltage slowly establishedEMI suppression circuit
Suitable for generatorscan adjust the voltage slightly to stabilize the output voltage of the generator
When the voltage is 4 v 25 hzthe Voltage will be set automatically

Model R230
Frequency50-60Hz
Voltage input85-139VAC
Output Voltagemax 63VDC at 100VAC input
Currentcontinuous 8A dc intermittent 10A for 10 secs
Resistance15 minimum
Regulation-05%
Voltage -upResidual voltage at avr terminal≥5VAC
External Voltage Adjustment-10% with 1k ohm 1 watt trimmer
colorBlack
MaterialMetalPC

Package Contents
1 x Voltage Regulator

Only the above package content other products are not included
Note Light reflection and different displays may cause the color of the item in the picture a little different from the real thing The measurement allowed error is - 1-3cm

What's In the Box

1 x Voltage Regulator
