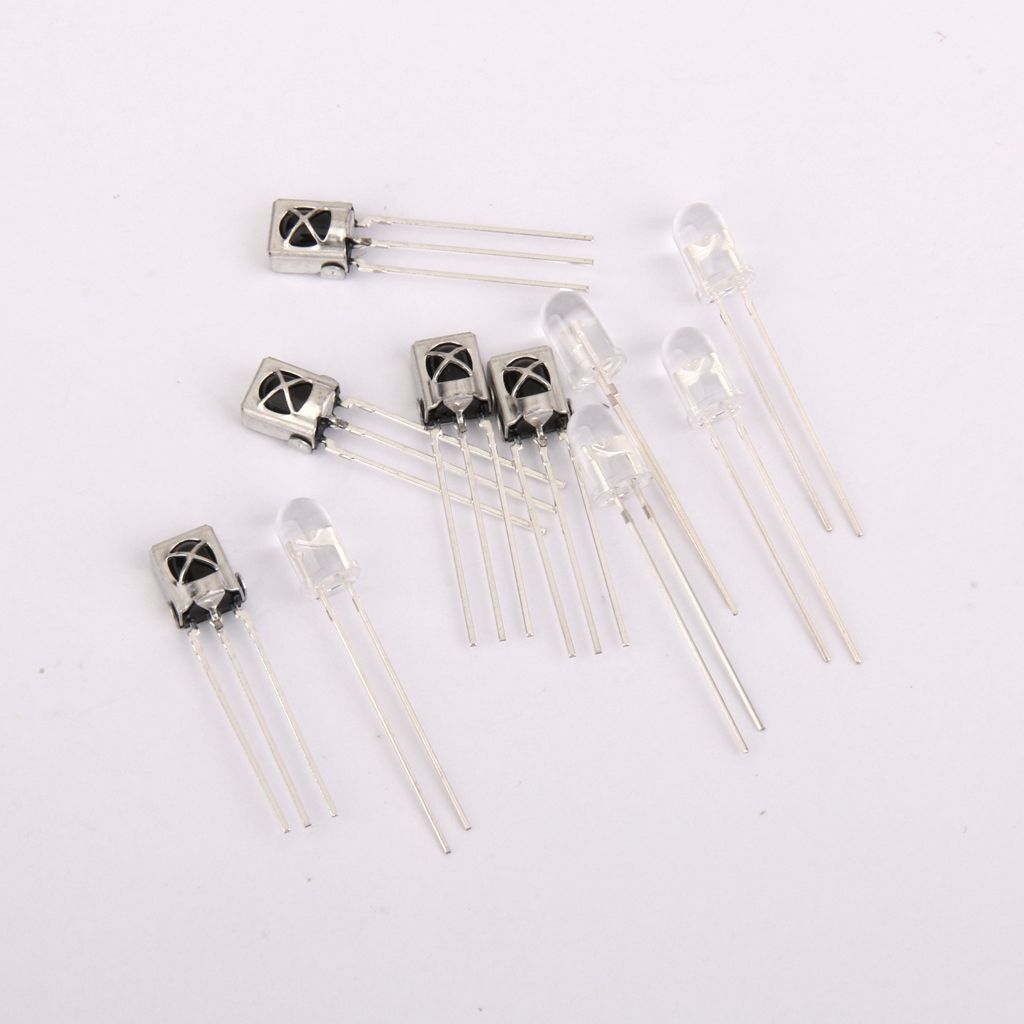

3 Leg Infrared Diode LED IR Transmitter And Receiver Tube 5 Pairs For

Dear customers, welcome to my store. We are an online store where you can purchase all your electronics, home appliances, kiddies items, fashion items for men, women, and children; cool gadgets, groceries, automobile parts, and more on the go. Our store is a star store dedicated to creating high-quality and practical products, allowing you to enjoy a better lifestyle. Your support is our greatest driving force. All the goods in our store are sold at the lowest price, and the quality is guaranteed. If you need it, please rest assured to buy, we will provide you with a comfortable shopping experience every time. As well we are launching new products every day, please follow our store and pay more attention, you will get the information of our latest products as soon as possible. Clicking on the seller information to enter our store to buy what you needs, after placing an order, we will deliver the goods for you at the frist time. Thank you and have a nice day!

Description:

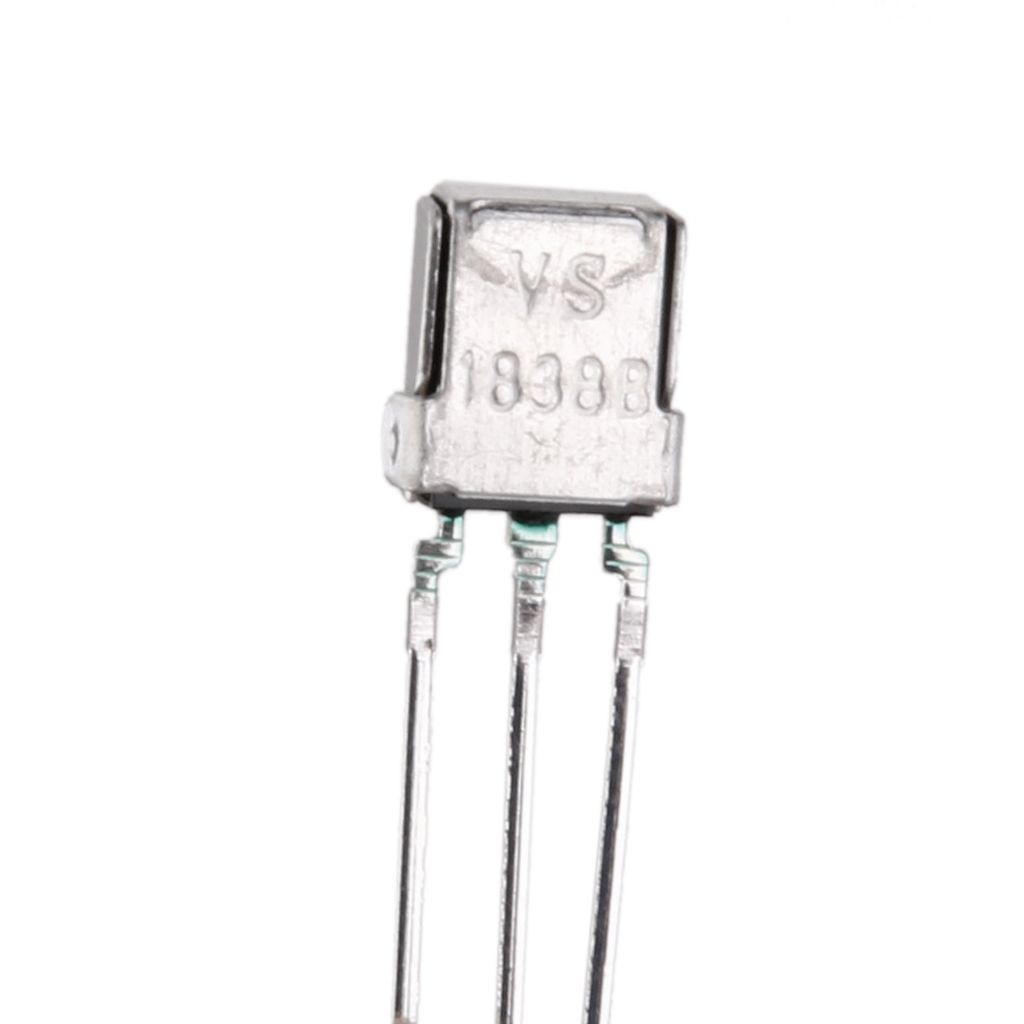

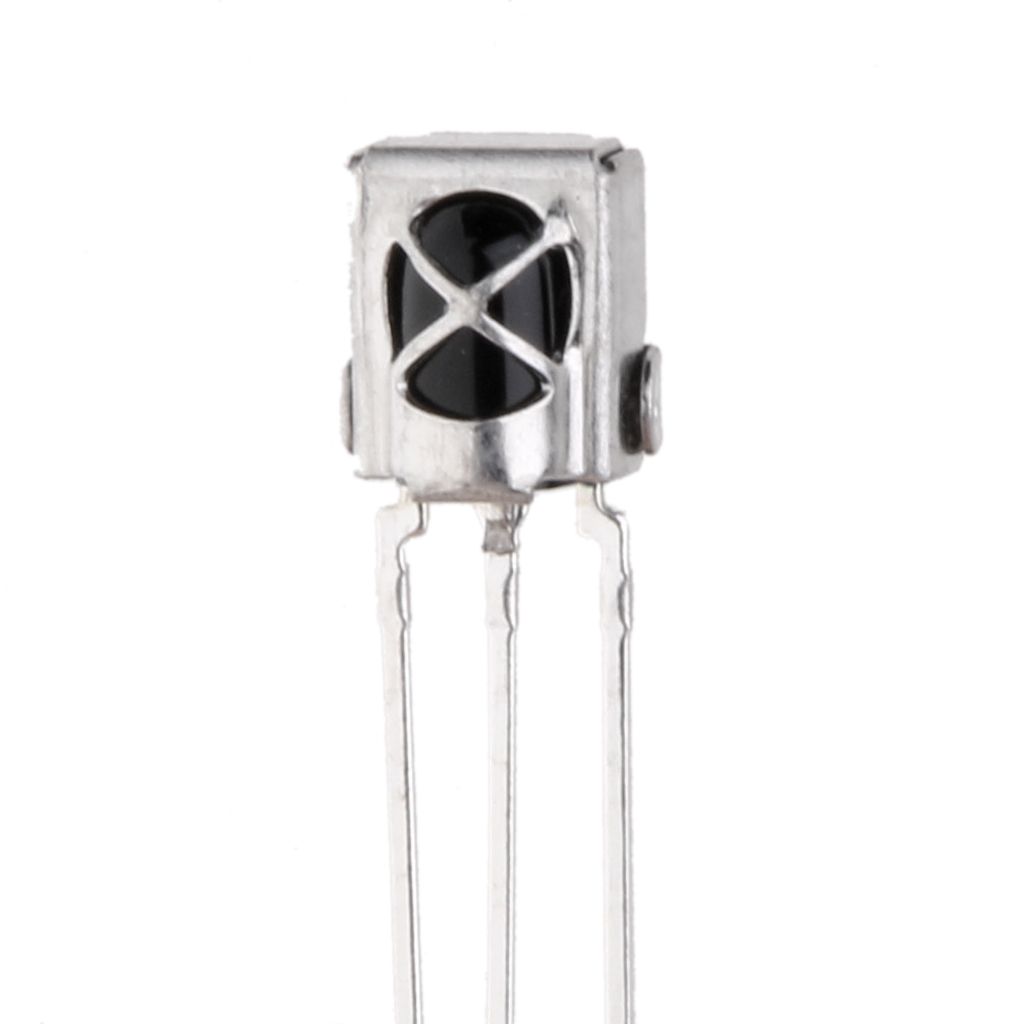

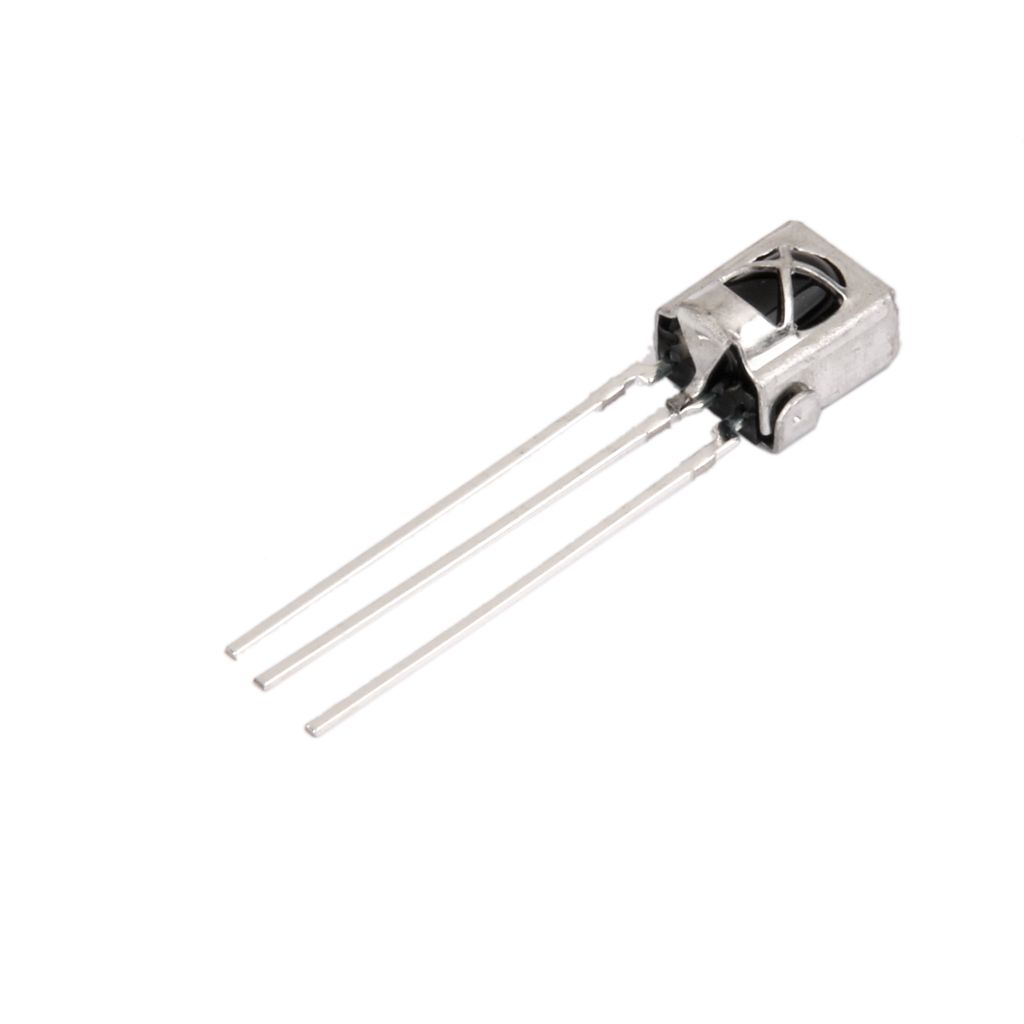

Infrared Receiver:

• Model: CHQ1838
• Operating Voltage: 2.7-5.5V
• Receiving Range: 15-18M
• Pin Pitch: 2.53mm
• Power: 180mW
• Pin Length: 22mm
• Size: Approx. 6.7*7.6*4.5mm
• Use of environmentally friendly -free materials enclosed internal display, built-in infrared receiver dedicated IC, strong anti-interference, can work under 500LUX light intensity

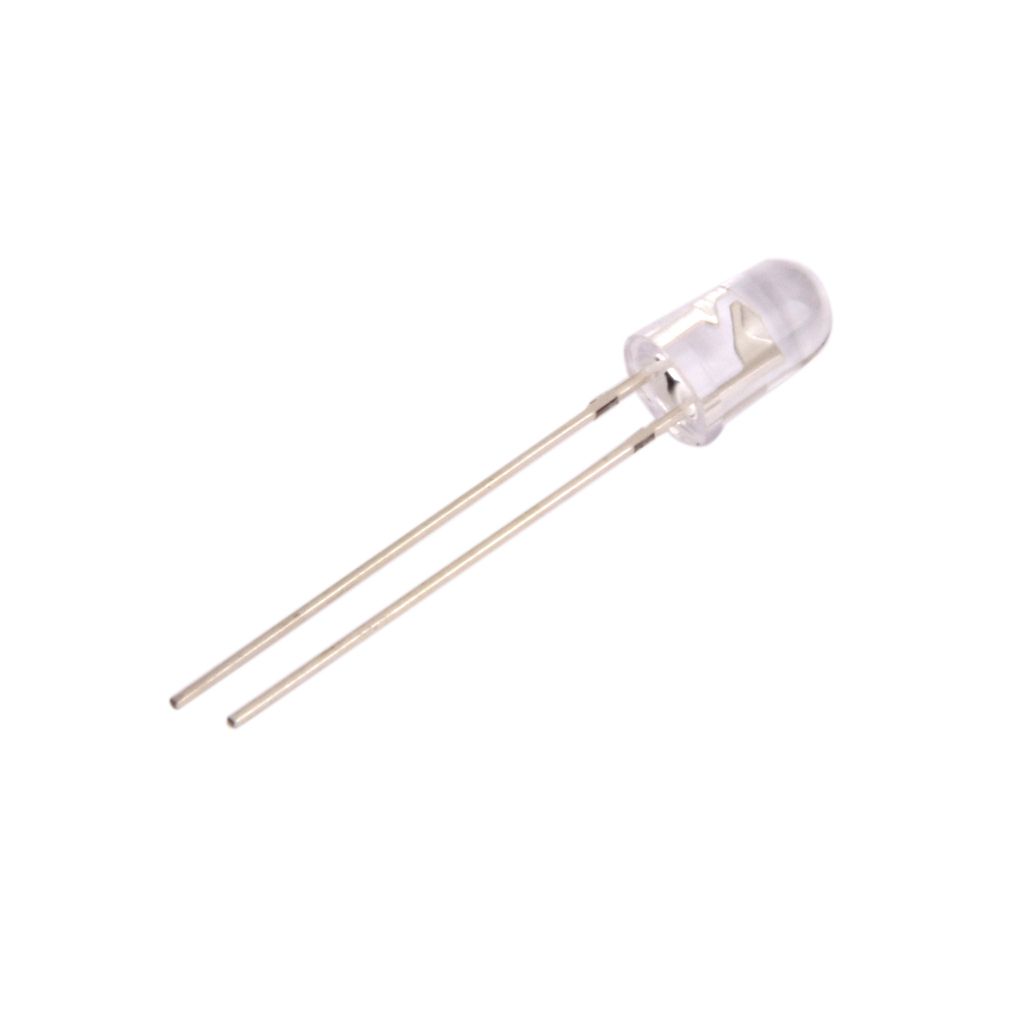

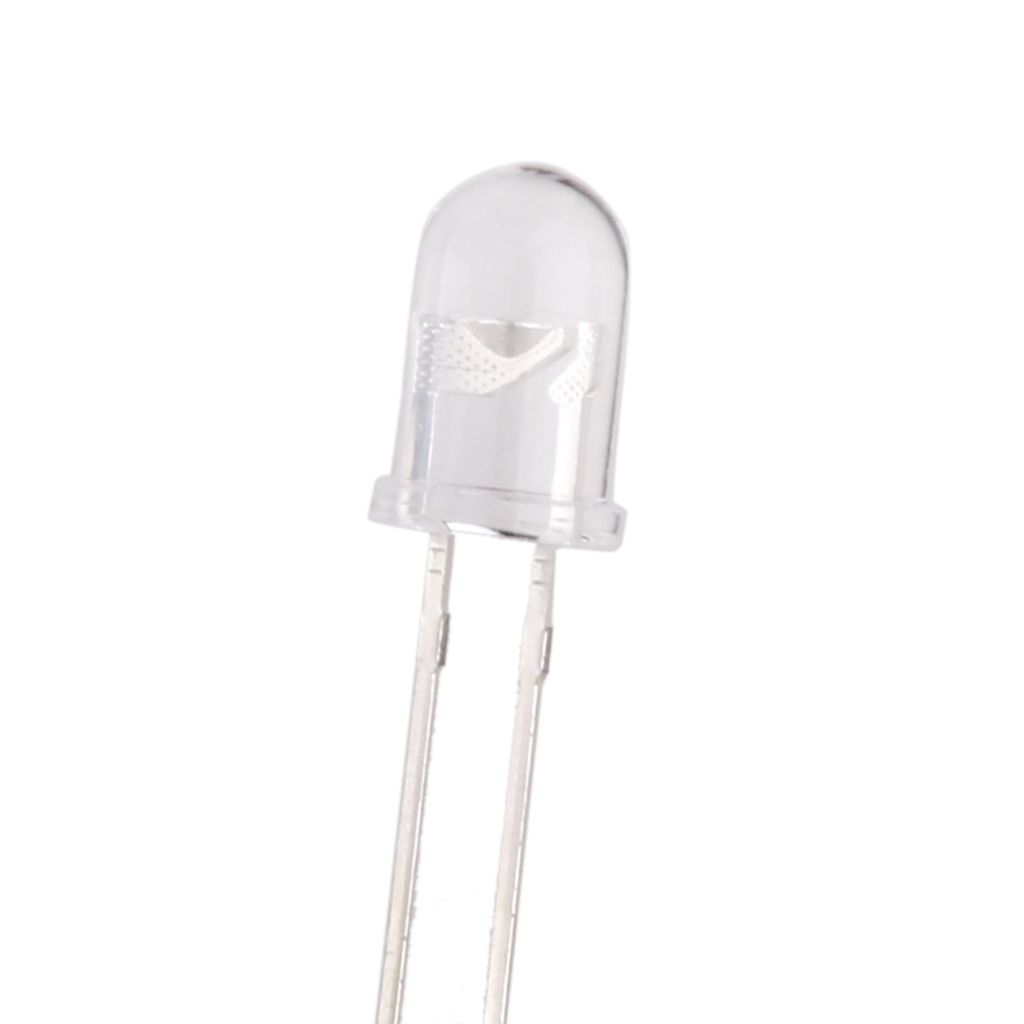

Transmitting Tubes:

• Current: 20mA (constant current)
• Emission Angle: 20°/45°/60°
• Voltage(VF): 1.1-1.4V
• length (WD): 940nm
• Transmitting Distance: 12--15M
• Reverse leakage value: less than 5uA
• Span of use: 80,000-100,000 hours
• Widely used in Household electrical appliances, TV, audio, air conditionor, toys and infrared remote control receiver.

Package Includes:

• 5 Pairs Infrared Receiver Transmitting Tubes

Infrared Receiver; Transmitting Tubes

Key Features

Infrared Receiver:Model: CHQ1838
Operating Voltage: 2.7-5.5V
Receiving Range: 15-18M
Pin Pitch: 2.53mm
Power: 180mW

What's In the Box

5 Pairs Infrared Receiver Transmitting Tubes
