1.8 Inch 160X128 Colorful Display Multi-Functional TFT Backlight Transistor LCR-TC1 Tester for Diode Triode Capacitor

1. It can be widely used to detect NPN and PNP transistor, capacitor, resistor, diode, triode, N-channel and P-channel MOSFET, IGBT, JFET, triac and battery etc.
2. One button operation, automatically detect and shutdown, and you can press the multi-functional button to close the detector too.

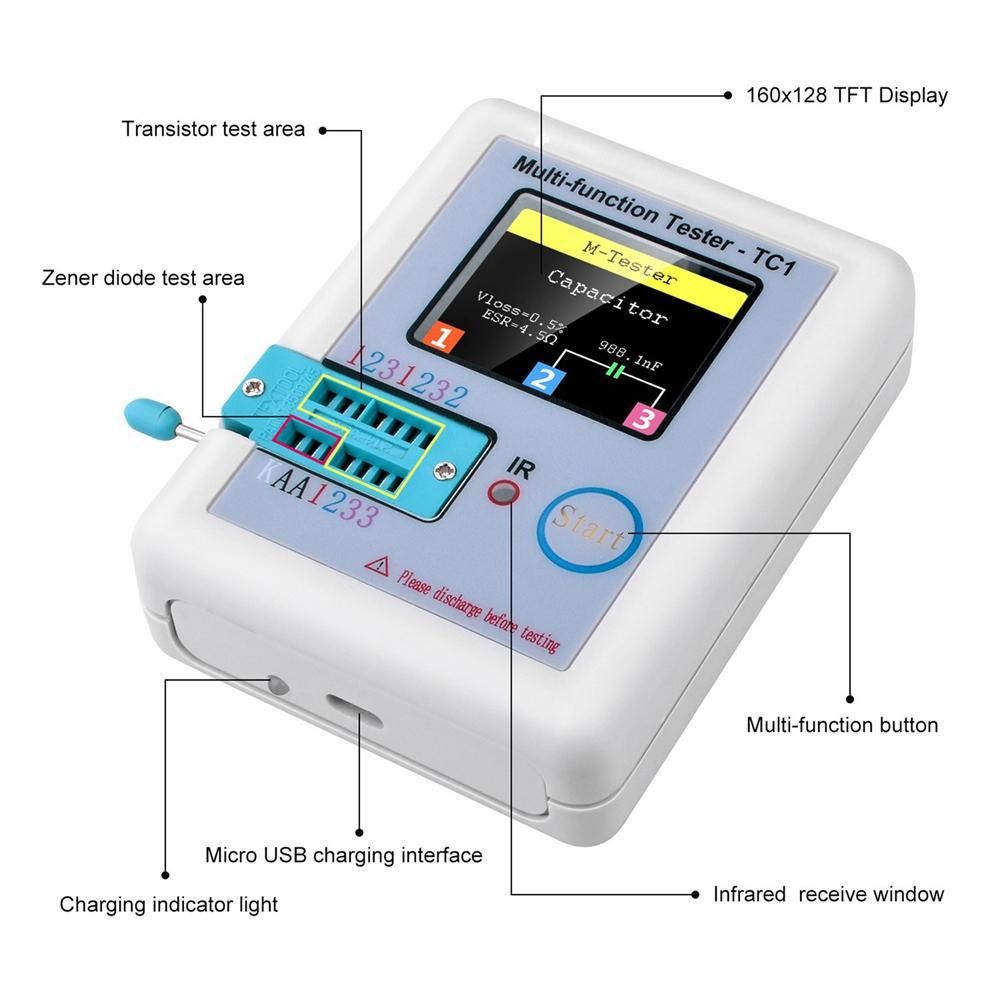

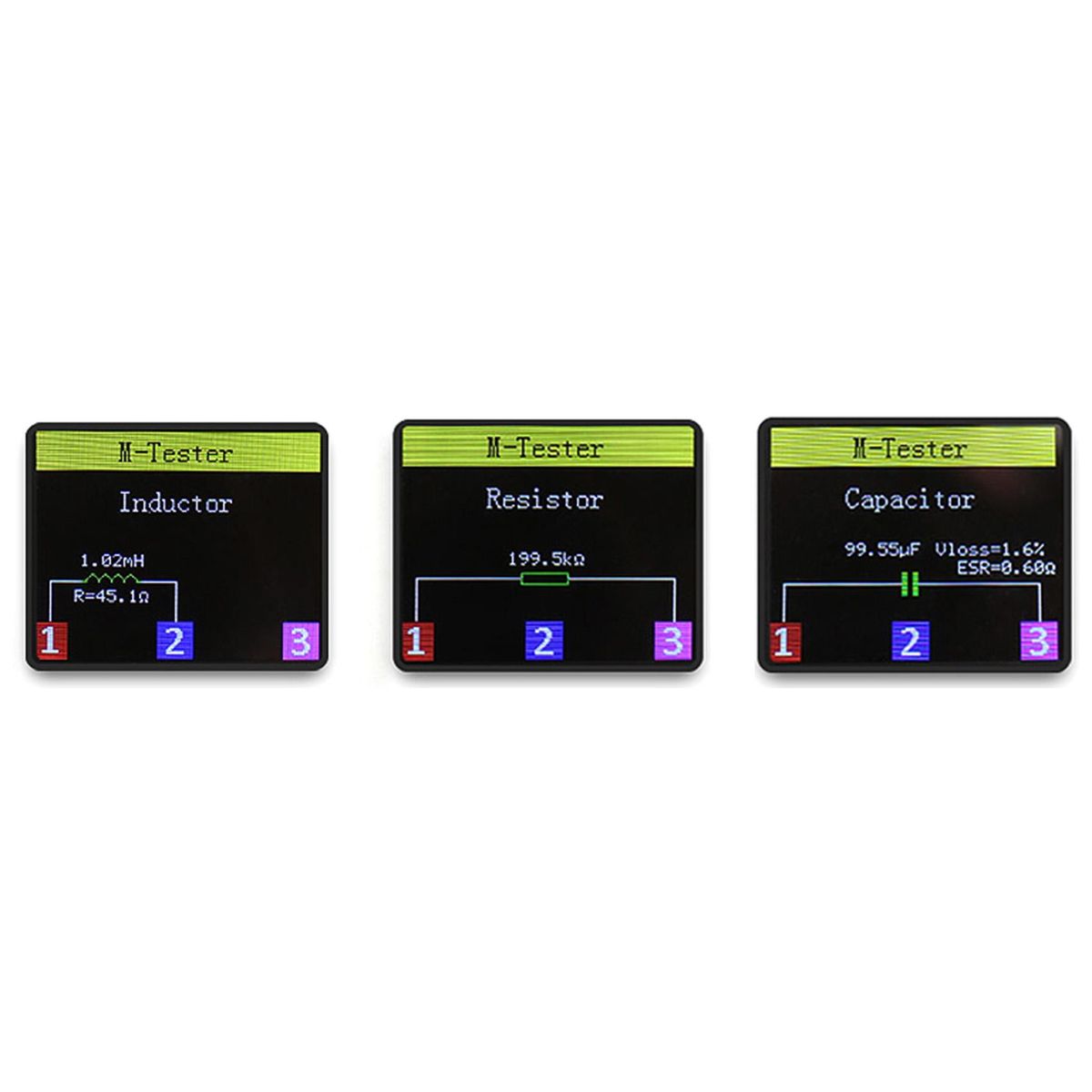

3. Put the pins of component in corresponding area, then dial the little handle and the detector will test it automatically, finally the results will display on the back light TFT screen clearly.

Display: 1.8 inch TFT Screen
Diode Range: less than 4.5V
Zener Diode : Transistor Detect Area: 0.01-4.5V
Zener Diode Detect Area: 0.01-30V
Triac Range: IGT less than 6mA
Capacitance: 25pF-100mF
Resistor: 0.01-50M ohm
Inductance: 0.01mH-20H
Battery: 0.1-4.5V
Power Mode: Rechargeable Lithium Battery (Include)

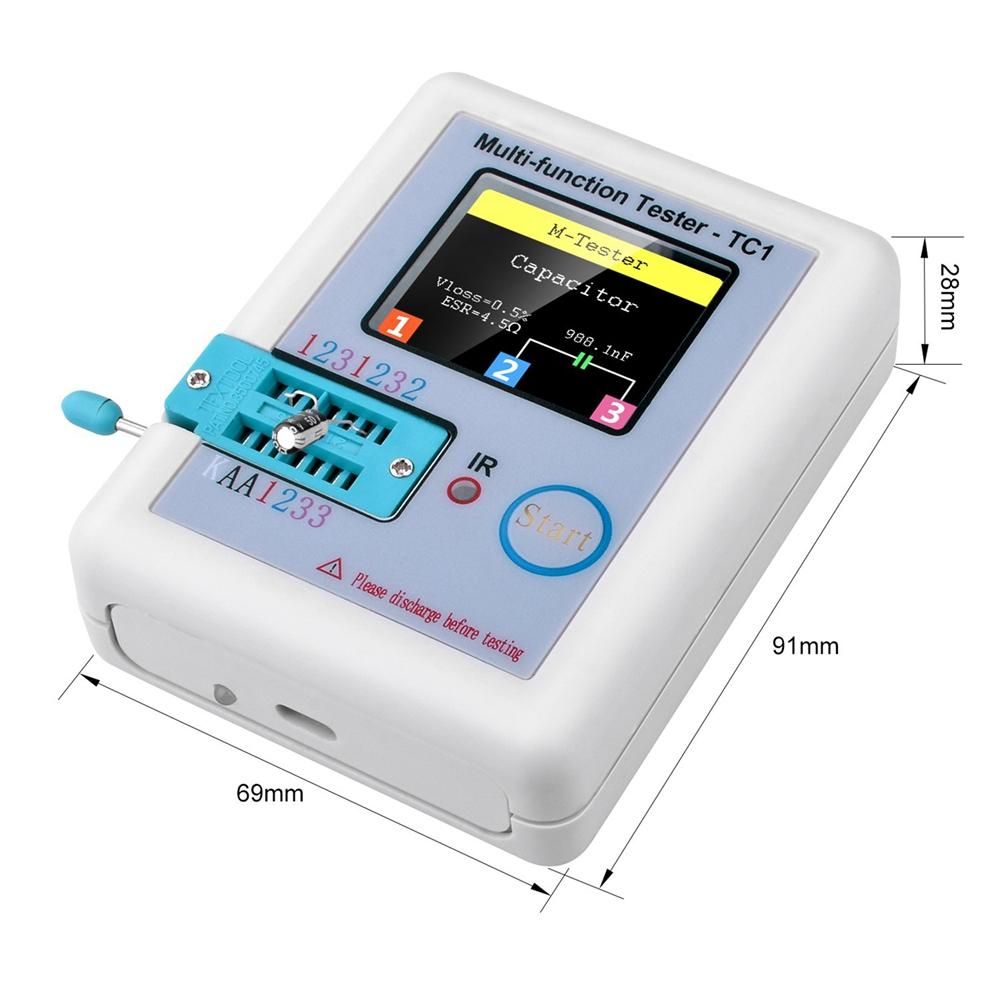

Size: Approx. 90 x 50 x 25mm
colour: as shown
Material: plastic

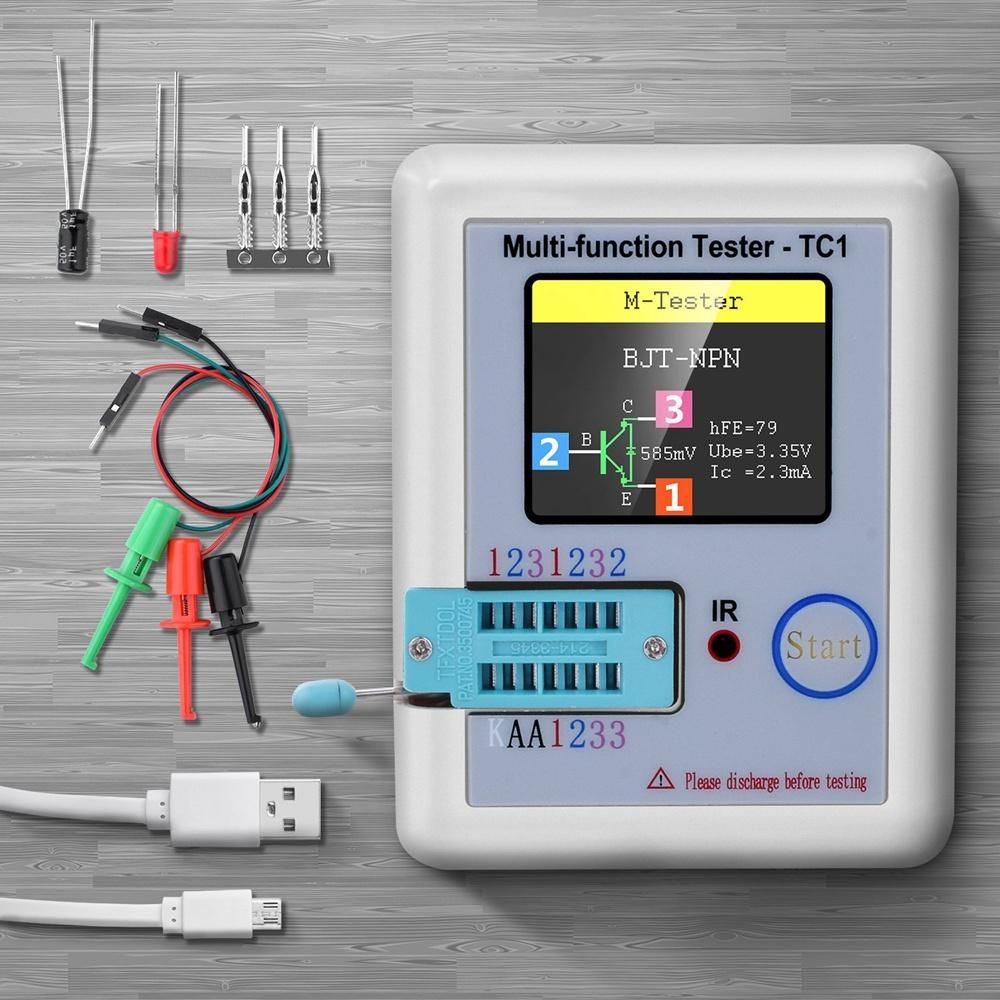

Package Contents:
1 x Multi-functional TFT Transistor tester
1 x Electronic component set(random colors style, don't accept the specified color style)

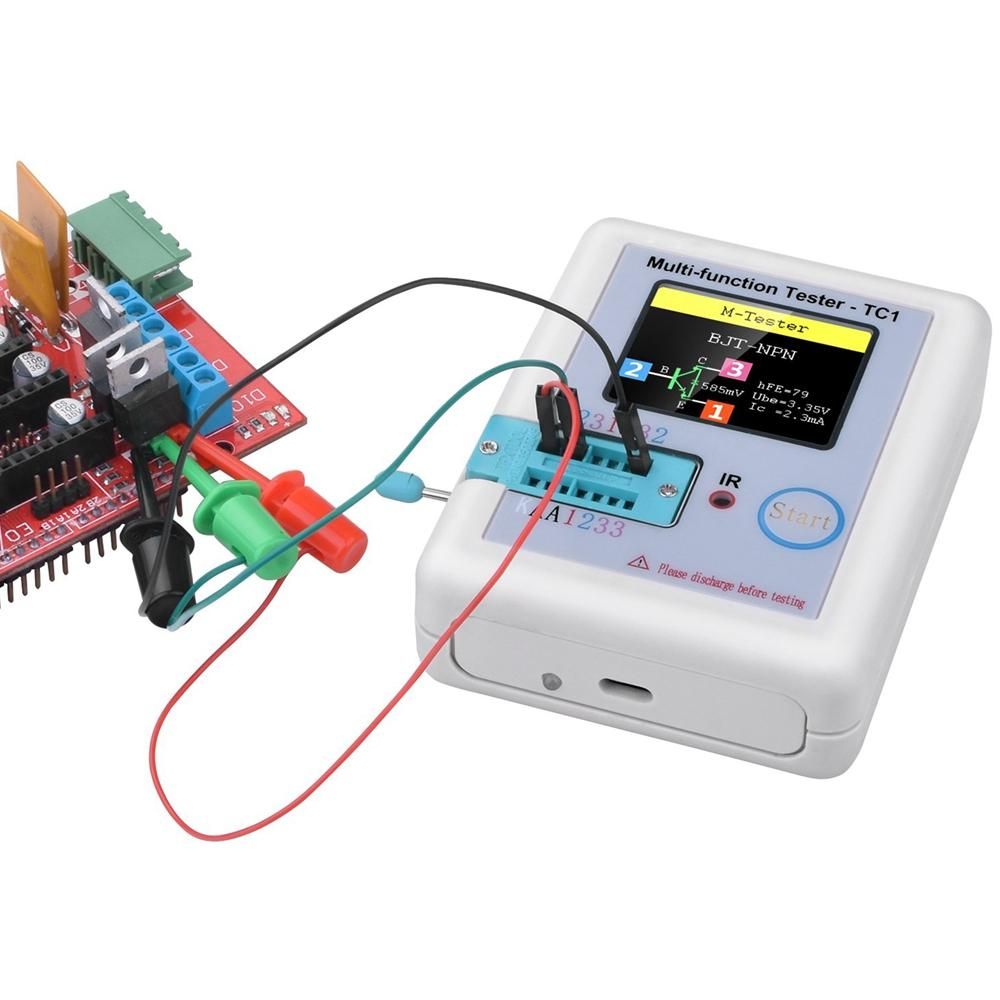

3 x Test hooks
1 x Cable

Only the above package content, other products are not included.
Note: Light shooting and different displays may cause the color of the item in the picture a little different from the real thing. The measurement allowed error is +/- 1-3cm.
