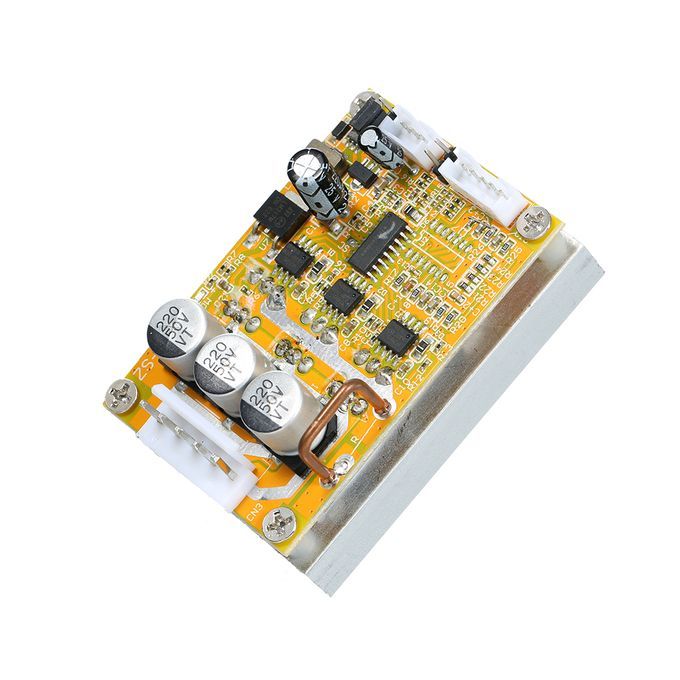

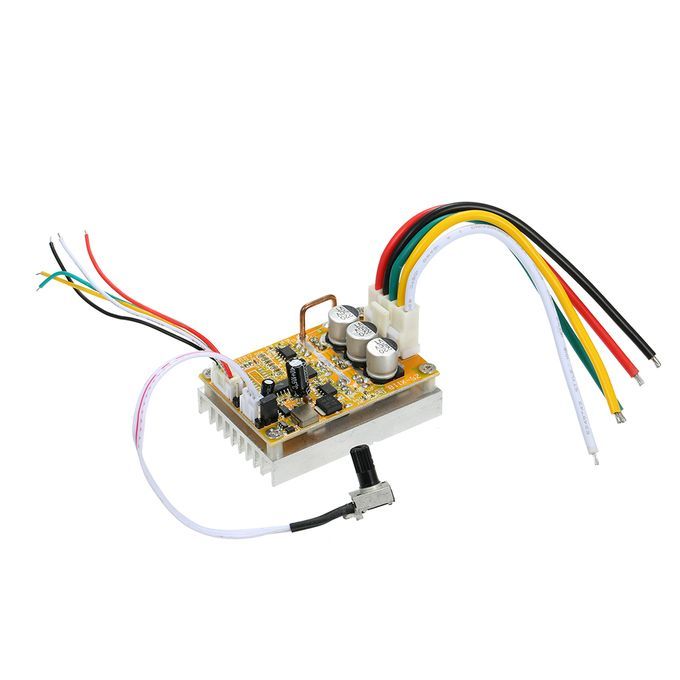

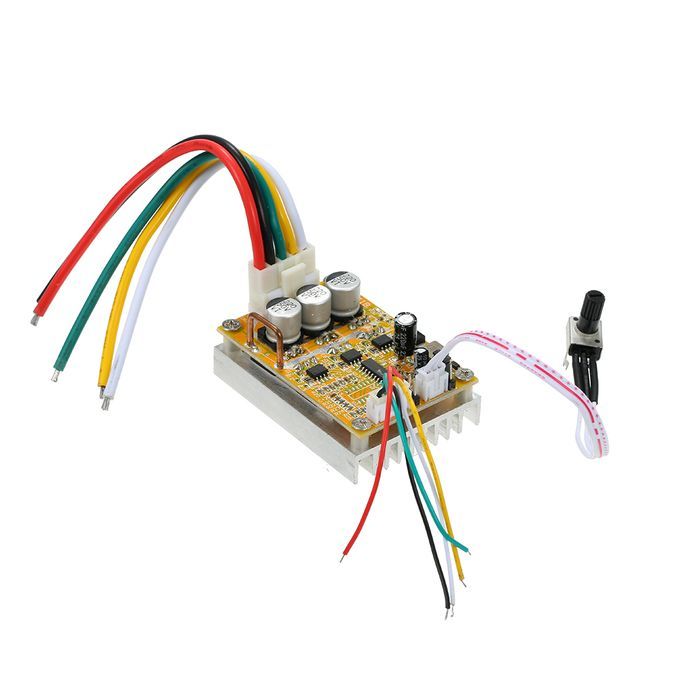

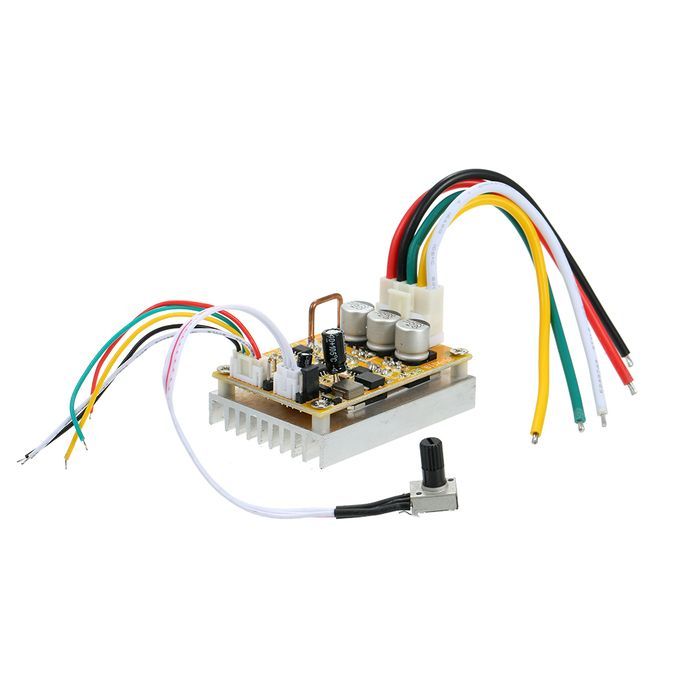

350W 5-36V Motor Driver BLDC Brushless Controller

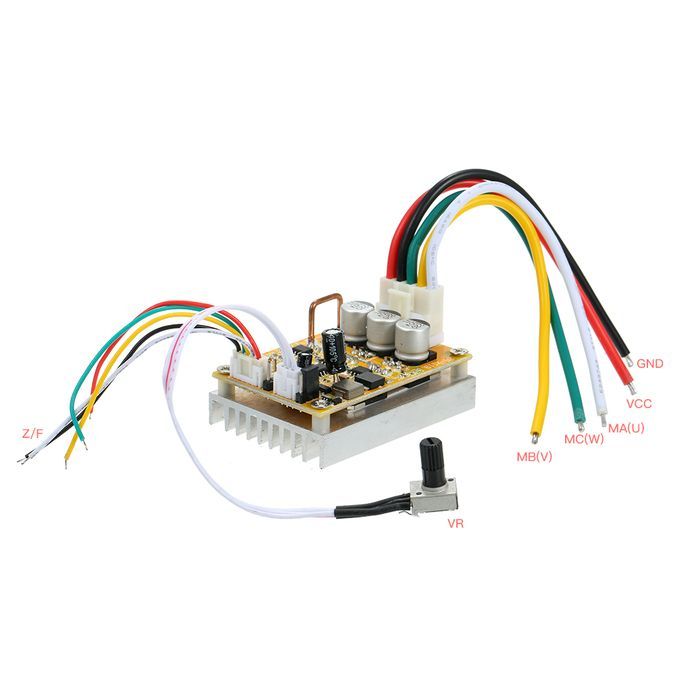

MA MB MC connecting motor

5V GND Supply

VCC GND external supply line

SC signal output

Z/F Connect line 5V or GND to reverse switch

VR speed signal input



Features:

Adopt the SMT process, the quality is stable and reliable.

With reverse switch. Control your machine conveniently.

Equipped with cooling fan and featured with good heat dissipation.

Easy to use. Control the switch when on. Save your time greatly.

Wide Voltage High .



Specification:

Working voltage: 5-36V

Maximum current: 16A

Maximum : 350W

Over current protection: YES

Size: length 63mm x width 45mm x height 27mm

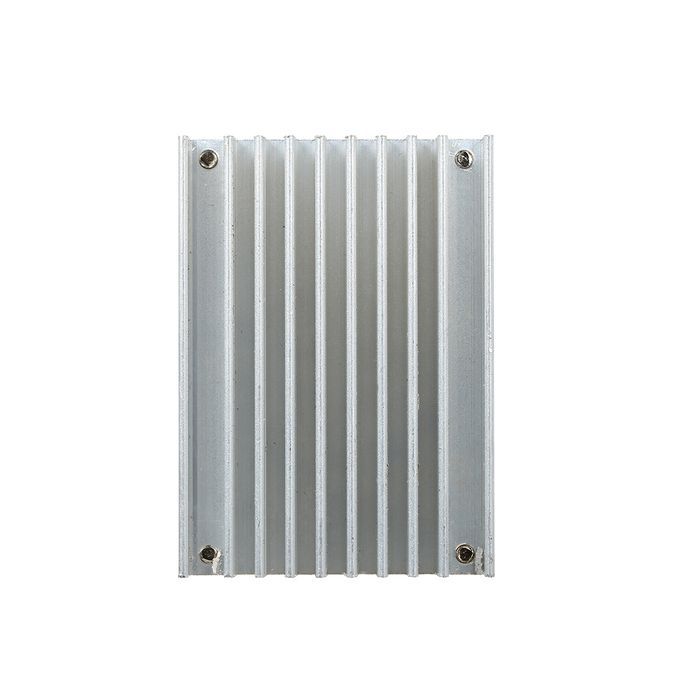

Material: Aluminium Alloy

Item size: 6.2 * 4.3 * 2.6cm / 2.44 * 1.69 * 1.02in(L * W * H)

Item weight: Approx. 89g / 3.14oz

Package size: 14.6 * 10.2 * 3cm / 5.75 * 4.02 * 1.18in(L * W * H)

Package weight: 91g / 3.21oz

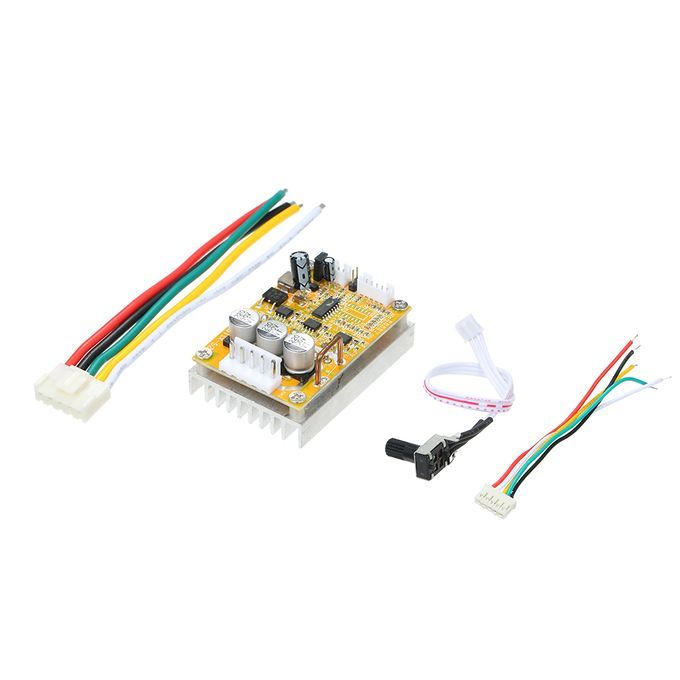

Package list:

1 * Brushless Controller Set



Note: the package without user manual.
a a a a a

Key Features

Adopt the SMT process, the quality is stable and reliable.
With reverse switch. Control your machine conveniently.
Equipped with cooling fan and featured with good heat dissipation.
Easy to use. Control the switch when on. Save your time greatly.
Wide Voltage High .
Adopt the SMT process, the quality is stable and reliable.
Easy to use
Exquisite Workmanship
Well Made
Best Choice and best discounts
Customer Care is Our Top Priority
Offer is Subject to Availability
Big Sale

What's In the Box

350W 5-36V Motor Driver BLDC Brushless Controller
