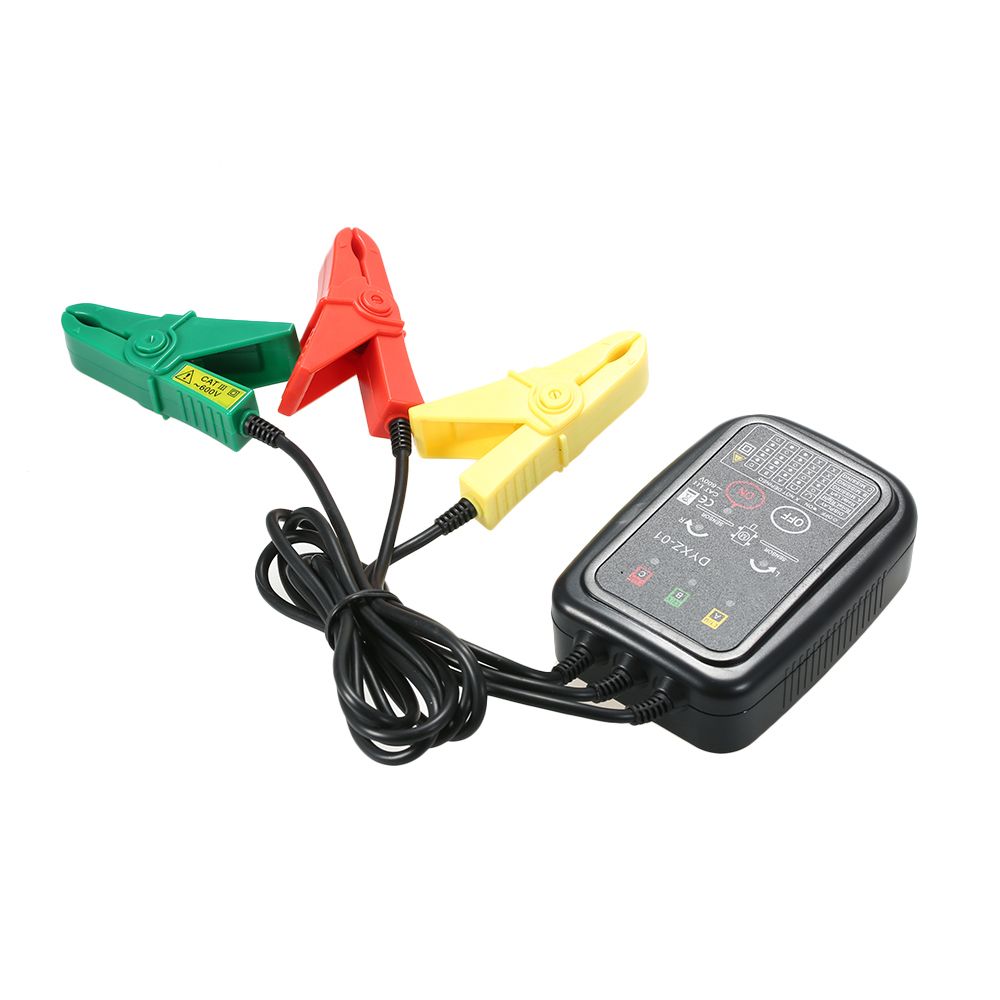

Non-Contact Phase Detector Digital Phase Sequence Tester

Features:

Multi-Function: Phase detection (normal phase, reverse phase), live line inspection, simple electricity inspection, phase loss judgment, motor steering detection, circuit breaker search, breakpoint location, and line maintenance.

LED dynamic display, intuitive and clear. Easy to read.

The phase sequence table of the three exposed clips or test pins are connected to the exposed three fire lines.

Measure mode: Non-contact clipping method. It does not need to open the wire, and does not need to touch the high voltage exposed live wire.

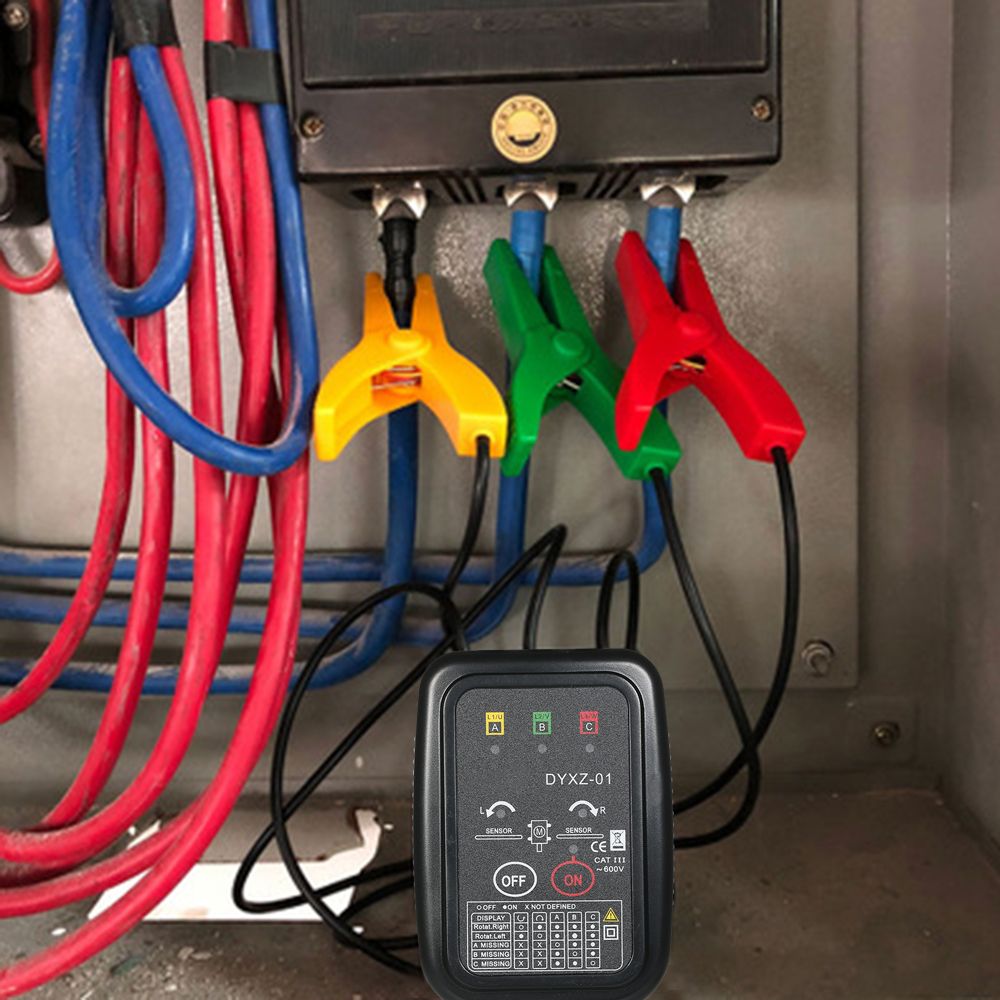

It can directly detect the phase sequence by sandwiching the three super induction high-insulation clamps to clamp the three-phase live wire insulation sheath.

Specification

Model: DYXZ-01

Measure mode: Non-contact clipping method

Frequency: 50Hz/60Hz

Live electricity range: AC70～600V，50/60Hz（Sine wave continuous input）

Measuring the highest voltage: AC600V

Clamp wire size: Outside diameter oslash;17mm

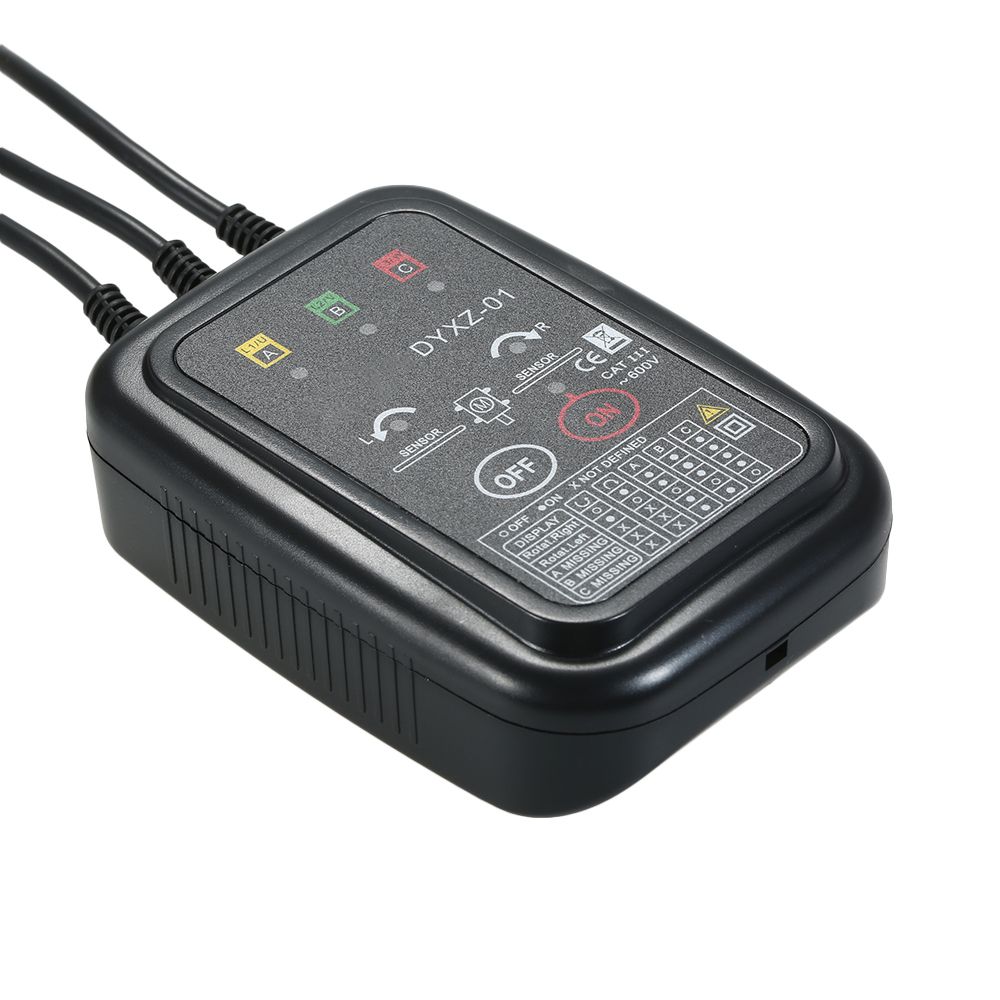

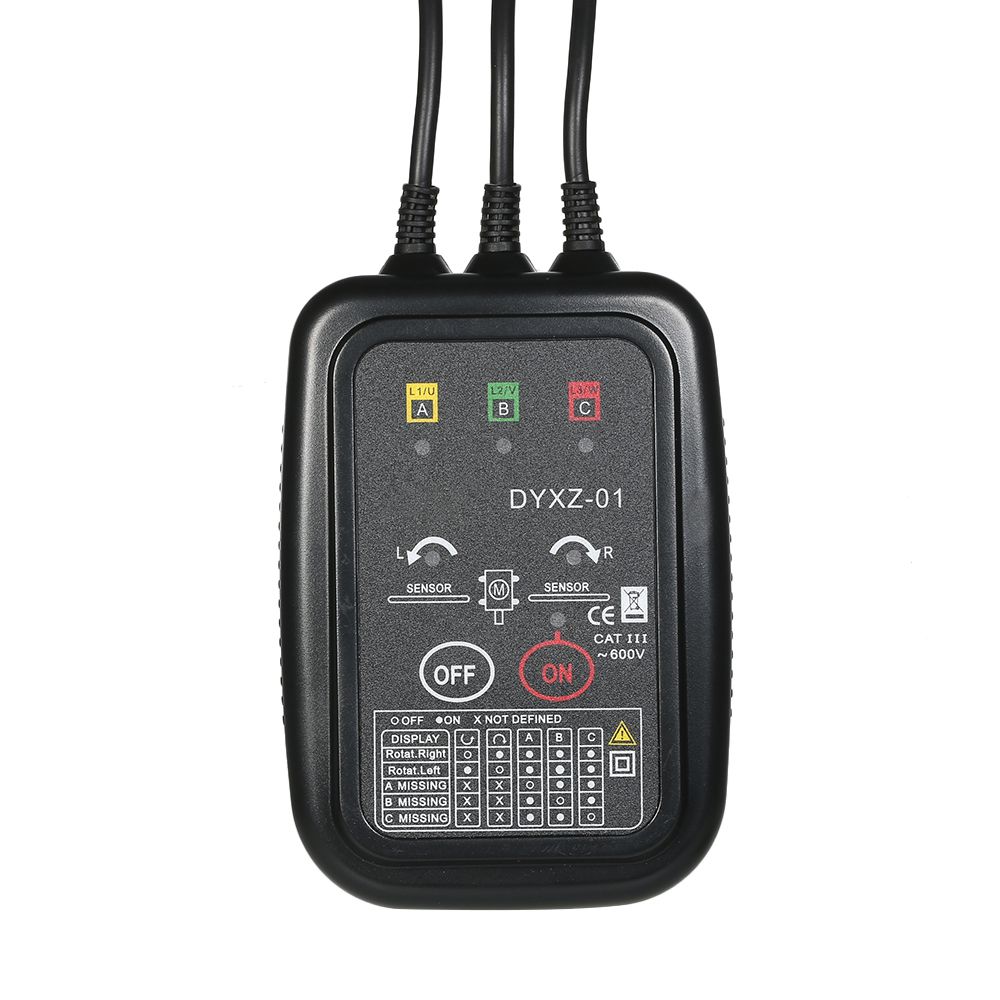

Display:

【Positive phase】R light turns on in a clockwise direction

【Reverse phase】L detection light turns on counterclockwise

【Live electricity】A, B, C lights in the voltage setting range

【Lack of phase】A or B or C lights are not lit

Motor steering:

Motor rotates clockwise: R light is on

Motor rotates anticlockwise: L light is on

Clamp lead length: 0.5m

Maximum rated power: 300mVA

Insulation strength: 5.4kVrms

Power: DC3V 2xAA 1.5V battery

Auto Power off: After 5 minutes, the meter automatically off power

Working Temperature and Humidity: -10 deg;～55 deg;; below 80%rh

Storage Temperature and Humidity: -20 deg;～60 deg;; below 90%rh

Weight: about 150g

Size: 110mm x 70mm x 30mm

Package size: 20x12x5cm

Package weight: 325g

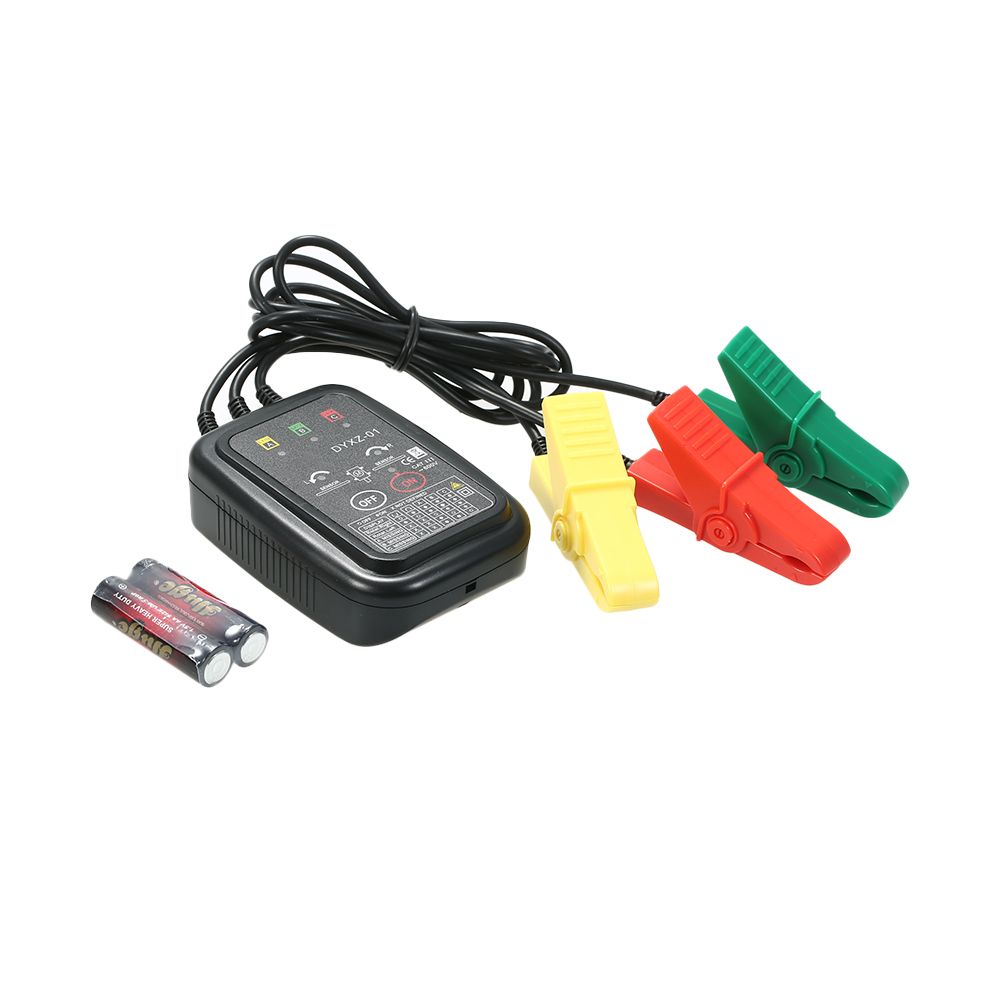

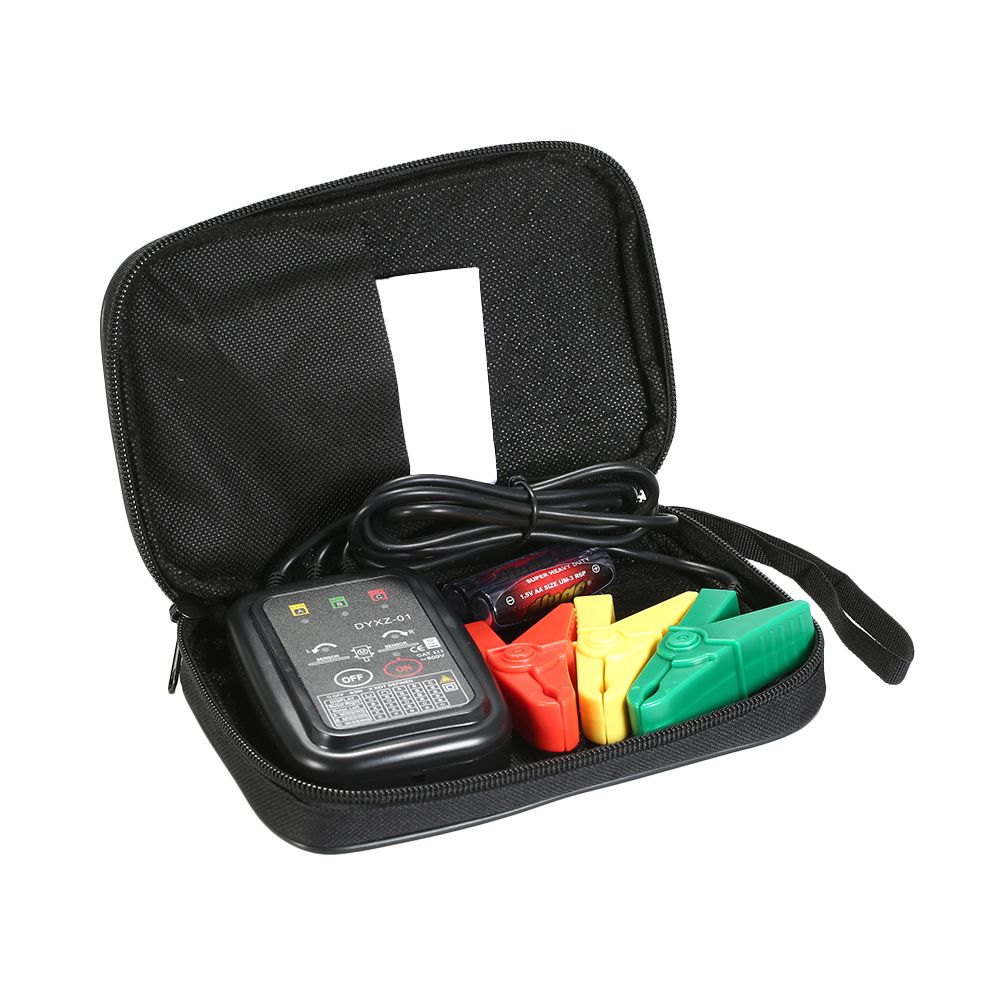

Package list:

1 x Non-contact Phase Sequence Meter

1 x User Manuel
