USB Barcode Scanner 1D 2D QR Handheld Wired Bar Code Reader

Features:

▶ Support scanning screen code and paper code. High performance chip, super decoding capability, can scan paper and film barcode, high reflection and low brightness screen code.

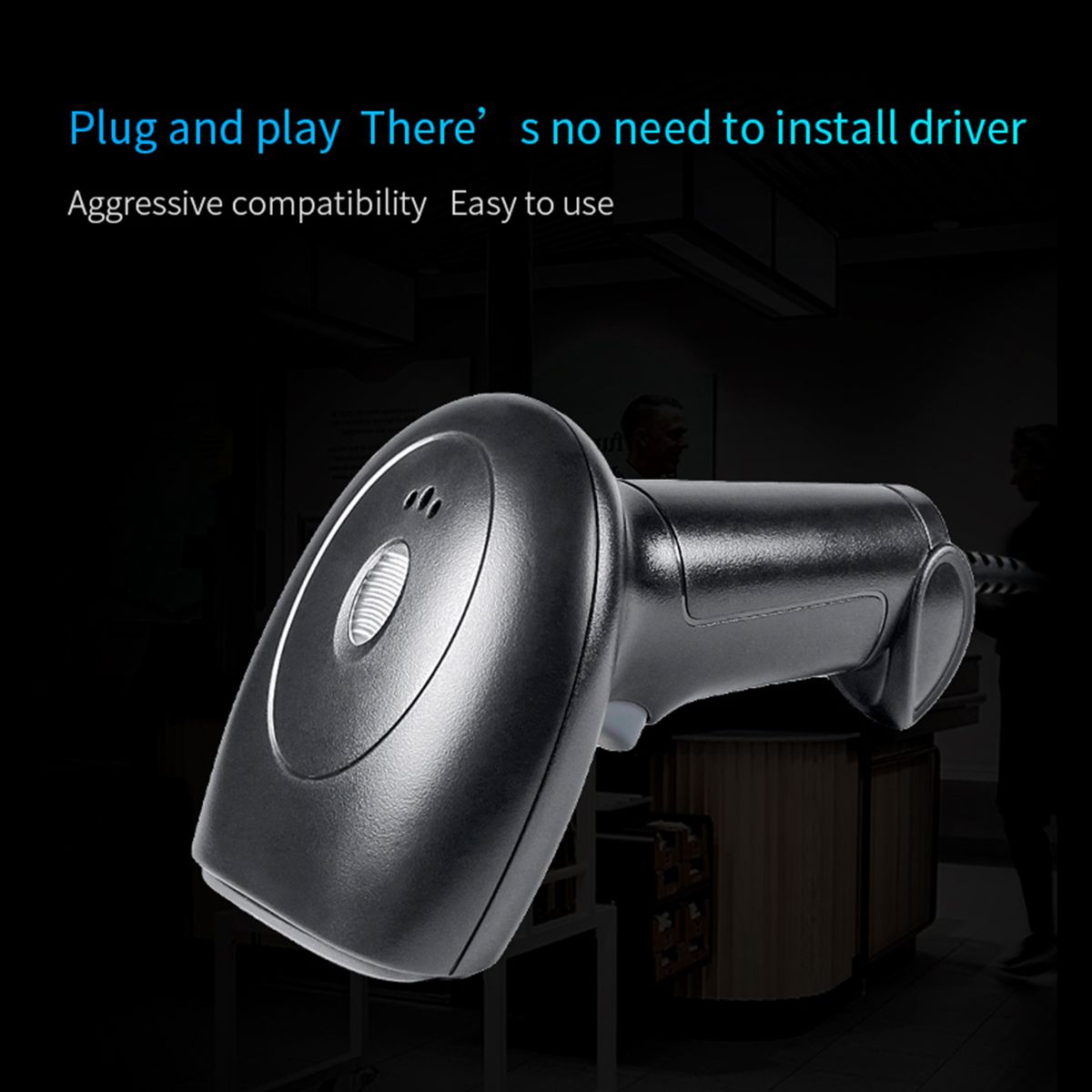

▶ Plug and play, no need of driver, compatible with Linux, Android, Windows XP/7/ 8/ 10, MacOS.

▶ Comes with an ergonomic design stand for hands-free scanning, flexible and adjustable, comfortable feel to grip.

▶ Easy to install, widely applied in market, warehouse, library, express & logistics industry, retail store, medical management, etc.

▶ Strong decoding capability, support 1D (Codabar, Code 39, Code 32, Interleaved 2 of 5, Industrial 2 of 5, Matrix 2 of 5, Code 93, Code 11, Code 128, UPC-A, UPC-E, EAN -8, EAN -13, MSI, ISSN, ISBN, GS1 DataBar) and 2D (PDF417, Micro PDF417, QR Code, Micro QR, Aztec, Data Matrix)



Specification:

Model: HS22

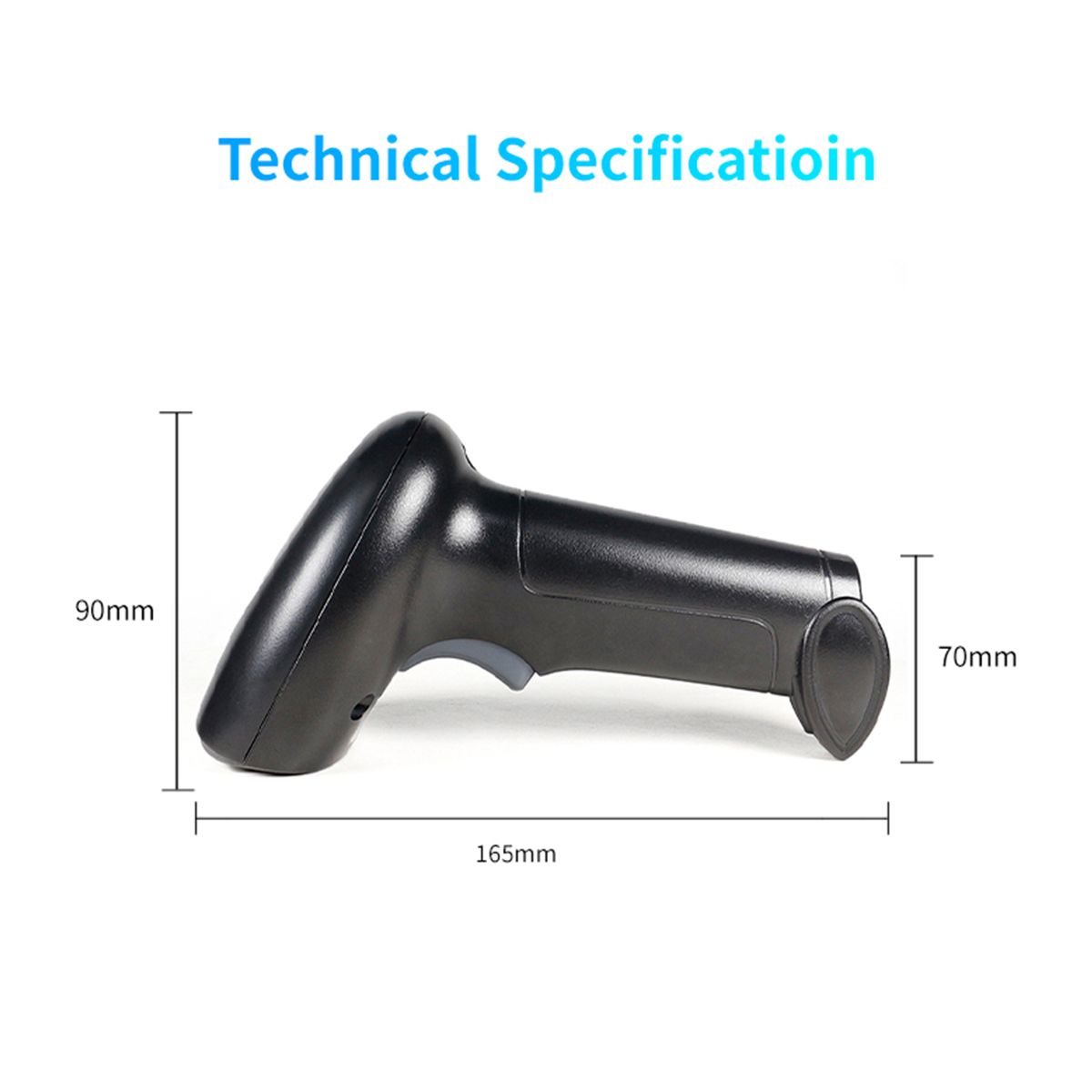

Size: 165mm(W)×70mm (D)×90mm(H)

Weight: 160g

Image Sensor: 640*480 CMOS

Lighting: White LED

Focus: Red LED

Support System: Linux，Android，Windows XP/7/ 8/ 10, MacOS

Illumination: White Led

Decode Types:

2D: PDF417, Micro PDF417, QR Code, Micro QR, Aztec, Data Matrix

1D: Codabar, Code 39, Code 32, Interleaved 2 of 5, Industrial 2 of 5, Matrix 2 of 5, Code 93, Code 11, Code 128, UPC-A, UPC-E, EAN -8, EAN -13, MSI, ISSN, ISBN, GS1 DataBar

Recognition Accuracy: ≥5mil

Depth of Field:

35mm~ 190mm EAN-13 (13mil)

EAN-13 (13mil) PDF417 (6mil)

25mm~60mm Code39 (4.7mil)

20mm~75mm Data Matrix (10mil)

20mm~90mm QR Code (15mil)

Mini Print Contact: ≥20%

Scan Angle: Tilt ±70°, Yaw ±70°, Rotate 360°

FOV: Diagonal 52.1°(D), 43.1°(H)

Interface: USB

Operating Voltage: 5V ±5%

Operating Temperature Range: -10℃~+60℃

Storage Temperature Range: -20℃~+70℃

Operating Humidity Range: 5%~95%

Ambient Light Intensity: 0~100,000LUX

Package Size: 188x110x85mm/7.4x4.3x3.3in

Package Weight: 250g/8.8oz



Packing List:

1 x Barcode Scanner

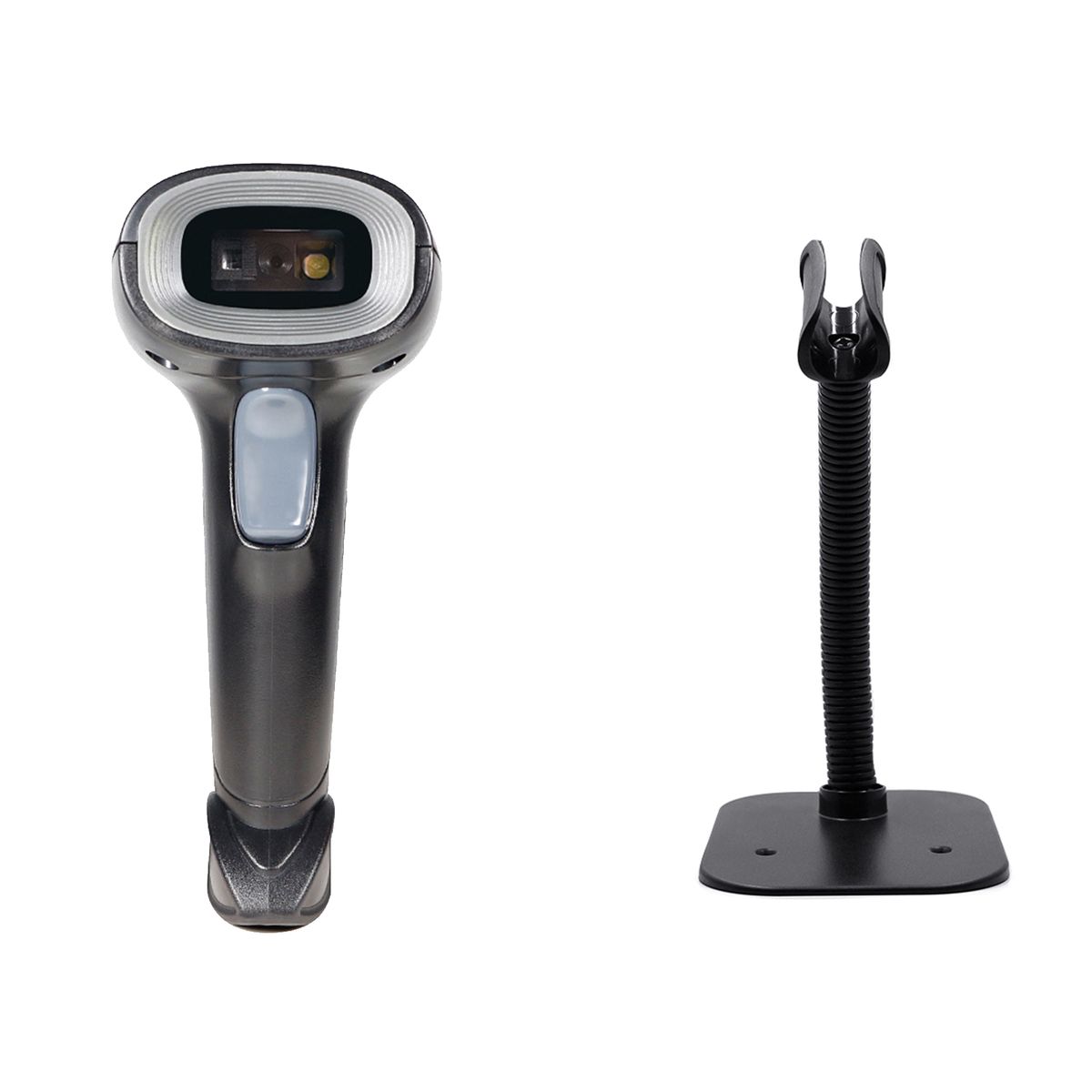

1 x Stand

1 x USB Cable

Key Features

▶ Support scanning screen code and paper code. High performance chip, super decoding capability, can scan paper and film barcode, high reflection and low brightness screen code.
▶ Plug and play, no need of driver, compatible with Linux, Android, Windows XP/7/ 8/ 10, MacOS.
▶ Comes with an ergonomic design stand for hands-free scanning, flexible and adjustable, comfortable feel to grip.
▶ Easy to install, widely applied in market, warehouse, library, express & logistics industry, retail store, medical management, etc.
▶ Strong decoding capability, support 1D (Codabar, Code 39, Code 32, Interleaved 2 of 5, Industrial 2 of 5, Matrix 2 of 5, Code 93, Code 11, Code 128, UPC-A, UPC-E, EAN -8, EAN -13, MSI, ISSN, ISBN, GS1 DataBar) and 2D (PDF417, Micro PDF417, QR Code, Micro QR, Aztec, Data Matrix)
▶ Support scanning screen code and paper code. High performance chip, super decoding capability, can scan paper and film barcode, high reflection and low brightness screen code.

What's In the Box

1 x Barcode Scanner,1 x Stand,1 x USB Cable
