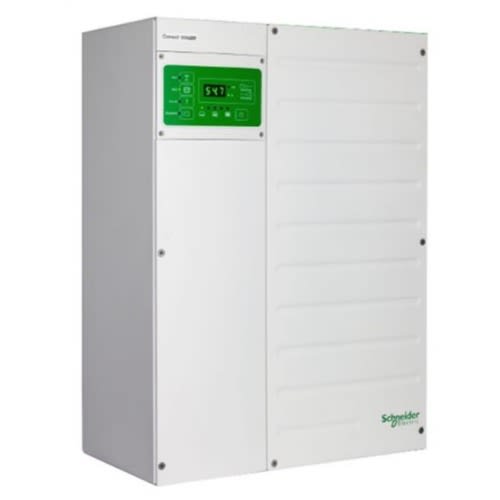

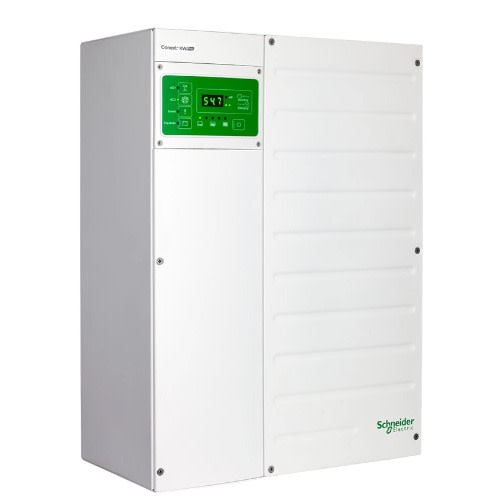

Conext Xw Hybrid Inverter - Charger 7048- 48vdc

Conext XW+ is an adaptable single-phase and three-phase hybrid inverter with grid-tie functionality and dual AC power inputs. Available solar charge controllers, monitoring, and automated generator control modules enable further adaptability. From a single Conext XW+ unit to clusters up to 102 kW, the Conext XW+ is a scalable system that allows for the integration of solar capacity as required. Adaptable and scalable, the Schneider Electric Conext XW+ system is the one solution for grid-interactive and off-grid, residential and commercial, solar and backup power applications.

Electrical Specifications

Output power continuous at 25C: 6800W

Output power continuous at 40C: 6000W

Nominal battery Voltage: 48V

Input DC voltage range: 40 to 64VDC

Ouput voltage: 230VAC 50Hz/60Hz

Max output Charge current (DC): 140A

Max AC Input current: 29.6 A

Max Input DC current: 180 A

Transfer time: 8m

Supported battery types: Flooded, AGM, GEL, Lithium-ion, Custom

Dimensions (mm) (LxBxW): 711x572x394

Weight: 55.2 kg

Ingress protection: IP20 Indoor only
