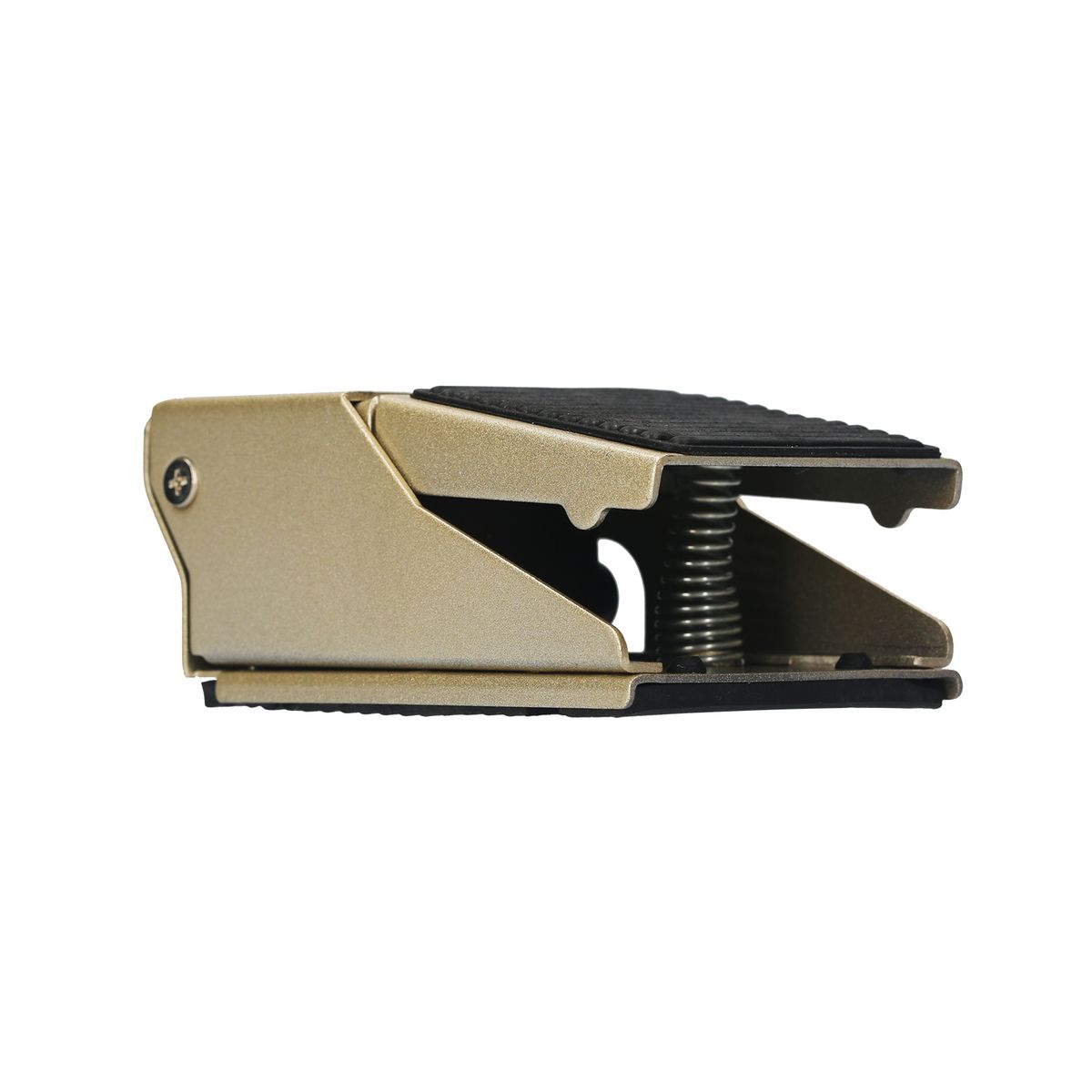

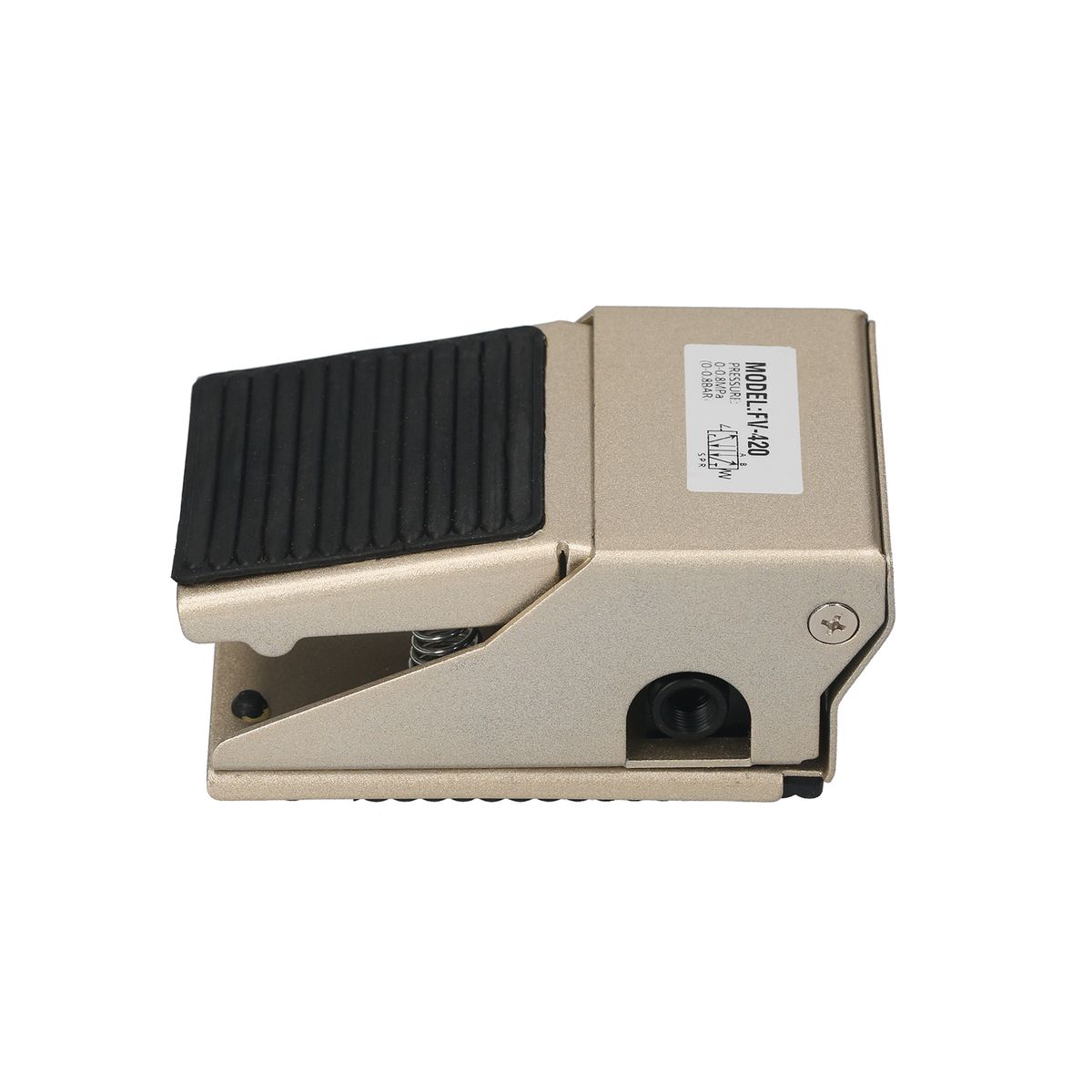

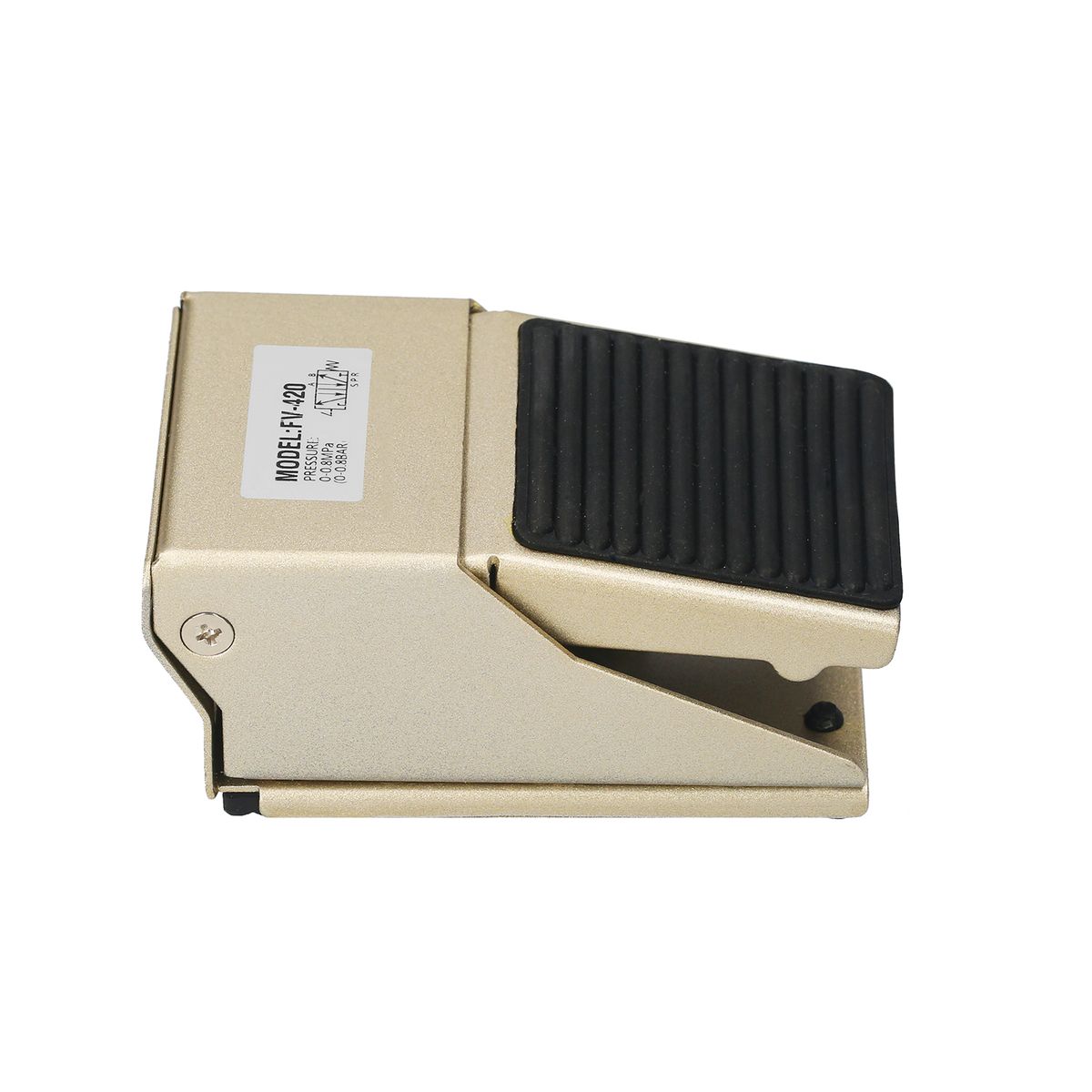

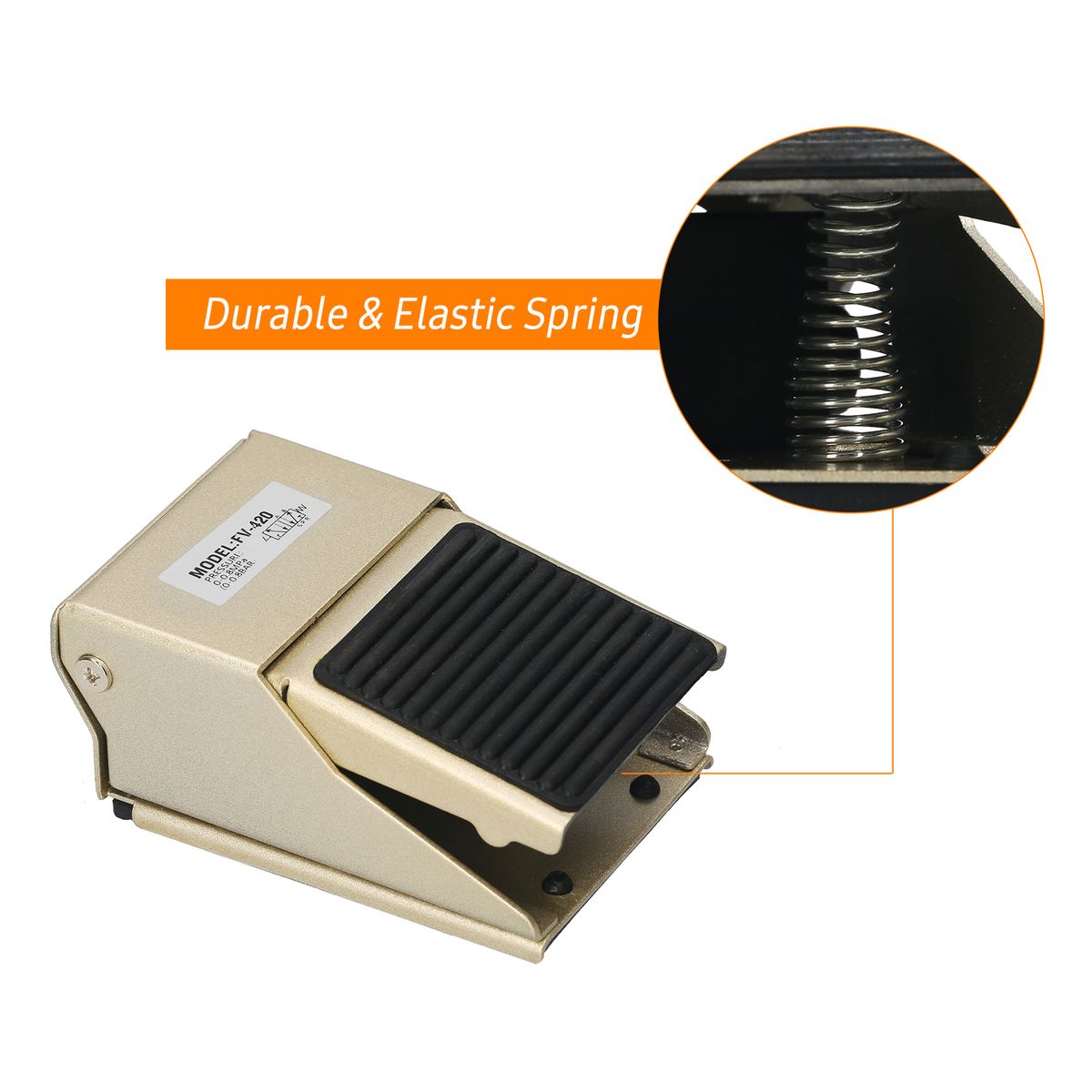

Pneumatic Foot Pedal Valve 1/4-inch Air Inlet Outlet

Features:

Pneumatic foot pedal valve with 1/4 quot; thread air inlet and outlet, 1/8 quot; thread exhaust. 3 way 2 position or 4 way 2 position for option. Direct drive acting type.

Made of high quality carbon steel material, with stable structure, high strength and great durability.

Foot pedal valve controls the air and changes the air direction for practical use.

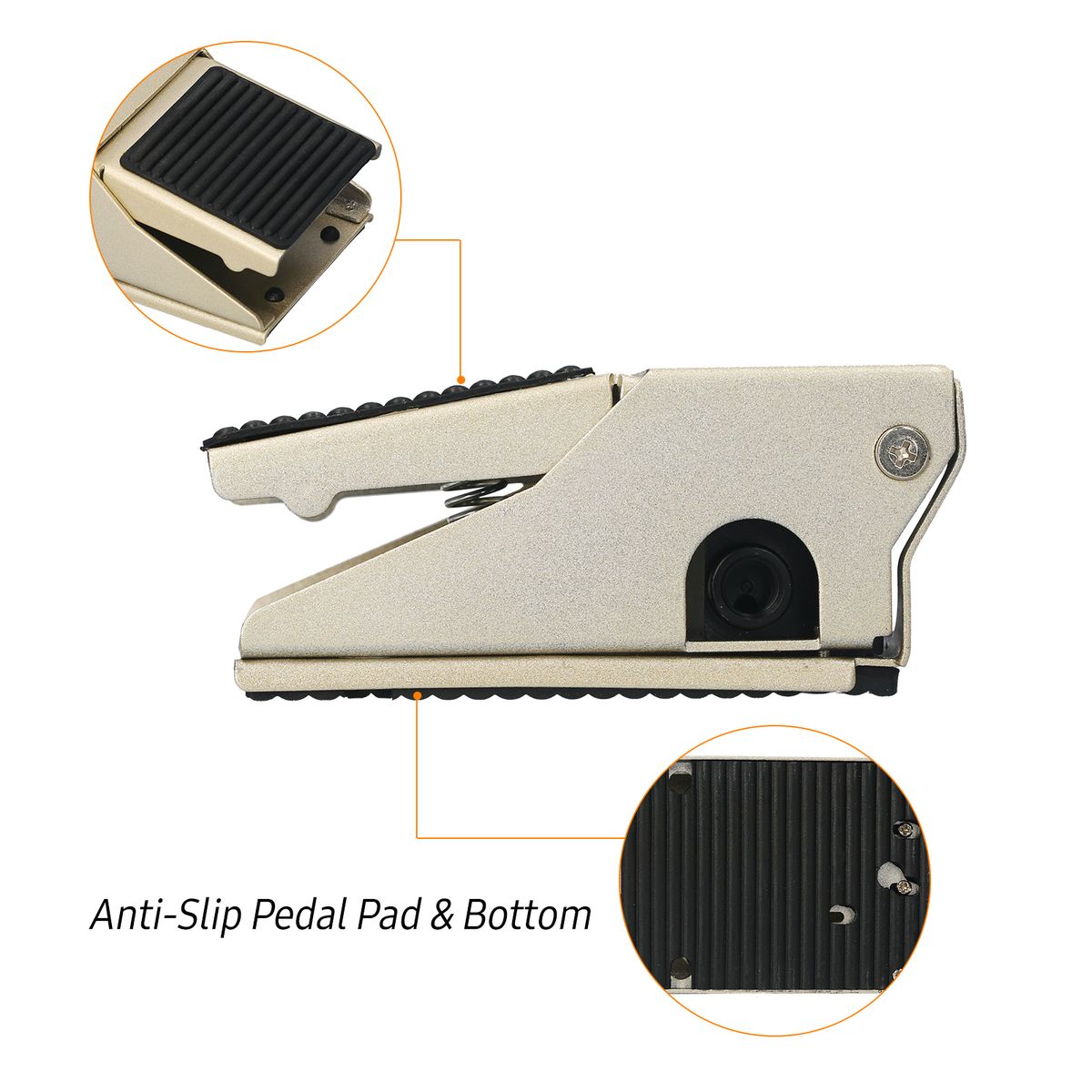

Adopts anti-skid rubber pedal pad and bottom, easy to use. Step down: get to work, release: stop working.

High working pressure, it can reach up to 0.8MPa. Widely used in various pneumatic tools to improve efficiency.

Note: Size and color may be slightly different due to manual measurement and different light conditions. Thanks for understanding.

Specifications:

Model: FV320/ FV420 (Optional)

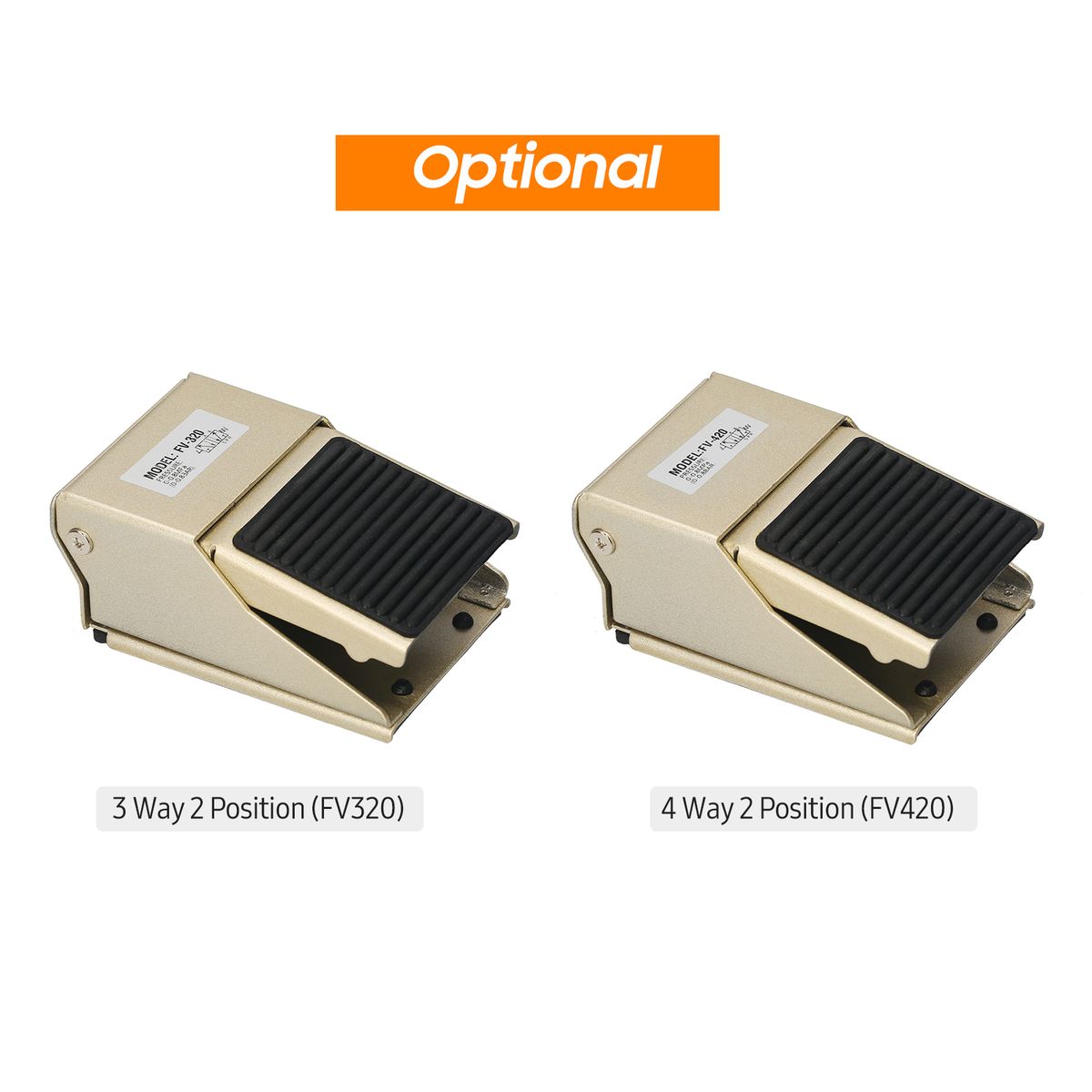

Type: 3 Way 2 Position (FV320); 4 Way 2 Position (FV420)

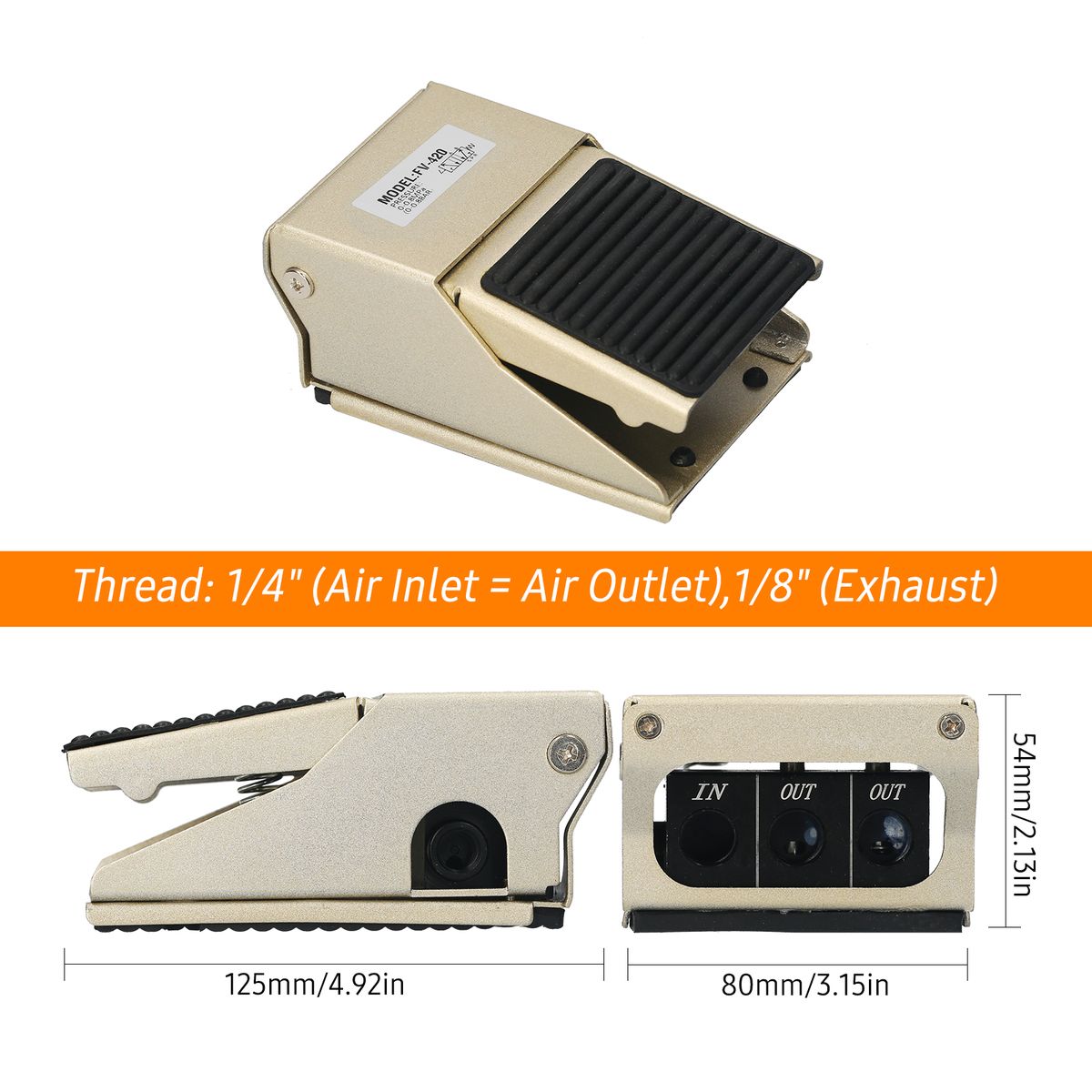

Thread: 1/4 quot; (Air Inlet = Air Outlet), 1/8 quot; (Exhaust)

Material: Carbon Steel

Working Medium: Air (40 mu;m Filtered)

Acting Type: Direct Drive Type

Pressure: 0-0.8MPa

Working Temperature: 0-60℃

Size: 125 * 80 * 54mm / 4.92 * 3.15 * 2.13in

Weight: 569g / 1.26lbs (FV320); 614g / 1.35lbs (FV420)

Package Size: 13.5 * 9 * 6.3cm / 5.31 * 3.54 * 2.48in

Package Weight: 605g / 1.33lbs (FV320); 650g / 1.43lbs (FV420)

We confidently assure you'll be satisfied with what you get.However, If there's a chance that you are not satisfied with our goods or something else, please let us know before leaving us a Negative feedback. We will try our best for 100% customer satisfaction. Your 5-Star Positive Feedback is much appreciated to us, and your satisfaction is our greatest motivation to move forward.Welcome to Shop Here! Want more Items? Please come visit our SHOP.

*Shipping and Packaging All it will be double checked and well packed before sending.It will be dispatched within 5 business days after buyers pay for the order. It usually takes about 14 to 18 working days for delivering the package to the destination(for remote areas,it may take a little longer).Your satisfaction is our first priority.

*If you receive the order and it is in good condition,we would be grateful if you would leave us 5 star Positive Feedback for the transaction.

Key Features

Pneumatic foot pedal valve with 1/4 quot; thread air inlet and outlet, 1/8 quot; thread exhaust. 3 way 2 position or 4 way 2 position for option. Direct drive acting type.
Made of high quality carbon steel material, with stable structure, high strength and great durability.
Foot pedal valve controls the air and changes the air direction for practical use.
Adopts anti-skid rubber pedal pad and bottom, easy to use. Step down: get to work, release: stop working.
High working pressure, it can reach up to 0.8MPa. Widely used in various pneumatic tools to improve efficiency.
