3S 12.6V Lithium Battery Protection Board Sprayer Solar Stre

technology, stable heat dissipation.
Over-voltage protection, over-discharge protection.
Integrated solution, charging protection.
Short-circuit protection, over-current protection.
Made of high quality material, durable. Battery type: ternary/3 strings/11.1V

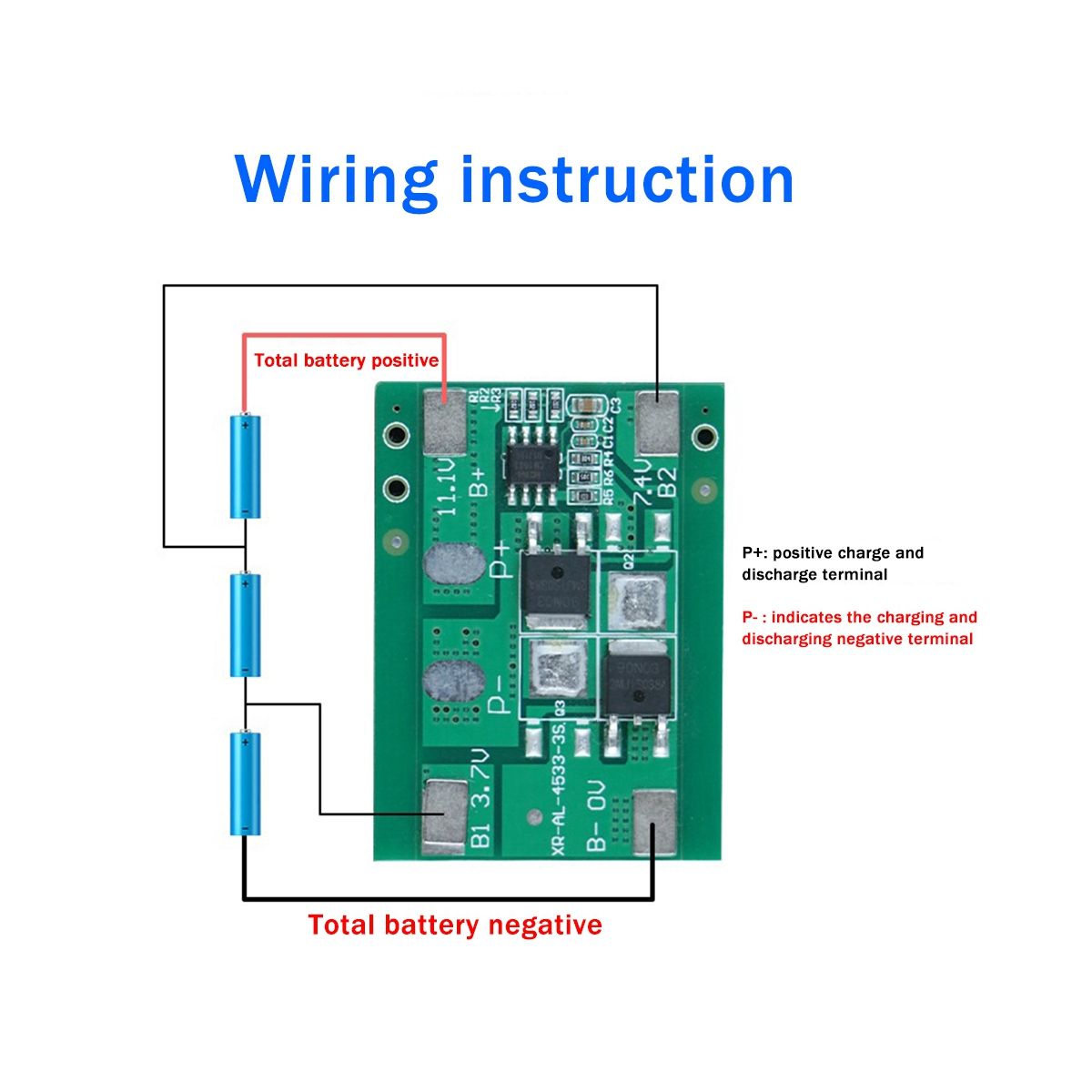

Wiring : same port
Single battery over-discharge voltage: 2.7V±0.08V
Continuous working current: 5A
Instantaneous protection current: 20A
Overcurrent Conditions: Charging resumes or load is disconnected
Short circuit conditions: charging or disconnection of load
Single battery overcharge voltage: 4.25V±0.025V
Continuous charging current: 5A
Charger voltage: 12.6V (recommended)
Working power consumption: ≤10uA
Main circuit on-resistance: ≤10mΩ
Temperature range: -40℃~80℃
Disconnection protection: yes
Appearance size: 45 x 33 x 3.5MM
Material: PCB
colour: Green Package Contents:
1 x Lithium Battery Charge Board Only the above package content, other are not included.
Note: Light reflection and different displays may cause the color of the item in the a little different from the real . The measurement allowed error is +/- 1-3cm.

Key Features

Durable and good quality
Ternary Protection Board
Protection Board
Battery Charge Board
Battery Protection Board
- Lithium Battery Charge Board
The details are as described above

What's In the Box

1 x Lithium Battery Charge Board
