Gtmedia Finder 2 TV Signal Finder Meter -S/S2/S2X Signal

• 3.5 Inch High Definition LCD Screen
• Fully D V B-S2X/S2/S, MPEG-2/MPEG-4 compliant
• Support H.264 (8 Bit) Hardware decoding
• Digital measuring device for signal strength and quality
• Support Loop Search
• Spectrum analyzer
• Supports scan of Auto, Blind, Manual or NIT
• Sound for Locking Signal
• Auto Calculate Angle of AZ,EL
• Supports DISEQC 1.0/1.1/1.2, Unicable, 0/22kHz Tone
• Speaker Integrated
• Support both AV out and AV in
• Support both HD out
• Support real-time power display, with low power reminder
• Supports Youtube for USB wifi 2.4G
• LNB short protect
• 7.4V/4000mAh Li-ion Battery Included
• Support Type-C charging interface, support multi-protocol fast charging
• Support Type-C reverse charging
• Software upgrade via USB port
• Easy to carry

• Connector Type: F Type
• Input Frequency: 950 to 2150 MHz
• Signal Input Level: ‐65 to ‐25 dBm
• Band Switch Control: 22KHz
• LNB Supply: 13V/18V, Max 350mA
• Demodulation Type: D V B-S2 QPSK, D V B-S2 QPSK/8PSK/16APSK/32APSK, D V B-S2X QPSK/8PSK/16APSK/32APSK/64APSK
• Symbol Rate: 2
• LCD Type: TFT Transmissive
• Number of Dots: 320 RGB*240
• Active area (W*H): 70.08(H)*52.56(V)MM
• Connector Type: 3.5 mm jack
• Video Output: CVBS
• Audio Output: Stereo Audio L/R output
• HD Output Connecter: HD 1.3a
• AV Input Interface: 3.5 mm jack
• Video Input: CVBS
• Audio Input: Stereo Audio L/R input
• Video Decompression: MPEG-2 MP @HL, MPEG-1 Decoding, MPEG-4 ASP @l5 HD resolution, H.264 MP&HP @L4, HW JPEG decoder
• Resolving Rate: PAL-25 frame @720*576, NTSC -30 frame @720*480
• Singnal Compatibility: Support conversion for different video formats
• Video Format: 4:3, 16:9, By Pan & Scan and Letter Box conversion
• Audio Decompression: MPEG-1 Layer I/II, MPEG-2 Layer I/II
• Audio Output Mode: Stereo, Mono, R/L
• DATA SERVICE PORT Conector: USB
• Data Protocol: USB 2.0 interface
• File Management System: NTFS, FAT32, FAT16
• File Format: Media: TS, mkv, mp4, avi, flv, f4v, ts, m2ts, mov, 3gp
• Audio: wma, mp3
• Photo: jpg, jpeg, bmp, img
• PVR Option: Support recording TS files
• WiFi Option: Support networking via USB WiFi
• Li-Lon Battery Capacity: 7.4V/4000mAh
• Power Consumption: Rated 8W (No external equipment)
• Temperature: Operation 0～+45 "℃"; Storage -10~+60 "℃"
• Humidity: 20~90%, non-condensed
• Item Size(W*D*H): 155*95*45mm/6.10*3.74*1.77in
• Item Weight: 317g/11.18oz
• Package Size: 204*164*57mm/8.03*6.45*2.24in
• Package Weight: 451g/15.90oz

Key Features

3.5 Inch High Definition LCD Screen
*Fully -S2X/S2/S, MPEG-2/MPEG-4 compliant
*Support H.264 (8 Bit) Hardware decoding
*Digital measuring device for signal strength and quality
*Support Loop Search
*Spectrum analyzer
*Supports scan of Auto, Blind, Manual or NIT
*Sound for Locking Signal
*Auto Calculate Angle of AZ,EL
*Supports DISEQC 1.0/1.1/1.2, Unicable, 0/22kHz Tone
*Speaker Integrated
*Support both AV out and AV in
*Support both HD out
*Support real-time display, with low reminder
*Supports Youtube for USB wifi 2.4G
*LNB short protect
*7.4V/4000mAh Li-ion Battery Included
*Support Type-C interface, support multi-protocol
*Support Type-C reverse
*Software upgrade via USB port
*Easy to carry

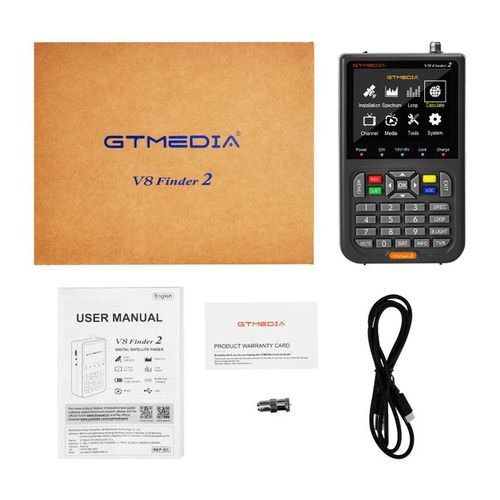

What's In the Box

• 1 * V8 Finder 2
• 1 * USB Cable
• 1 * User Manual (EN/DE/FR/ES/IT/PO)
