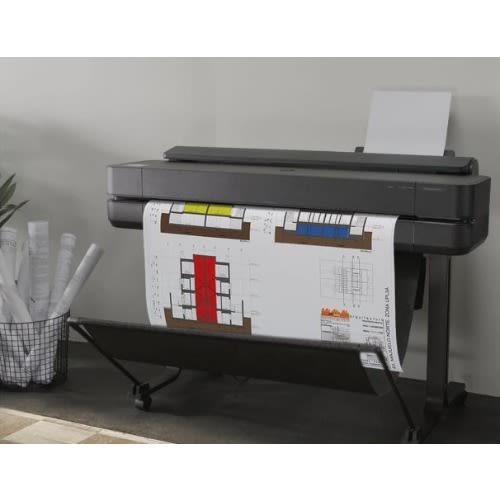

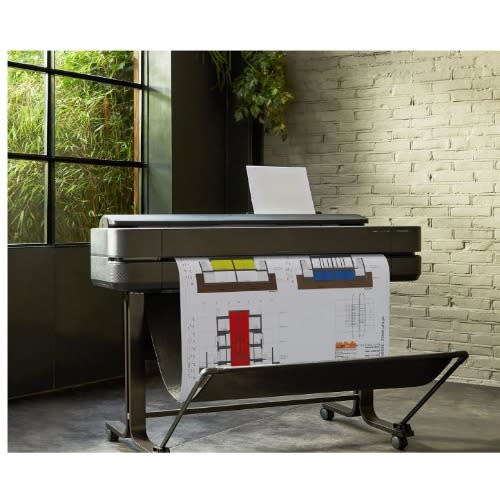

Hp Designjet T630 36-in Printer

MEMORY
Memory

1 GB

BOX CONTENTS
What's in the box

HP DesignJet T630 36-in Printer, printer stand, automatic sheet feeder, printhead, introductory ink cartridges, spindle, quick reference guide, setup poster, power cord

CONNECTIVITY AND COMMUNICATIONS
Connectivity, standard

Gigabit Ethernet (1000Base-T), Hi-Speed USB 2.0, Wi-Fi 802.11a/b/g/n, Wi-Fi Direct

Print multi-size files in one click

Yes

Remote print enabled

Yes

WEIGHTS
Weight

34.7 kg

Package weight

55.3 kg

DIMENSIONS
Minimum dimensions (W x D x H)

1317 x 605 x 932 mm

Package dimensions (W x D x H)

1470 x 575 x 590 mm

BATTERY AND POWER
Power

Input voltage (auto ranging): 100-240 V (±10%), 50/60 Hz (±3 Hz), 1200 mA max. Not dual voltage, power supply varies by part number with # Option code identifier.

Power consumption

<35 W (printing), <5.6 W (ready), <2.1 W (sleep), <0.2 W (standby)

SOFTWARE AND APPLICATIONS
Software included

HP Click, HP Smart app, HP Print Preview for Windows, HP Easy Start, HP DesignJet Utility for Windows, HP Support Assistant

WARRANTY
Manufacturer Warranty

One-year limited hardware warranty

CARTRIDGES AND PRINTHEADS
Number of print cartridges

4 (C, M, Y, K)

Ink types

Dye-based (C, M, Y)
pigment-based (K)

Color(s) of printing supplies

Cyan, magenta, yellow, black

Ink drop

5.5 pl (C, M, Y)
12 pl (K)

Print cartridge volume delivered

80 ml (K)
38 ml (K)
29 ml (C, M, Y)

Print head nozzles

1376

Print heads

1 (cyan, magenta, yellow, black)

High capacity of page yield (colour)

20 ml of ink yields 101 A1 pages, taking into account maintenance routines[2]

PRINTER SPECIFICATIONS
Functions

Print

Internal Storage

None

Print technology

HP Thermal Inkjet

Print languages

HP-GL/2, HP-RTL, CALS G4, JPEG, URF

Printer drivers included

Raster driver for Windows and macOS

Printing path

Print Anywhere with HP Smart app, HP Click, HP driver for macOS, HP driver for Windows, printing support for Chrome OS, email printing, HP Print Service Plugin for Android, Apple AirPrint

Line accuracy

±0.1%[3]

Theoretical minimum line width

0.02 mm

Model size

914 mm

PRINT SPEED
Print speed

30 sec/page on A1, 76 A1 prints per hour[1]

PRINTING MEDIA HANDLING
Finished output handling

Sheet feed, roll feed, automatic sheet feeder, media bin, automatic horizontal cutter

PRINT AREA
Non-printable area (cut-sheet)

5 x 5 x 5 x 5 mm

Non-printable area (roll media)

5 x 5 x 5 x 5 mm

PRINT RESOLUTION
Print quality color (best)

Up to 2400 x 1200 optimised dpi

Maximum optical density (black)

8 L* min/2.10 D[4]

PRINTING MEDIA
Media sizes standard (metric rolls)

279 to 914 mm

Roll external diameter

100 mm

Roll maximum input

1

Roll maximum weight

6.2 kg

Media thickness

Up to 11.8 mil

Supported Primary Applications

Line drawings
Presentations
Renderings

Recommended media

Q1396A HP Universal Bond Paper (FSC® certified)[5] (recyclable)[6] 610 mm x 45.7 m
C6019B HP Coated Paper (FSC® certified)[5] (recyclable)[6] 610 mm x 45.7 m
C6029C HP Heavyweight Coated Paper (FSC® certified)[5] (recyclable)[6] 610 mm x 30.5 m

SUPPORTED PRINTING MEDIA
Media sizes supported

Auto sheet feeder: A4, A3
manual feed: A4, A3, A2, A1, A0

Media sizes, custom

Auto sheet feeder: 210 x 279 to 330 x 482 mm
manual feed: 210 x 279 to 914 x 1897 mm

Media types

Bond and coated paper (bond, coated, heavyweight coated, plain, bright white, blueprint), technical paper (natural tracing), film (clear, matte), photographic paper (satin, gloss, semigloss, polypropylene), self-adhesive (adhesive, polypropylene)

Media weight, recommended

60 to 280 g/m² (roll/manual feed)
60 to 220 g/m² (auto sheet feeder)

Media width, maximum

914 mm

Media thickness (metric)

Up to 0.3 mm
