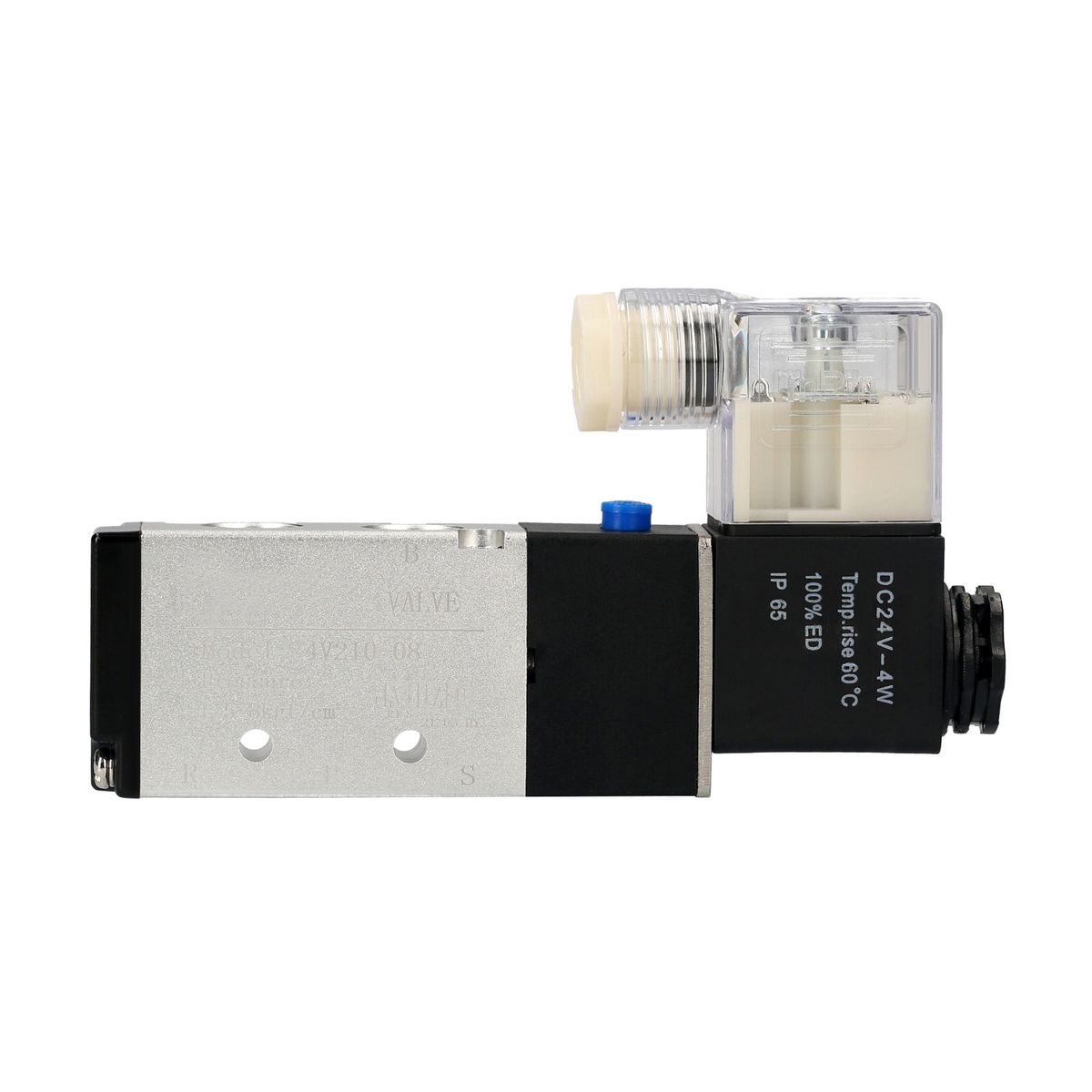

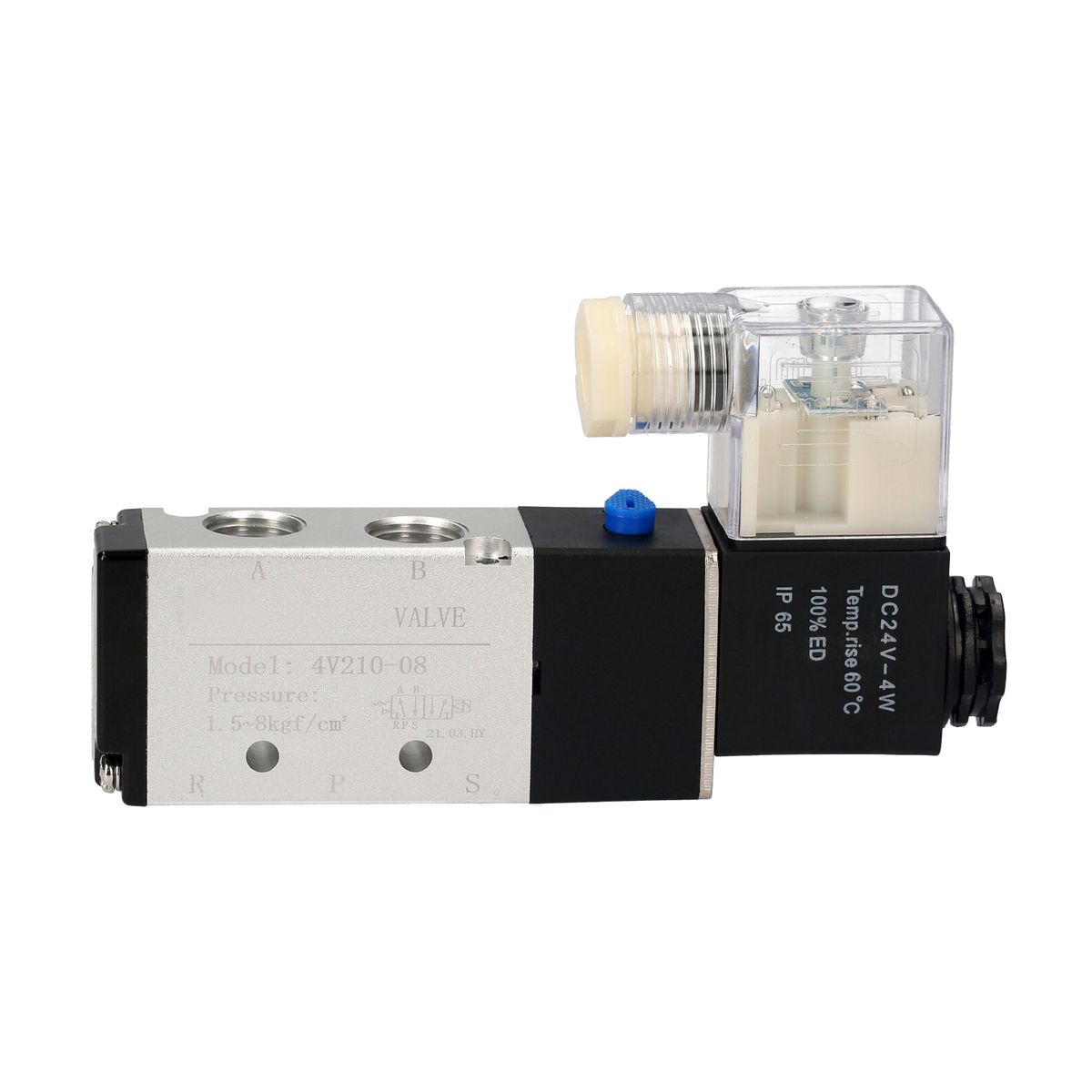

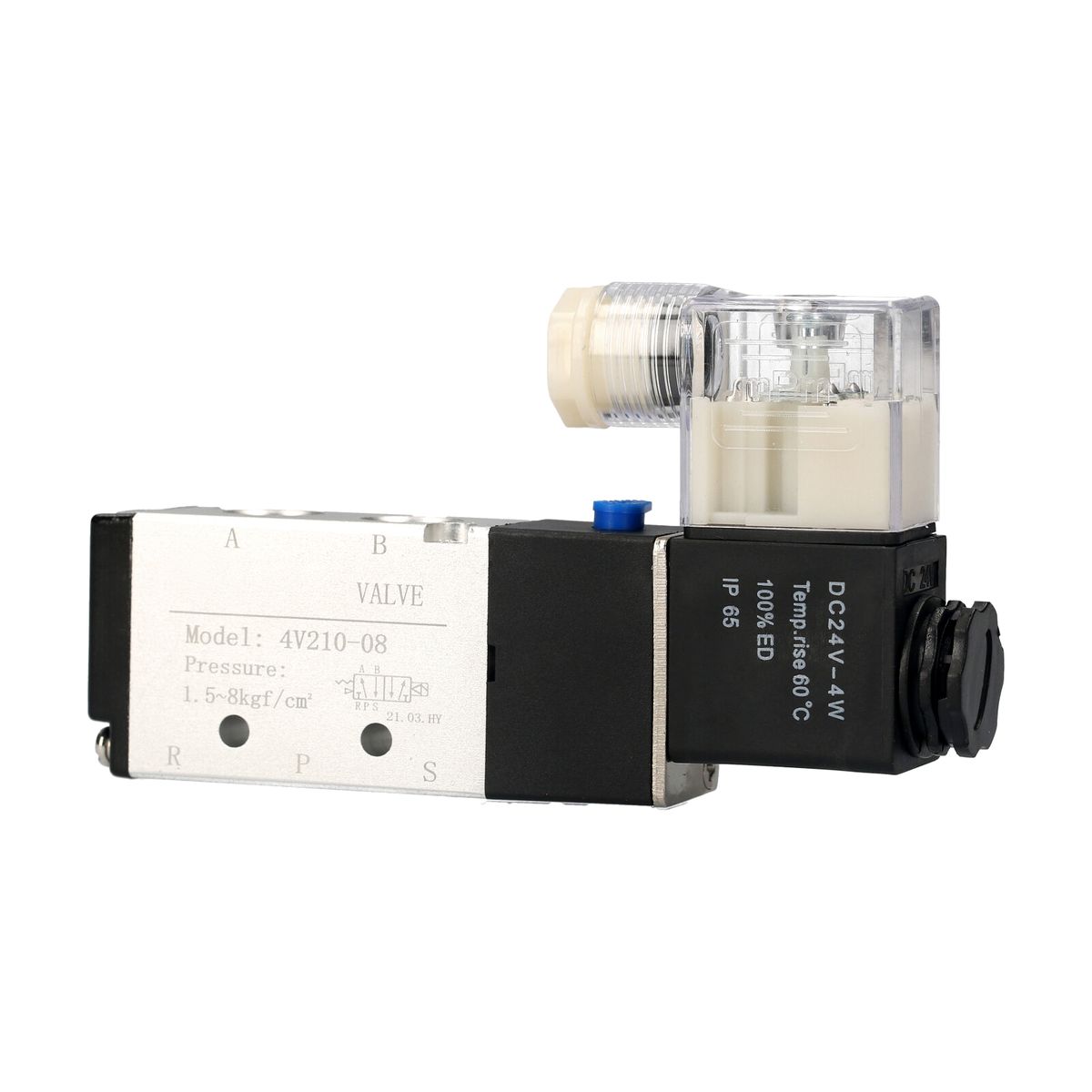

Pneumatic Air Control Solenoid Valve DC 24V PT1/4'' 5 Way 2

Strict selction of each part including the material and other spare parts, fine processing of thread and coil fulfill the high quality of solenoid valve.

Features:

Type: 5 way 2 position. Operation: internally piloted acting type.

Port Size: air inlet (P)= PT1/4, air outlet (A B)= PT1/4, air exhaust (R S)= PT1/8.

Working Pressure Range: 1.5~8kgf/ cm sup2; (0.15~0.8MPa).

Valve body made of high precision aluminum alloy with high hardness and long service life.

Good sealing performance, smooth thread for easy mounting.

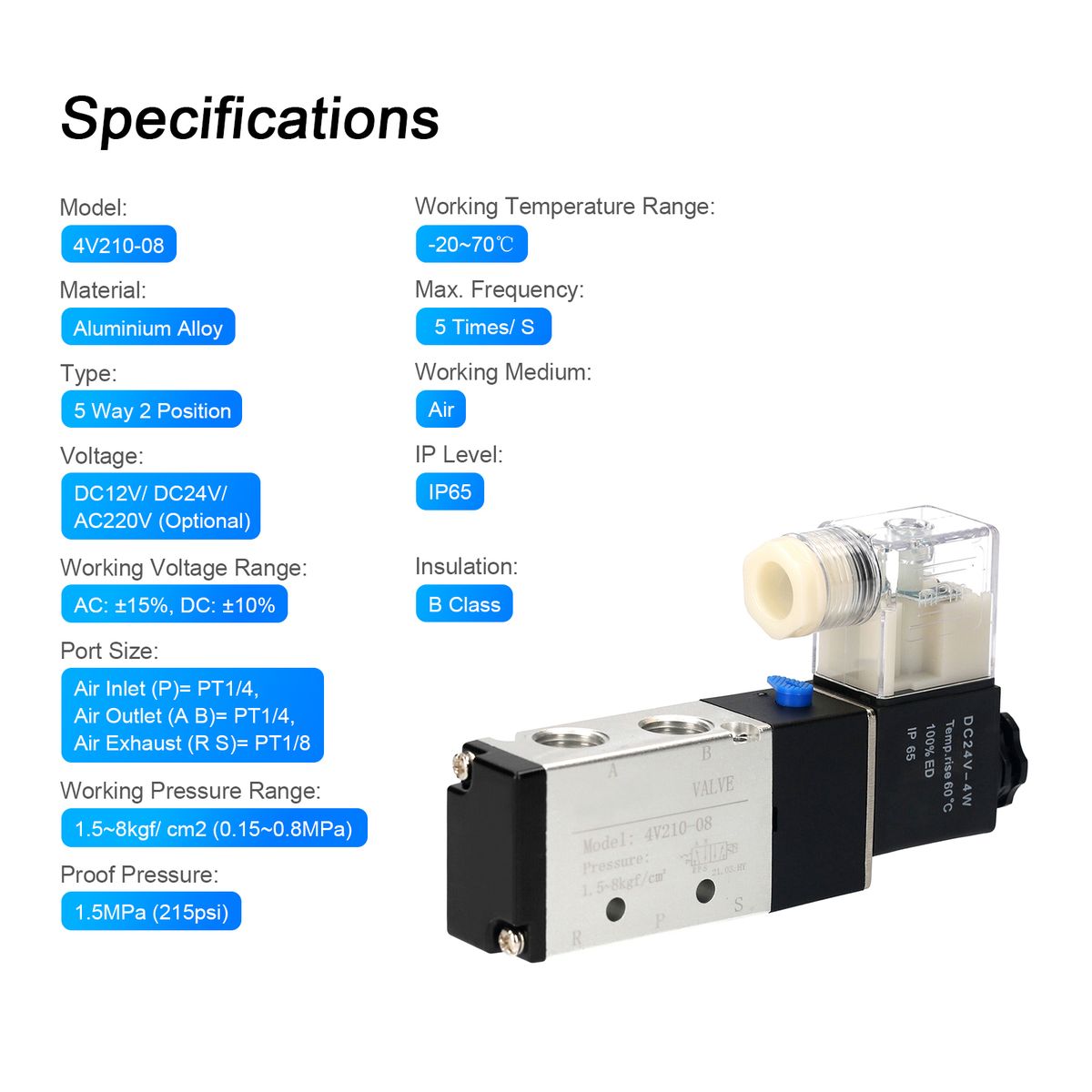

Specifications:

Model: 4V210-08

Material: Aluminium Alloy

Type: 5 Way 2 Position

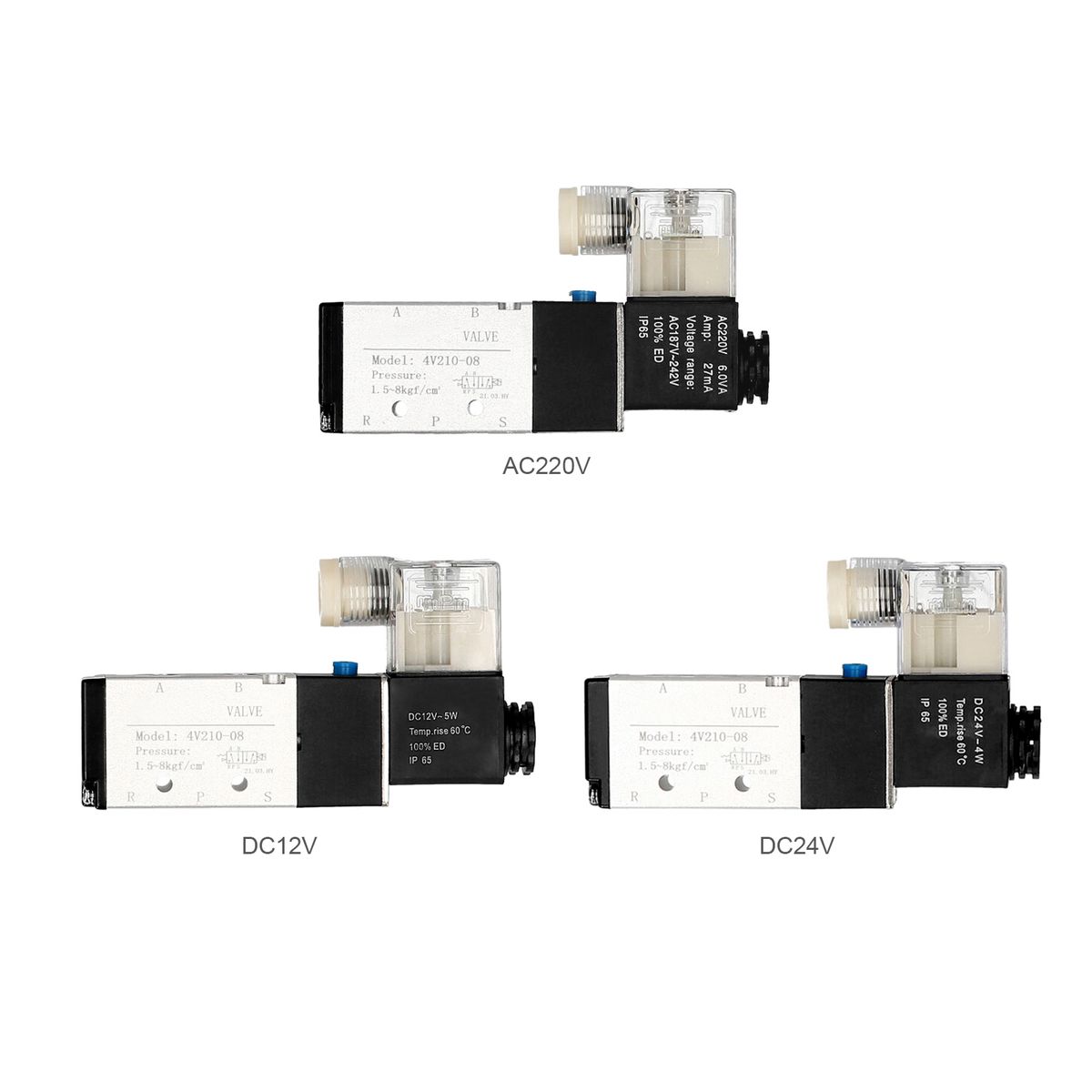

Voltage: DC12V/ DC24V/ AC220V (Optional)

Working Voltage Range: AC: plusmn;15%, DC: plusmn;10%

Port Size: Air Inlet (P)= PT1/4, Air Outlet (A B)= PT1/4, Air Exhaust (R S)= PT1/8

Working Pressure Range: 1.5~8kgf/ cm sup2; (0.15~0.8MPa)

Proof Pressure: 1.5MPa (215psi)

Working Temperature Range: -20~70℃

Max. Frequency: 5 Times/ S

Working Medium: Air

IP Level: IP65

Insulation: B Class

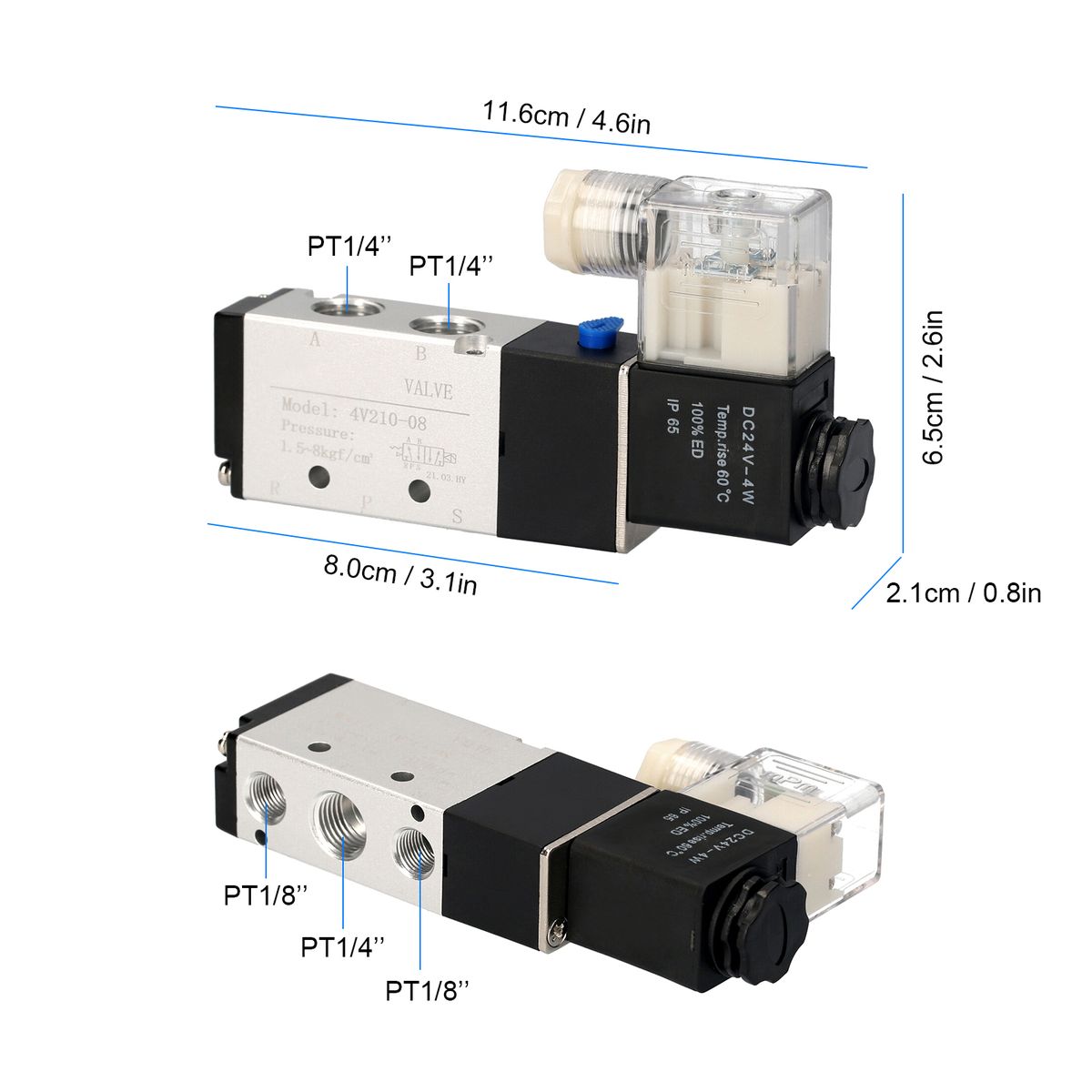

Size: 11.6 * 2.1 * 6.5cm / 4.6 * 0.8 * 2.6in

Weight: 204g / 7.18oz

Package Size: 12.1 * 6.7 * 2.5cm / 4.8 * 2.6 * 1.0in

Package Weight: 218g / 7.69oz

Package List:

1 * Solenoid Valve
