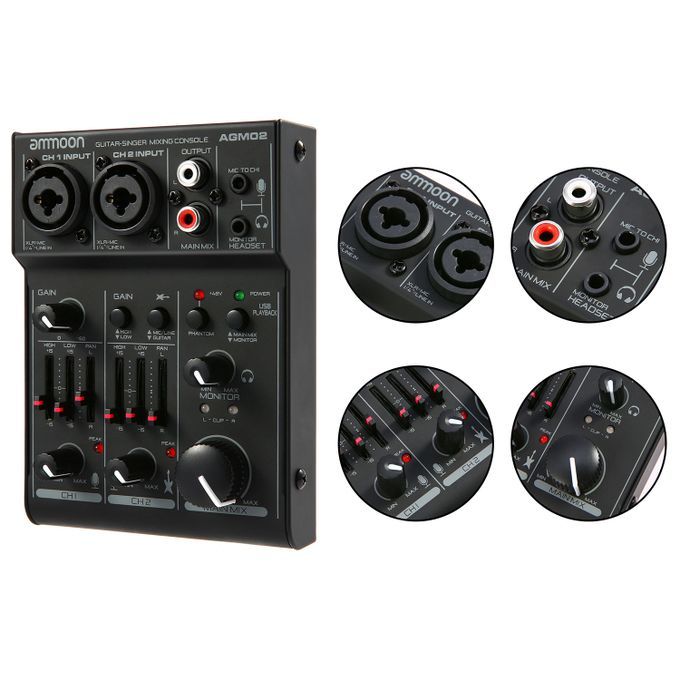

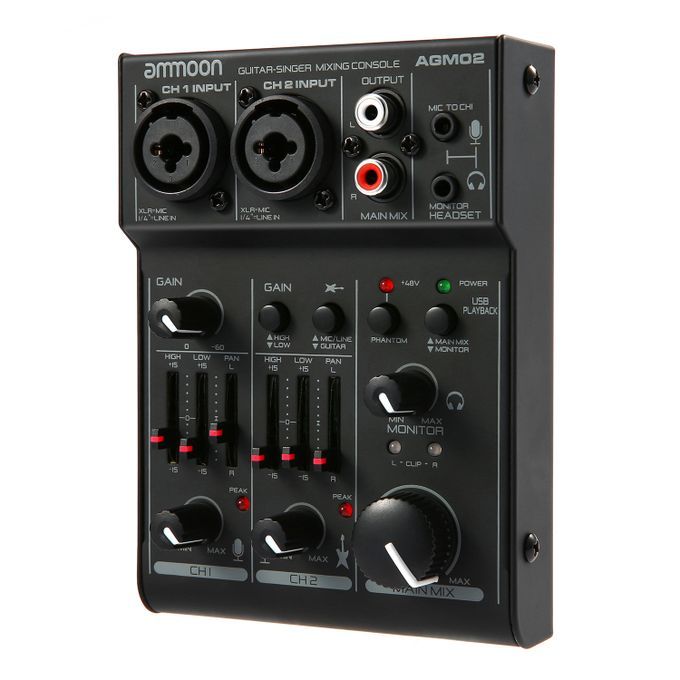

Ammoon AGM02 Mini 2-Channel Sound Card Mixing Console

Features:

Super mini 2-channel mixing console designed for home stuido recording, network live broadcast, karaoke, etc; 5V low voltage supply design, can be powered by computer or 5V through the including USB cable, easy to carry and convenient to use.

With two TRS & XLR combined mono inputs for connecting microphone, instrument or other audio device; RCA(L&R) outputs for connecting amplifier or recorder; 3.5mm headset connection includes MIC IN and PHONES jack to avoid unnecessary noise.

Each channel has 2-band EQ(High & Low), PAN(panorama/balanced) and level controls; CH1 supports GAIN adjustment(0 to -60), CH2 with GAIN switch to determine the basic volume and GUITAR switch for switching the input impedance.

Supports +48V for condenser microphone; with USB PLAYBACK switch assigns signal to MAIN MIX to MONITOR; with MONITOR/PHONES knob for headphone output volume control and MAIN MIX knob for setting the level of the output signal sent via the RCA outputs and the USB port

Integrated USB audio interface will be identified and addressed as an external sound card when connected with computer, and audio data can be transferred between the computer and the mixer.

Super mini 2-channel mixing console designed for home stuido recording, network live broadcast, karaoke, etc; 5V low voltage supply design, can be powered by computer or 5V through the including USB cable, easy to carry and convenient to use.

With two TRS & XLR combined mono inputs for connecting microphone, instrument or other audio device; RCA(L&R) outputs for connecting amplifier or recorder; 3.5mm headset connection includes MIC IN and PHONES jack to avoid unnecessary noise.

Each channel has 2-band EQ(High & Low), PAN(panorama/balanced) and level controls; CH1 supports GAIN adjustment(0 to -60), CH2 with GAIN switch to determine the basic volume and GUITAR switch for switching the input impedance.

Supports +48V for condenser microphone; with USB PLAYBACK switch assigns signal to MAIN MIX to MONITOR; with MONITOR/PHONES knob for headphone output volume control and MAIN MIX knob for setting the level of the output signal sent via the RCA outputs and the USB port

Integrated USB audio interface will be identified and addressed as an external sound card when connected with computer, and audio data can be transferred between the computer and the mixer.

Super mini 2-channel mixing console designed for home stuido recording, network live broadcast, karaoke, etc; 5V low voltage supply design, can be powered by computer or 5V through the including USB cable, easy to carry and convenient to use.

With two TRS & XLR combined mono inputs for connecting microphone, instrument or other audio device; RCA(L&R) outputs for connecting amplifier or recorder; 3.5mm headset connection includes MIC IN and PHONES jack to avoid unnecessary noise.

Each channel has 2-band EQ(High & Low), PAN(panorama/balanced) and level controls; CH1 supports GAIN adjustment(0 to -60), CH2 with GAIN switch to determine the basic volume and GUITAR switch for switching the input impedance.

Supports +48V for condenser microphone; with USB PLAYBACK switch assigns signal to MAIN MIX to MONITOR; with MONITOR/PHONES knob for headphone output volume control and MAIN MIX knob for setting the level of the output signal sent via the RCA outputs and the USB port

Integrated USB audio interface will be identified and addressed as an external sound card when connected with computer, and audio data can be transferred between the computer and the mixer.

Specifications:

Brand: ammoon

Model: AGM02

CH1 & CH2 XLR: 2mV/1.8k ohm(gain max)

CH1 Jack: 10mV/ 12k ohm(line)

CH2 Jack: 30mV/ 20k ohm(line), 30mV/240k ohm(guitar)

Output Level: 5.8V max(main, monitor)

Frequency Range: 20-22000Hz

THD: ≤ 0.05%

S/N Ratio: 80dB

Bass Range: ±15dB/80Hz

High Range: ±15dB/12kHz

Headphone: Impedance: >=16 ohm

USB Interface: USB1.1 compatible, 16-bit delta-sigma, 44.1kHz sampling rates, 48kHz max.

: +48V

Supply: USB 5V 500mA

Operating System: Windows 2000, XP or higher; OS 9.0.4 or higher, 10.X or higher

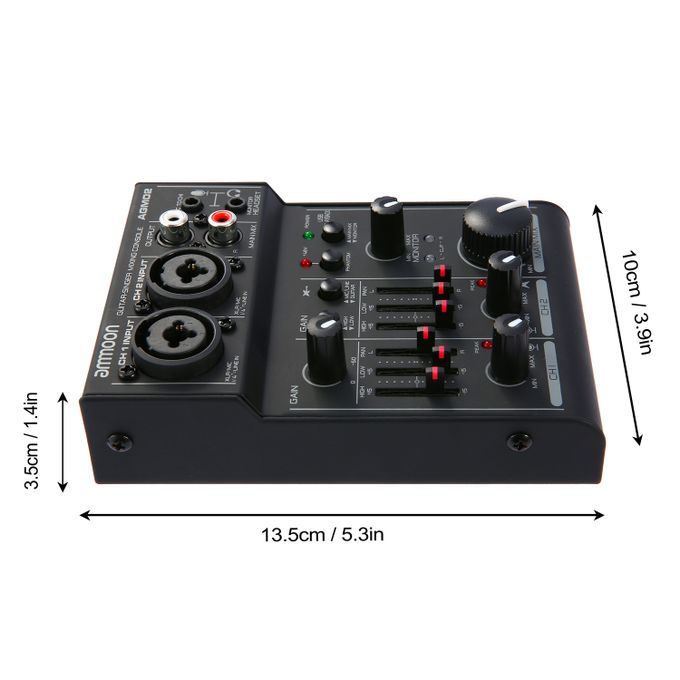

Item Size: 10 * 13.5 * 3.5cm / 3.9 * 5.3 * 1.4in

Item Weight: 443g / 15.6oz

Package Size: 17.5 * 13.5 * 10cm / 6.9 * 5.3 * 3.9in

Package Weight: 615g / 1.4lbs



Note:

This unit were using the best and the most stability brand TI USB chip set , it is an integrated USB sound card and can be used with no external system driver, and supports both and Windows with many versions. Not supports ASIO drivers.



Package List:

1 * Mixing Console

1 * USB Cable
4 * Non-slip mat
1 * Users' Manual(English & French & German & Italian & Spanish & Japanese)
a a a a a

Key Features

Super mini 2-channel mixing console designed for home stuido recording, network live broadcast, karaoke, etc; 5V low voltage supply design, can be powered by computer or 5V through the including USB cable, easy to carry and convenient to use.
With two TRS & XLR combined mono inputs for connecting microphone, instrument or other audio device; RCA(L&R) outputs for connecting amplifier or recorder; 3.5mm headset connection includes MIC IN and PHONES jack to avoid unnecessary noise.
Each channel has 2-band EQ(High & Low), PAN(panorama/balanced) and level controls; CH1 supports GAIN adjustment(0 to -60), CH2 with GAIN switch to determine the basic volume and GUITAR switch for switching the input impedance.
Supports +48V for condenser microphone; with USB PLAYBACK switch assigns signal to MAIN MIX to MONITOR; with MONITOR/PHONES knob for headphone output volume control and MAIN MIX knob for setting the level of the output signal sent via the RCA outputs and the USB port
Integrated USB audio interface will be identified and addressed as an external sound card when connected with computer, and audio data can be transferred between the computer and the mixer.
Super mini 2-channel mixing console designed for home stuido recording, network live broadcast, karaoke, etc; 5V low voltage supply design, can be powered by computer or 5V through the including USB cable, easy to carry and convenient to use.
Easy to use
Exquisite Workmanship
Well Made
Best Choice and best discounts
Customer Care is Our Top Priority
Offer is Subject to Availability
Big Sale

What's In the Box

1 x Mixing Console,1 x USB Cable 4 x Non-slip mat 1 x Users' Manual(English & French & German & Italian & Spanish & Japanese)
