WS6906 3.5in LCD Display Data Digital Satellite Signal Finder Meter

SATLINK WS6906 can be connected as a standard receiver to a TV set. In addition, the device has an AV input. At this to be connected other media players or AV surveillance cameras.

Features:

• Fine quality and stable performance.
• 3.5in LCD color display.
• Easily and accurately aim your dish and view the channel while aiming the dish.
• Watch the free channels.
• Sound warning prompt locking satellite.
• Bit error rate readout.
• Carrier to noise readout.
• Easy and quick operation.

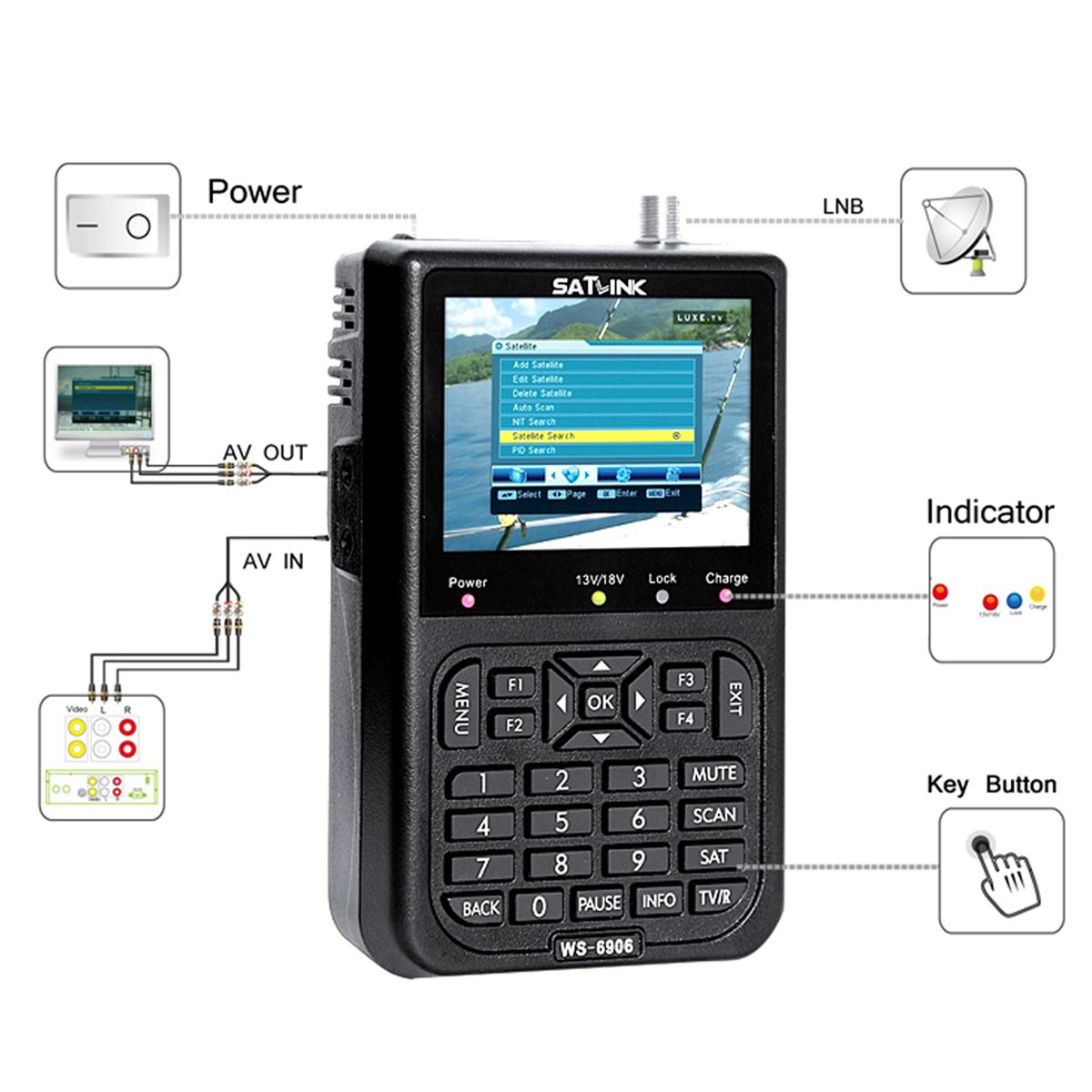

• Supports AV OUT and AV IN function at the same time.
• Special "Parent Lock" functions.
• Matched with a protective bag and a car charger for easier outdoor using.

Specifications:

• Frequency range: 950MHz-2150MHz
• Signal level: -65dBm~-25dBm
• LNB supply: 13/18V, max 400mA
• LNB switch control: 22KHz
• Symbol rate: 2Mbps~45Mbps
• Resolution: 720 * 576, 720 * 480
• Video format: PAL/NTSC/SECAM
• MPEG audio: MPEG 1 layer 1&2
• Type: mono
• Sampling rates: 32, 44.1 and 48KHz
• Power supply: Li-ion battery 8.4V/3000mAh
• Input: AC 100-240V 50/60Hz
• Output: DC 12V
• Item size: 155 * 95 * 45mm / 6.1 * 3.7 * 1.8in
• Item weight: 500g / 1.1lb
• Package size: 203 * 154 * 59mm / 8.0 * 6.1 * 2.3in
• Package weight: 780g / 1.7lb

Package list:

• 1 * Satellite Finder

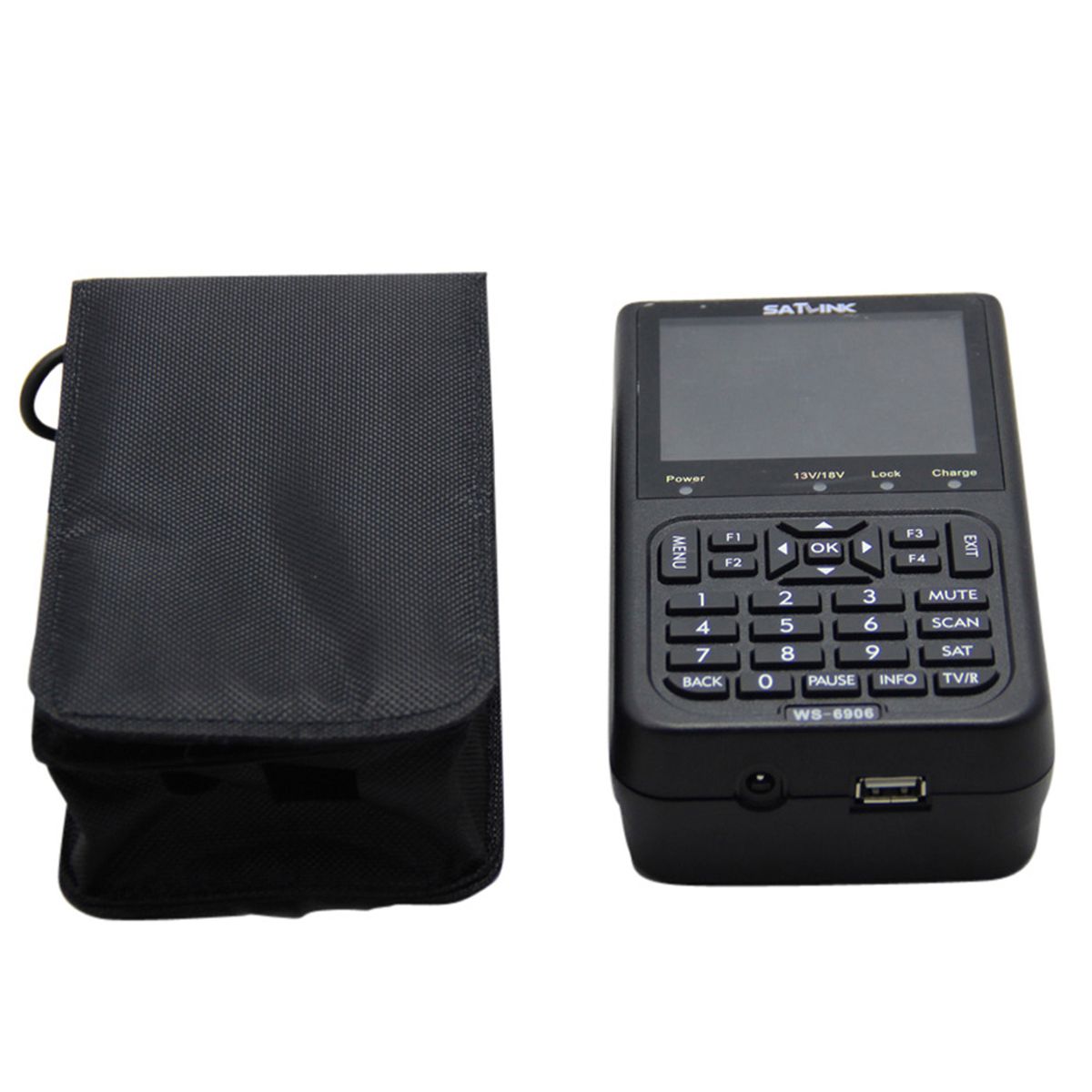

• 1 * Black Protective Bag
• 1 * Strap
• 1 * USB Upgrade Cable
• 1 * Car Charging

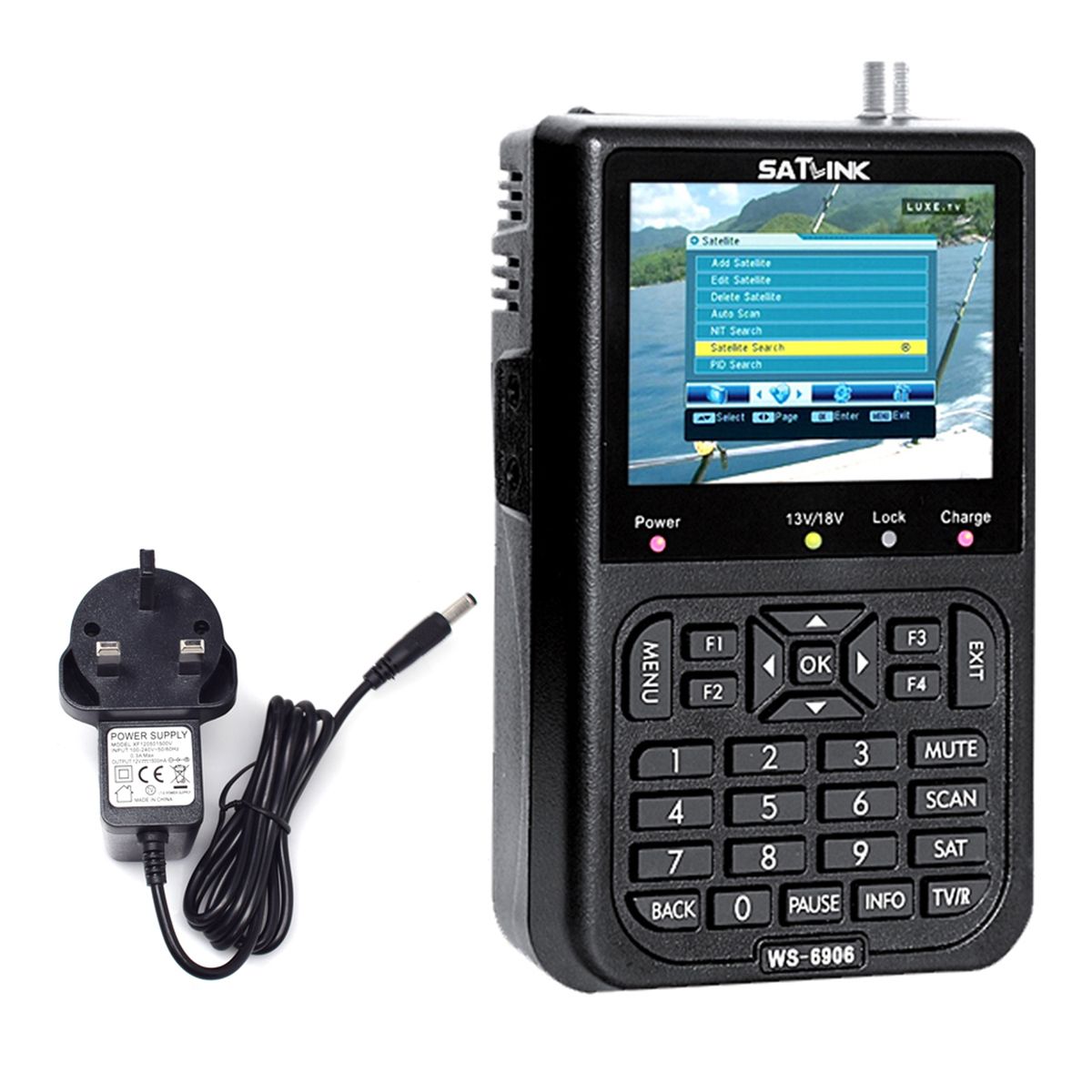

• 1 * Power Adapter
• 1 * AV Cable
• 1 * English User Manual

Key Features

Fine quality and stable performance.
3.5in LCD color display.
Easily and accurately aim your dish and view the channel while aiming the dish.
Watch the free channels.

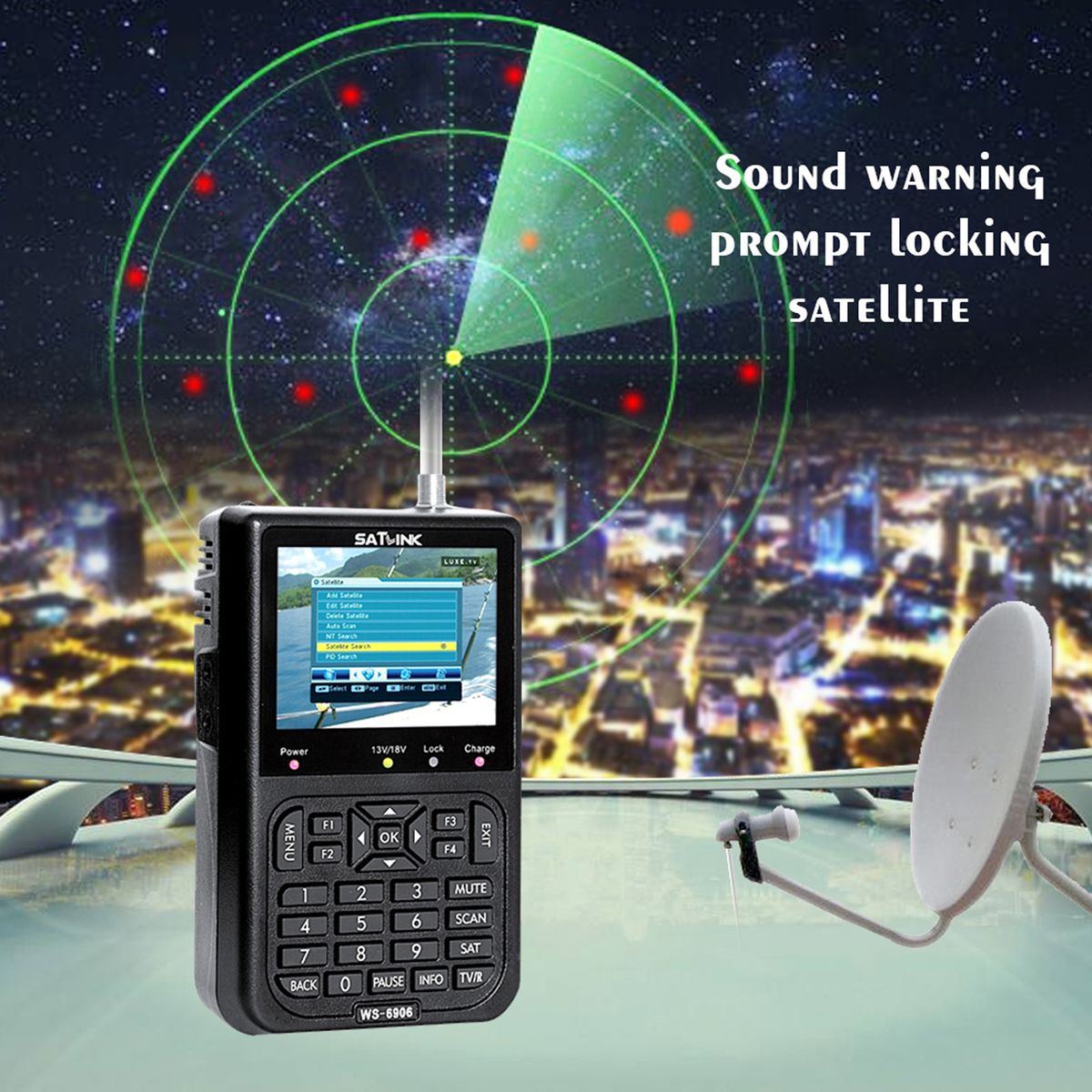

Sound warning prompt locking satellite.
Bit error rate readout.
Carrier to noise readout.
Easy and quick operation.
Supports AV OUT and AV IN function at the same time.
Special "Parent Lock" functions.
Matched with a protective bag and a car charger for easier outdoor using.

What's In the Box

• 1 * Satellite Finder
• 1 * Black Protective Bag
• 1 * Strap
• 1 * USB Upgrade Cable
• 1 * Car Charging
• 1 * Power Adapter
• 1 * AV Cable
• 1 * English User Manual
