BMS 5S 18.5V 12A 18650 - Lithium Protection Board Charge Boa

Discharge current: 12A
Charging current (same port): less than or to 10A
Main circuit conduction internal resistance: less than or to 20m ohm
Charging voltage: 21V Overcharge protection
Detection voltage: 4.25 +/- 0.025V
Detection delay: 100 +/- 50Ms
Release voltage: 4.15 +/- 0.1V
Over discharge protection
Detection voltage: 2.7 +/- 0.08V
Detection delay: 100 +/- 50MS
Release voltage: 3.0 +/- 0.1V
Overcurrent protection
Detection voltage: 100MV
Detection delay: 1000MS
Current protection: 20 +/- 3A
-consumption
Working power consumption: less than or to 20UA
Sleep over discharge power consumption: less than or to 10UA
Working temperature range: -30/+80℃
Colour: green
Material: PCB

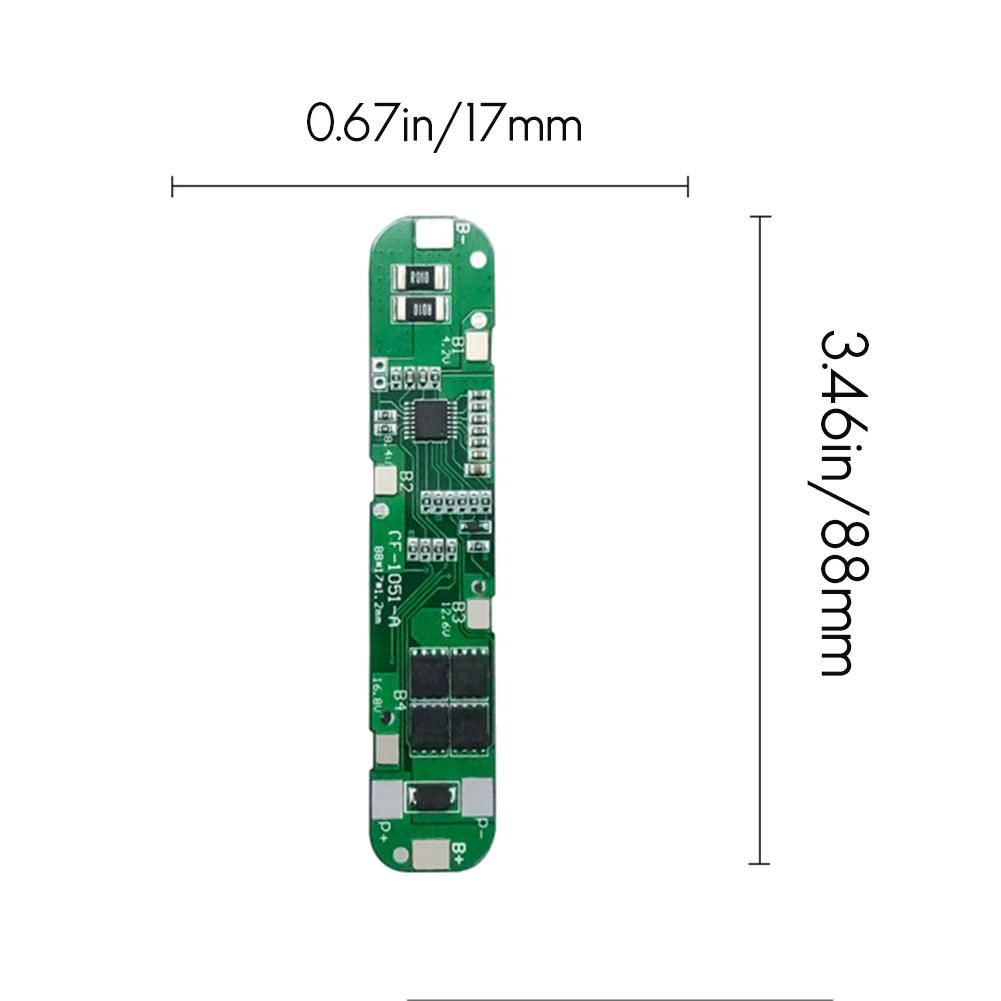

Size: 88x17x1.2MM Package Contents:
1 * Battery Protection Board Only the above package content, other are not included.
Note: Light and different displays may cause the color of the item in the a little different from the real . The measurement allowed error is +/- 1-3cm.

Key Features

Durable and good quality
Battery BMS Board
BMS 5S 18.5V 12A
Battery Protection Board
BMS Protection
BMS PCB Without Balance
The details are as described above

What's In the Box

1 * Battery Protection Board
