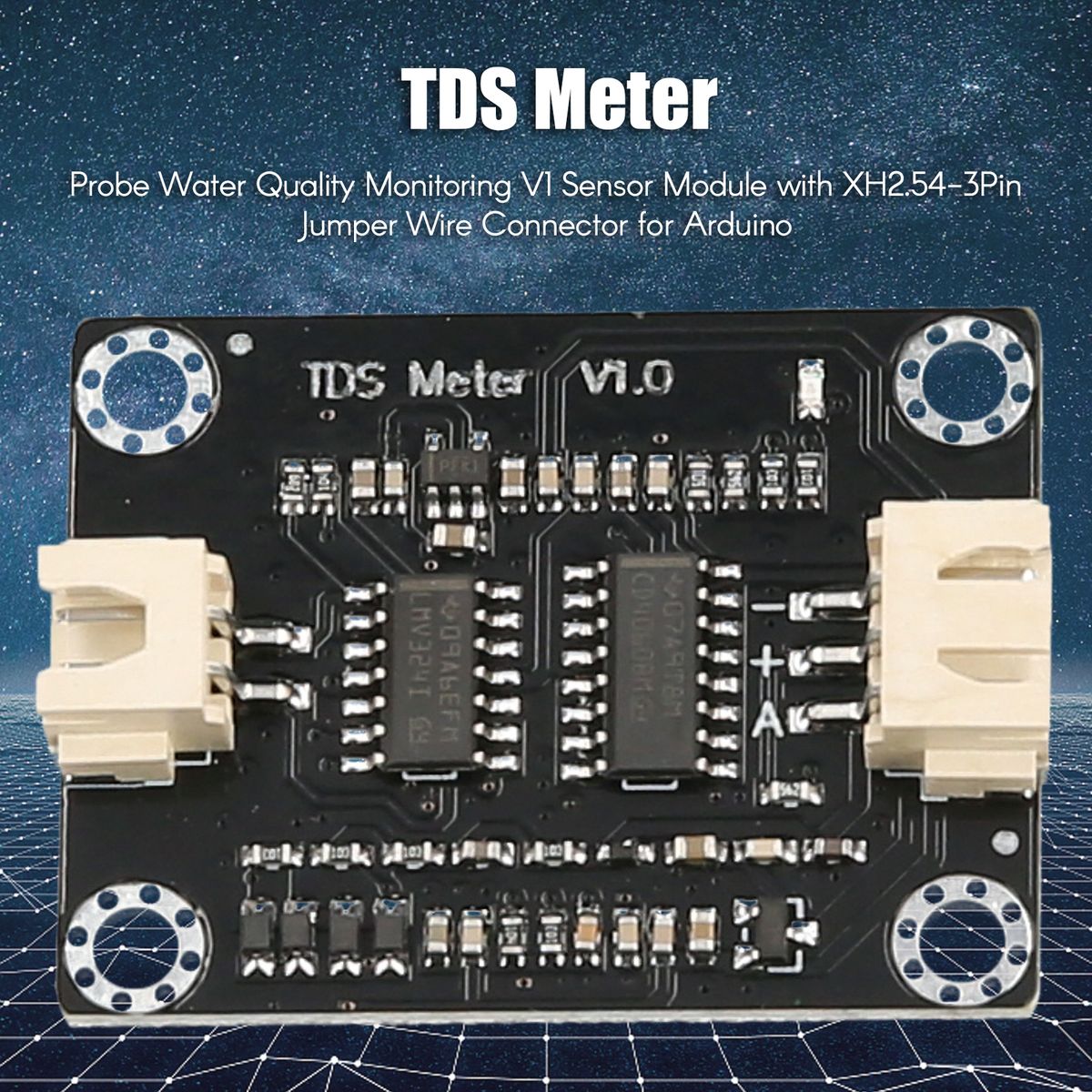

TDS Meter Probe Water Quality Monitoring V1 Sensor Module

Features:

It can be used for water quality testing in the field of domestic water and hydroponics.

Its Electrode can measure conductive materials, such as suspended solids, heavy metals and conductive ions in water.

This TDS Meter Probe is plug and play and easy to use. Also, the wide supply voltage of 3.3~5.5V and the analog signal.

The TDS value can be used as one of the basis for reflecting the cleanliness of water.

you can easily DIY a TDS detector, and easily check the cleanliness of the water to make your water quality better.

Specifications:

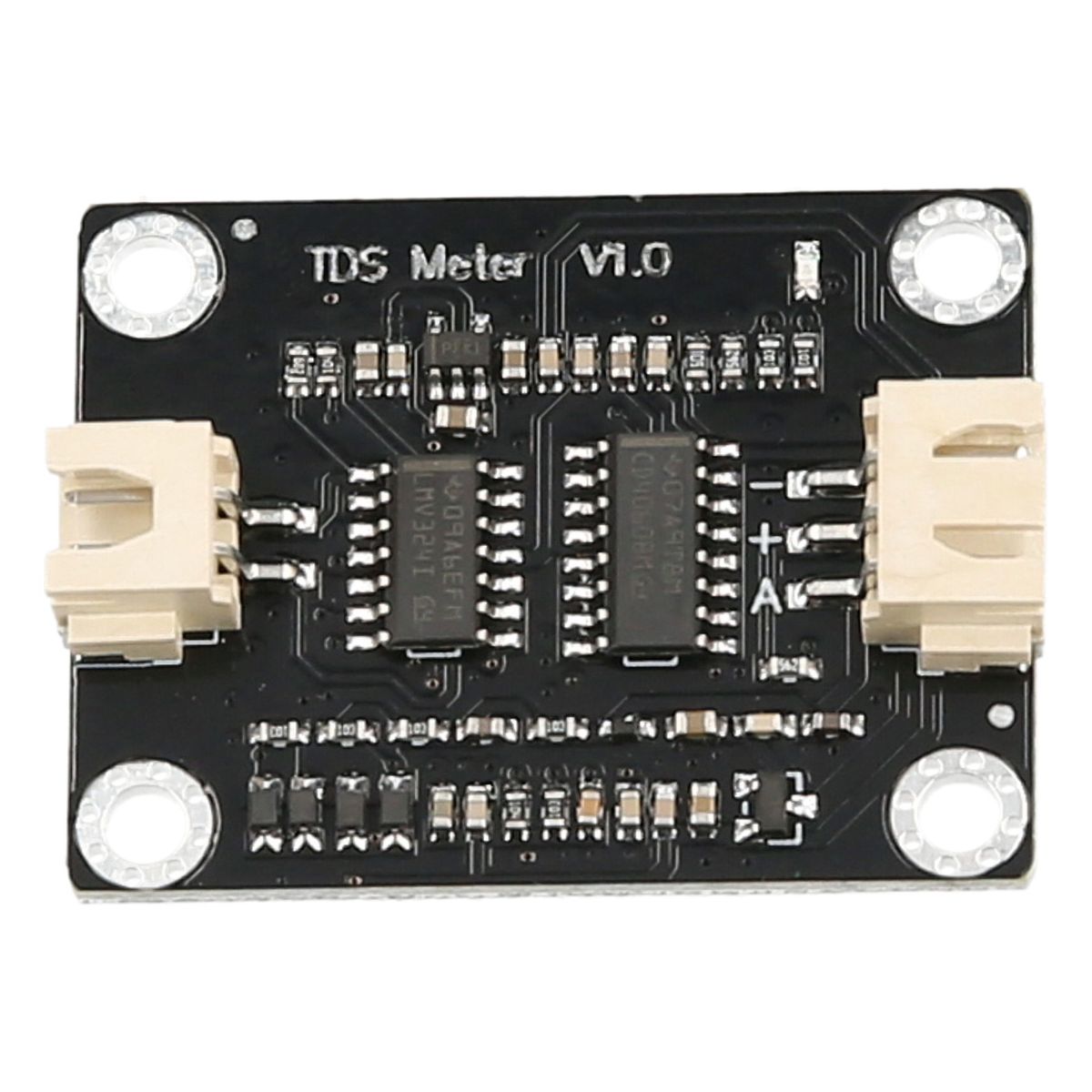

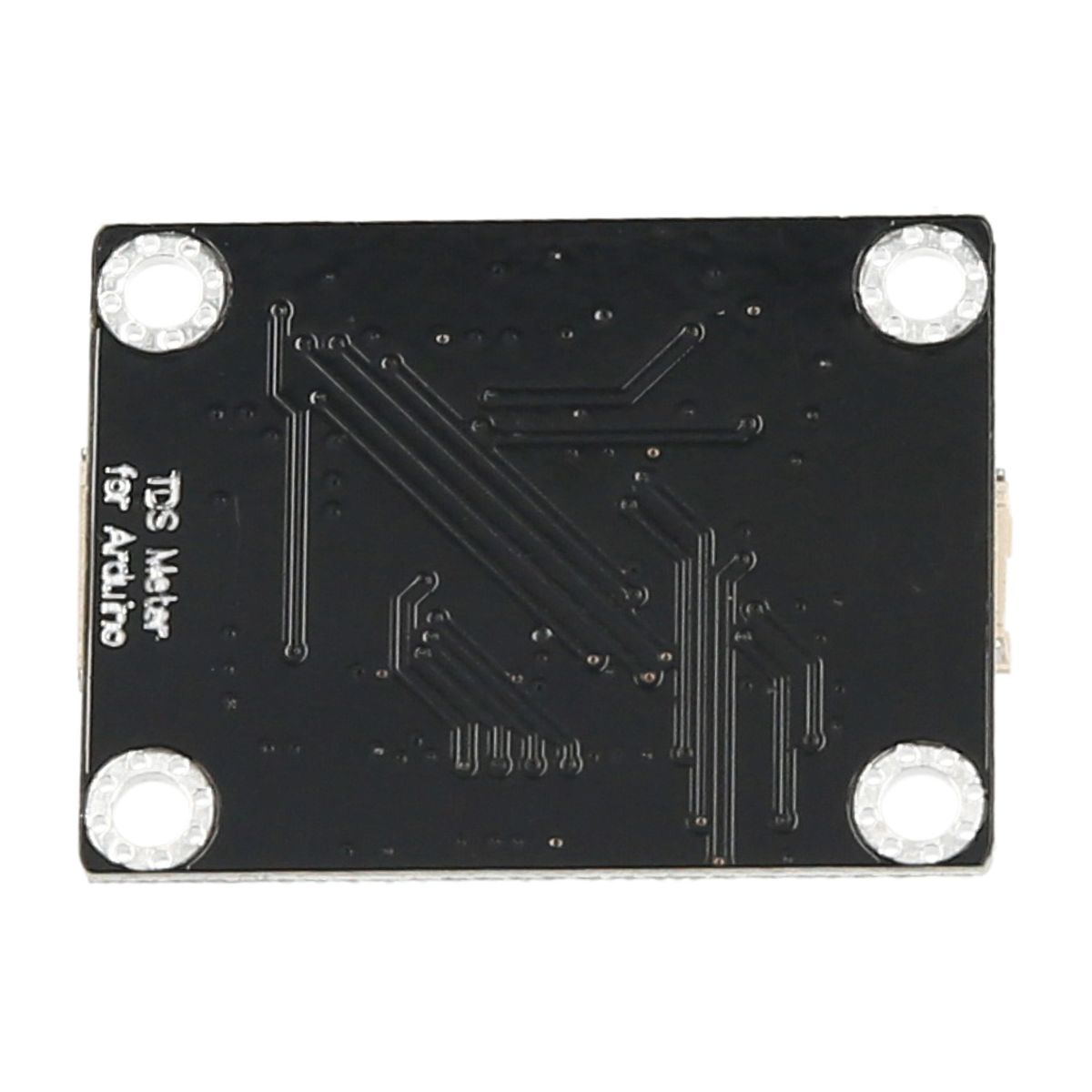

TDS Meter Sensor Module

Input Voltage: 3.3~5.5V

Output Signal: 0~2.3V

Working Current: 3~6mA

TDS Measurement Range: 0~1000ppm

TDS Measurement Accuracy: plusmn;10% F.S. (25 degrees Celsius)

Size: Approx. 42 x 32mm / 1.7 x 1.3 in

Module Interface: XH2.54-3P

Electrode Interface: XH2.54-2P

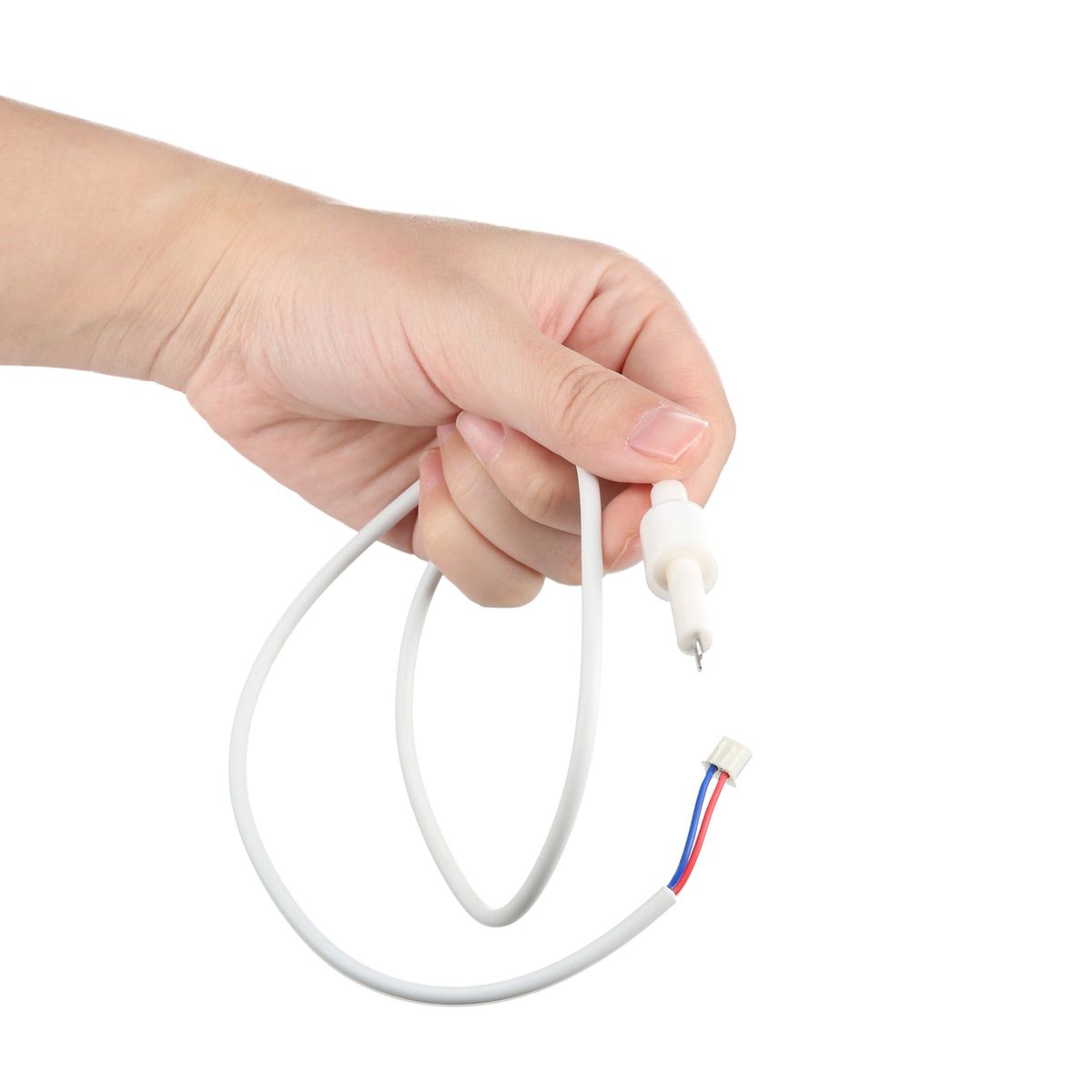

Waterproof TDS Sensor Probe

Number of Needle: 2

Total Length: 60cm

Connection Interface: XH2.54-2P

Package size:5x5x3cm

Package weight:24g

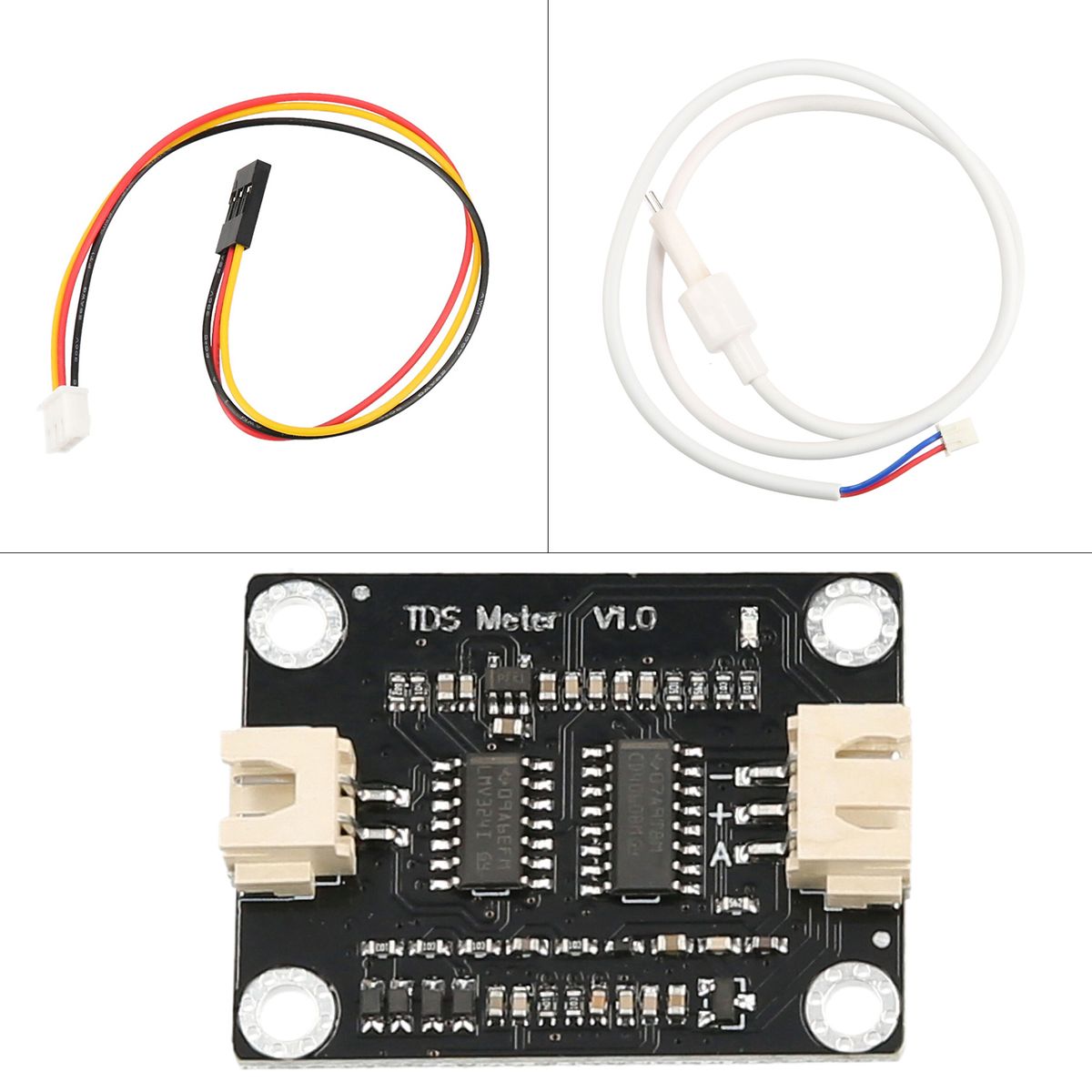

Packing List:

1 x TDS Meter V1.0 Sensor Module

1 x TDS Probe

1 x Jumper Wire

We confidently assure you'll be satisfied with what you get.However, If there's a chance that you are not satisfied with our goods or something else, please let us know before leaving us a Negative feedback. We will try our best for 100% customer satisfaction. Your 5-Star Positive Feedback is much appreciated to us, and your satisfaction is our greatest motivation to move forward.Welcome to Shop Here! Want more Items? Please come visit our SHOP.

*Shipping and Packaging All it will be double checked and well packed before sending.It will be dispatched within 5 business days after buyers pay for the order. It usually takes about 14 to 18 working days for delivering the package to the destination(for remote areas,it may take a little longer).Your satisfaction is our first priority.

*If you receive the order and it is in good condition,we would be grateful if you would leave us 5 star Positive Feedback for the transaction.

Key Features

It can be used for water quality testing in the field of domestic water and hydroponics.
Its Electrode can measure conductive materials, such as suspended solids, heavy metals and conductive ions in water.
This TDS Meter Probe is plug and play and easy to use. Also, the wide supply voltage of 3.3~5.5V and the analog signal.
The TDS value can be used as one of the basis for reflecting the cleanliness of water.
you can easily DIY a TDS detector, and easily check the cleanliness of the water to make your water quality better.
