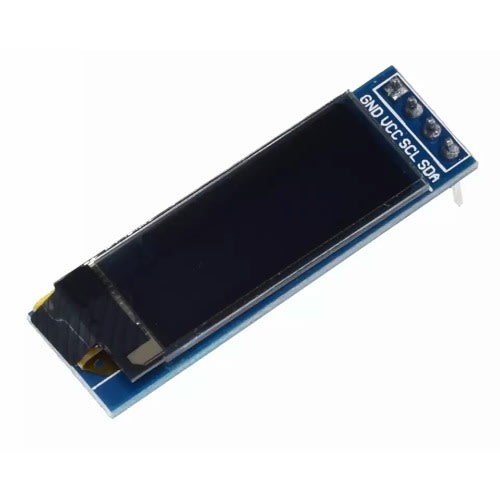

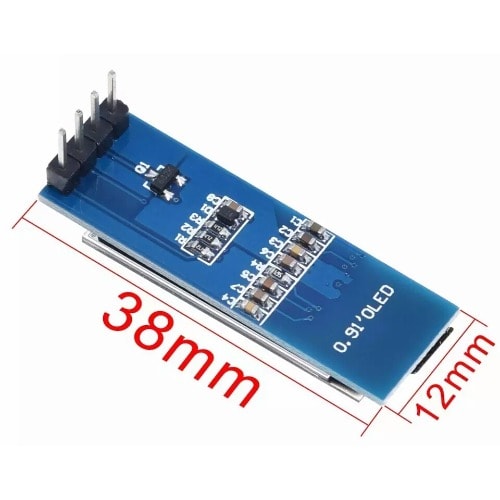

0.91" 4 Pin OLED Display Module
0.91" 4 Pin OLED Display Module
Get an estimate on delivery to your location.
- Pay by card, bank transfer or USSD at checkout
OLED 0.91 inch is a monochrome graphic display module with a built-in 0.91 inch, 128X32 high-resolution display. OLED 0.91inch is able to work despite the absence of backlight. In a dark environment, contrast of OLED display is higher than LCD display. This device is I^2C or SPI compatible. Due to its capability in displaying, it is often used in various application for instances, smart watch, MP3, function cellphone, portable health device and many others.
Specifications:
1. OLED display, no need backlight, self-illumination,
2. The display performance is better than the traditional LCD display, also lower consumption.
3. Driver IC: SSD1306
4. Size: 0.91 inch OLED
5. Resolution: 128 x 32
6. IIC interface
7. Display Color: white
8. Description:
GND: Power Ground
VCC: Power + (DC 3.3 ~5v)
SCL: Clock Line
SDA: Data Line
