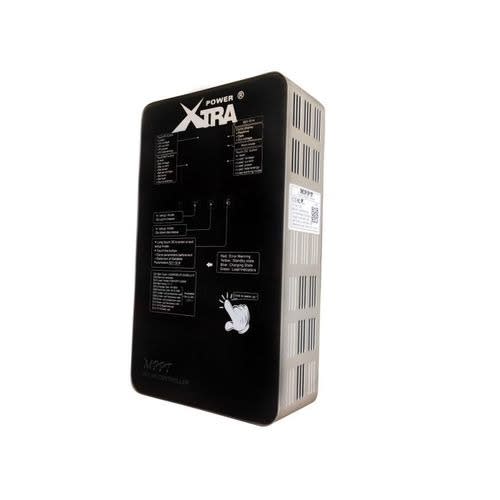

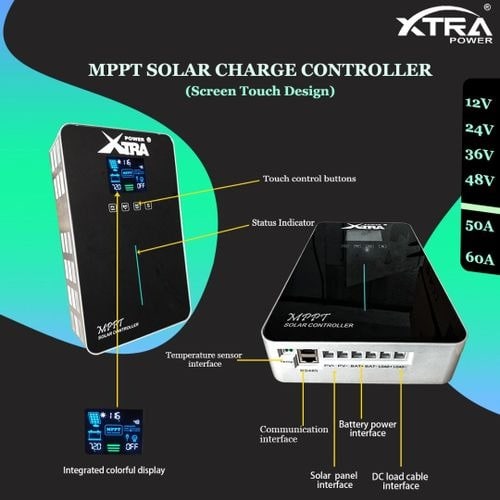

Xtrapower Mppt Touch Screen Charge Controller - 48v - 80a

XTRA POWER MPPT TOUCH SOLAR CHARGE CONTROLLER

Xtrapower Mppt Touch Screen Charge Controller 12v/ 24v/ 48v 80a

• Efficient MPPT controller algorithm, overall efficiency>98%
• 12V/24V/36V/48V/60V/72V/84V/96V system automatically recognizes
• Three-stage charging method: constant current, constant voltage, floating charge, extending battery lifetime
• solar panel open circuit voltage to be at most DC150V(80A/100A 250VDC)
• Battery type (lead-acid battery, gel battery, LifePo4, ternary lithium) and charging current can be selected, charging parameters can also be customized to charge other types of batteries
• With current limiting charging function, when the PV power is too high, the controller automatically maintains the charging power, and the charging current will not exceed the rated value;
• Operating data and working status can be read on the LCD display in real time
• Rs485 communication, convenient for integrated management and secondary development
• Supports mppt controller wifi/bluetooth model for monitoring on phones, tabs, Pc etc...

The warranty period is 2 years.
