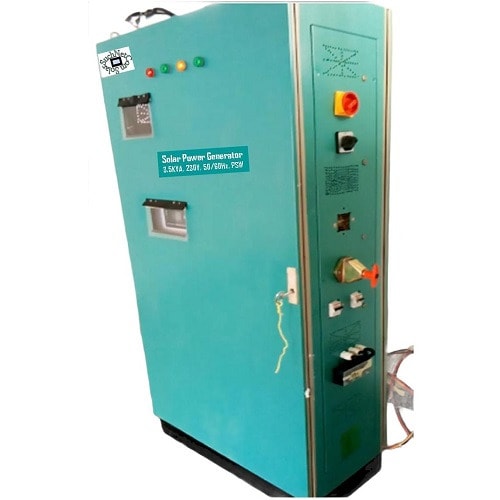

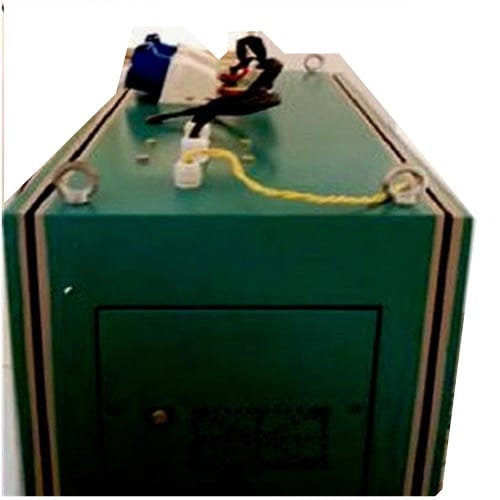

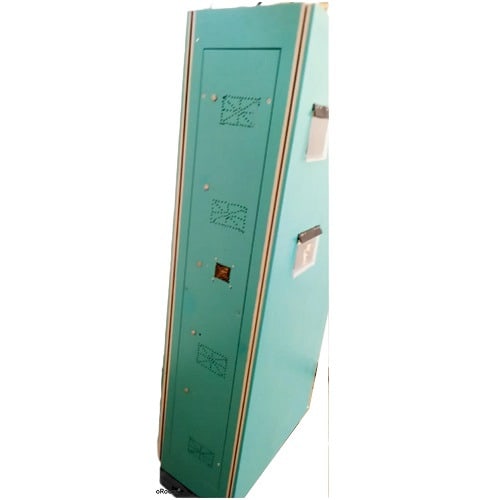

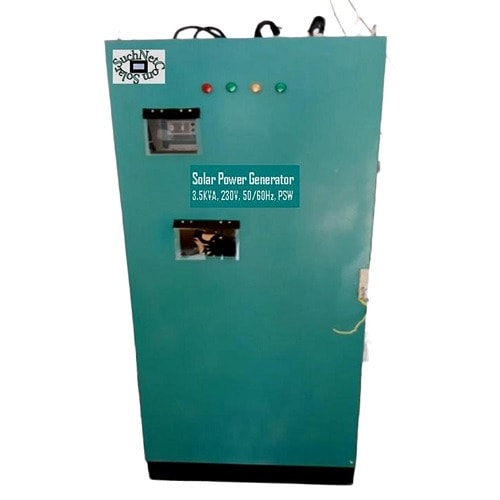

Solar Power Generator - 3.5kva 230V 50Hz - Model SNCS3.5K

3.5KVA PLUG-AND-PLAY SOLAR POWER GENERATOR (3.5KVA PPSPG) - Model SNCS3.5K

Note (1): The 3.5KVA PPSPG is entirely the deisgn of Suchnetcom Solar Ltd; prototyped, manufactured and couopled in our factory in Nigeria. This system is deisgned to most suit our tropical application, and
can be used in any terrestrial location around the World. This power generator is not submersible in any form of liquid.

The PPSPG is our brand name and are available in capacities of 300VA, 500VA, 1.5KVA, 2.5KVA, 5KVA, 7KVA and 10KVA. To learn more visit us at www.suchnetcomsolar.com.

The 3.5KVA PURE SINE WAVE PPSPG is an integrated onboard power electronic circuitry inbuilt with
inverter, charge controller, battery, safety units, humidity control fan, external switching unit and external battery connector to increase capacity and load runtime as may be desired. The PPSPG does have external connector block for additional batteries, with weatherproof male/female plugs for AC input/output power lines, including an external wire link for incoming DC voltage from solar panel.
The solar power generator comes with 3 units of 300W (3x300W) monocrystalline solar panels, with an
option of increasing panel capacity from 900W to 1800W. Additional 50 meters of 10mm2 red/black
color and 50 meters of 1.5mm2 yellow earth copper wires are included. The PPSPG is safe, reliable and
provides excellent performance over a wide range of condition due to its ruggedness in nature. The PPSPG is designed with onboard LCD and Seven segment display capability for easy management and control settings. It has both 230V/50Hz AC and a 24VDC supply inputs. The AC input takes wide voltage range of 140-275Vac at 45-65Hz with auto tracking capability and automatic switching transfer time of less than 2 miliseconds. While AC output is of 230V (+/-2%) at 50/60Hz (+/-1%) pure sign wave (PSW). It has overload, over-current, short-circuit and over temperature protection capability. The Solar Power Generator acceptable temperature range is from -10 to +40 degree celsius, with humidity level of less than 40% and noise level is less than 55 decibel. It can be used in any location even in remote villages.

The 3.5KVA PPSPG has the capacity to power 15x6watt LED bulb, 2x20watt LED Floodlight, 1x125watt TV set, 1xdstv TV decorder, 4x80watt fan, 1x2HP borehole pump. I can also power up other home and office equipment and appliances defined within its power range.

Note (2): The 3.5KVA PPSPG is currently out of stock. Lead time of manucture per 10 units is 28 working days. Per unit order takes much lesser time to deliver.
