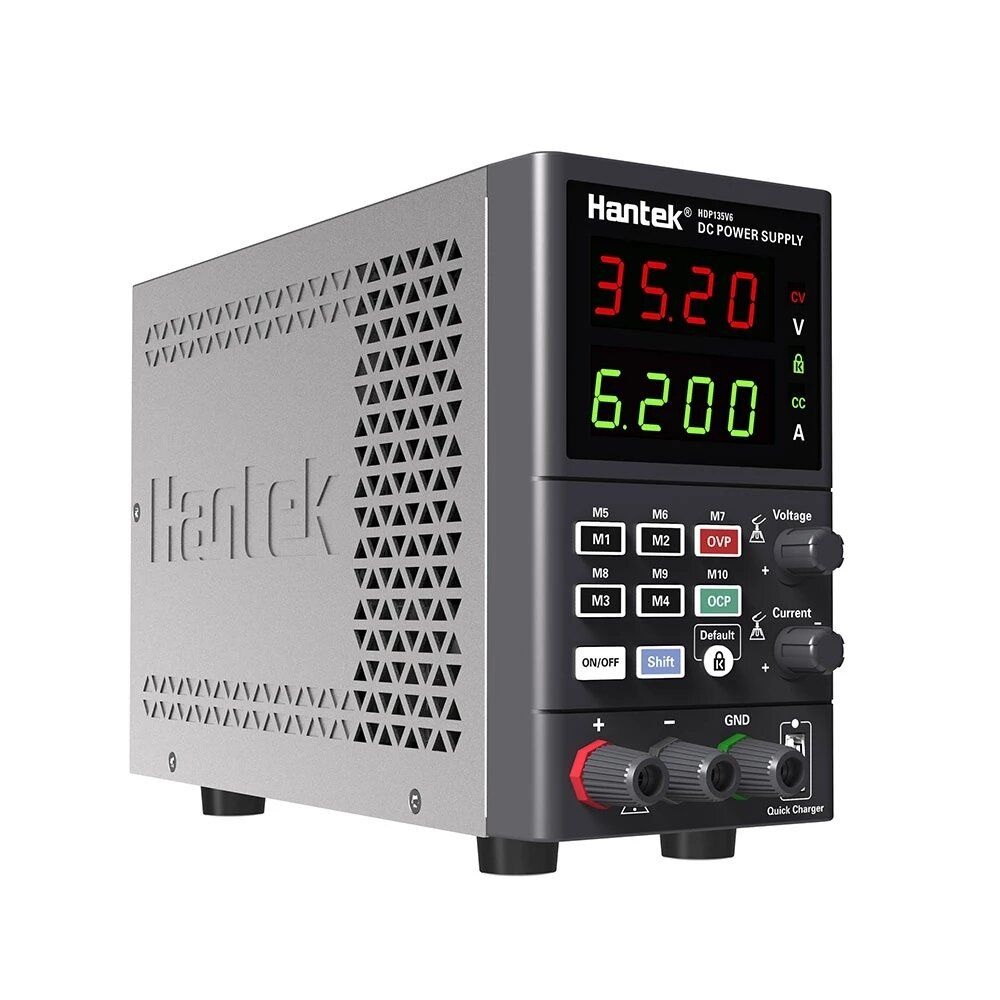

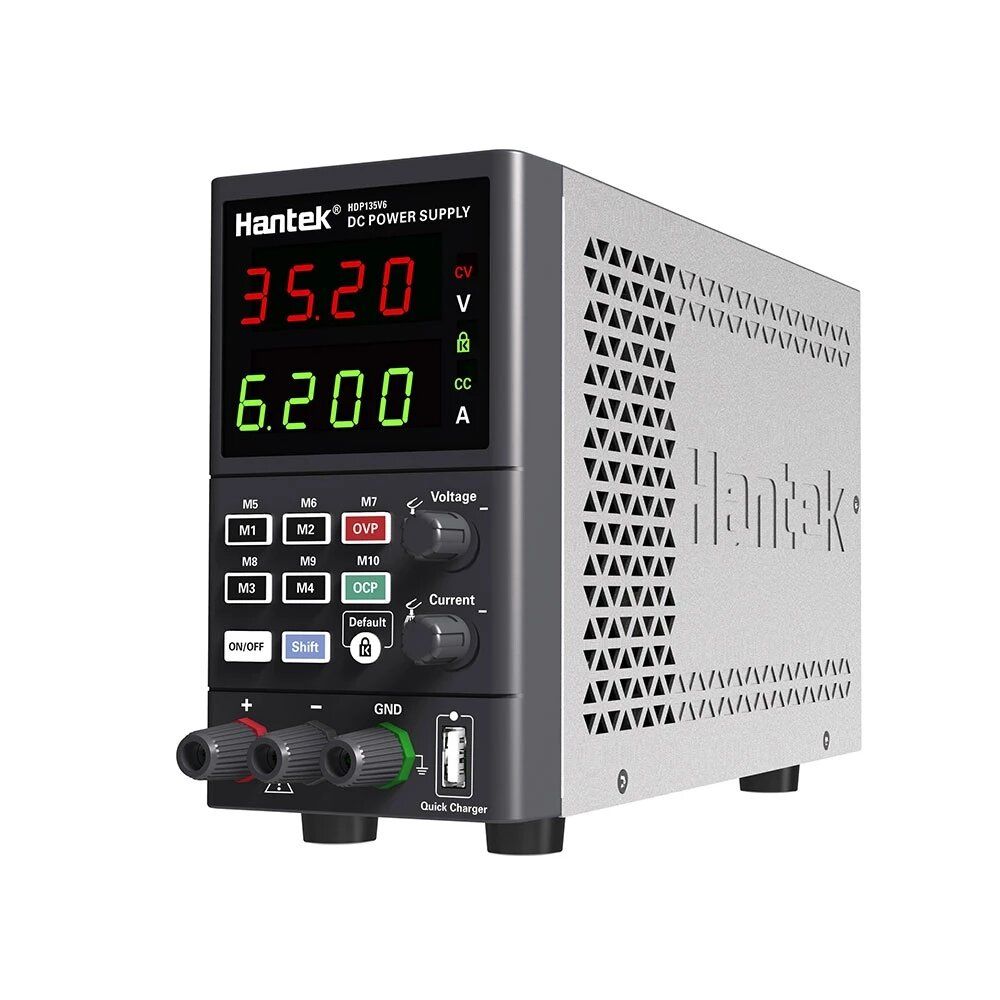

Hantek 35V/6A LED Digital Adjustable DC Power Supply Lab

Description:

HDP10000 Series

Four-digit display voltage and current, resolution up to 10mV/1mA; Standard USB quick charge function, support a variety of quick charge protocols; Storage functions up to 10 groups; AC input voltage 230/115V switch, universal; Fully isolated serial port , software support multiple power supply control, easy to set up measurement and control or aging system; Over voltage, over current, overload, overheating, short circuit protection functions; Low noise temperature control fan, quiet and durable; 35V/6A output is stable and pure; On/Off output control, one-button panel lock function to prevent misoperation. It is an ideal power supply for laboratory, production line and home appliance maintenance.

Features:

-Four digit display voltage and current, resolution up to 10mV/1mA;

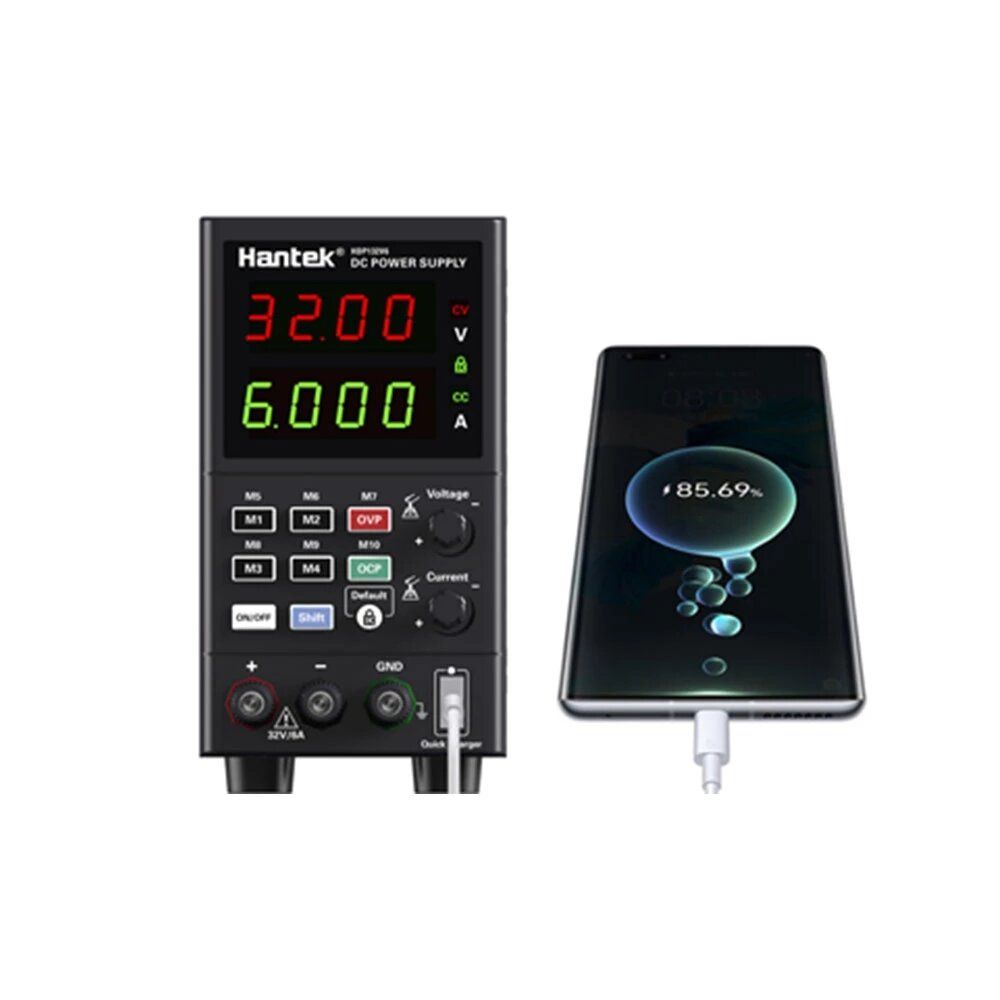

-Standard USB quick charging function, 5-12V output, supporting a variety of quick charging protocols;

-10 groups of data storage/retrieval functions;

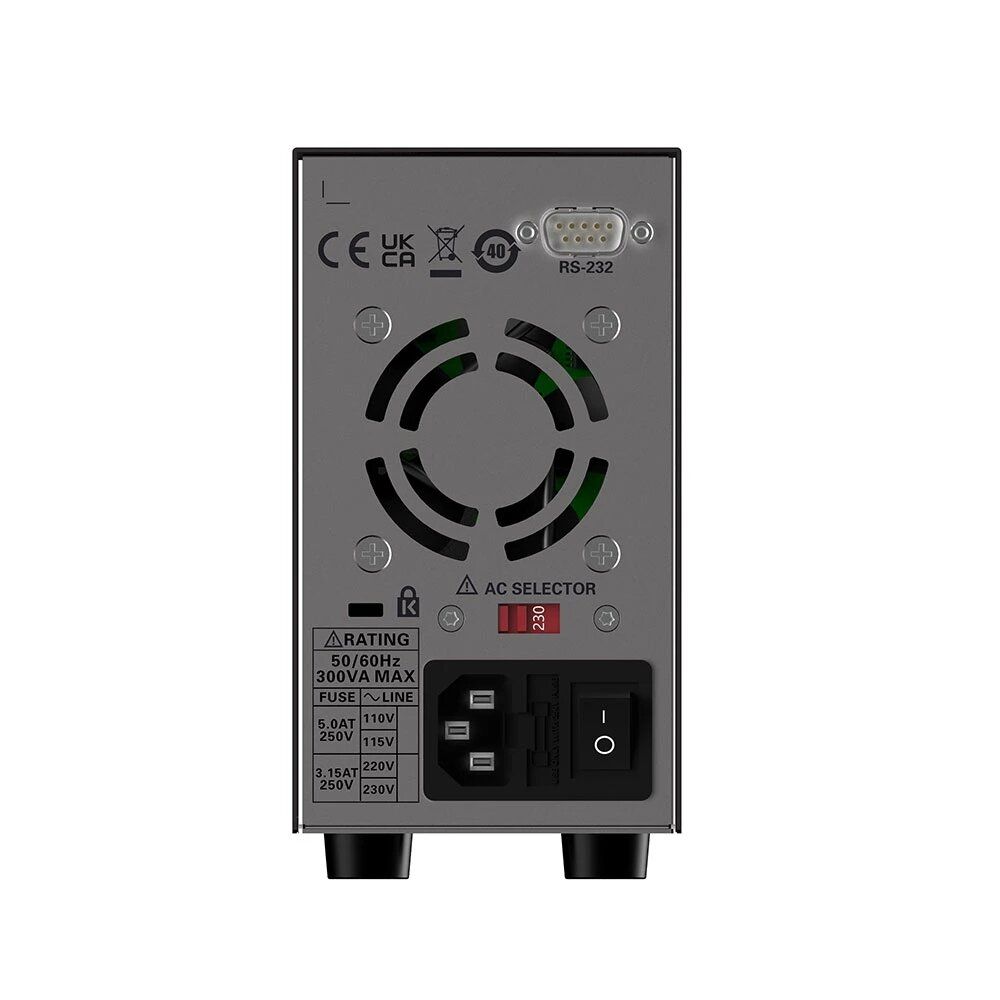

-AC input voltage 230/115V switch, universal;

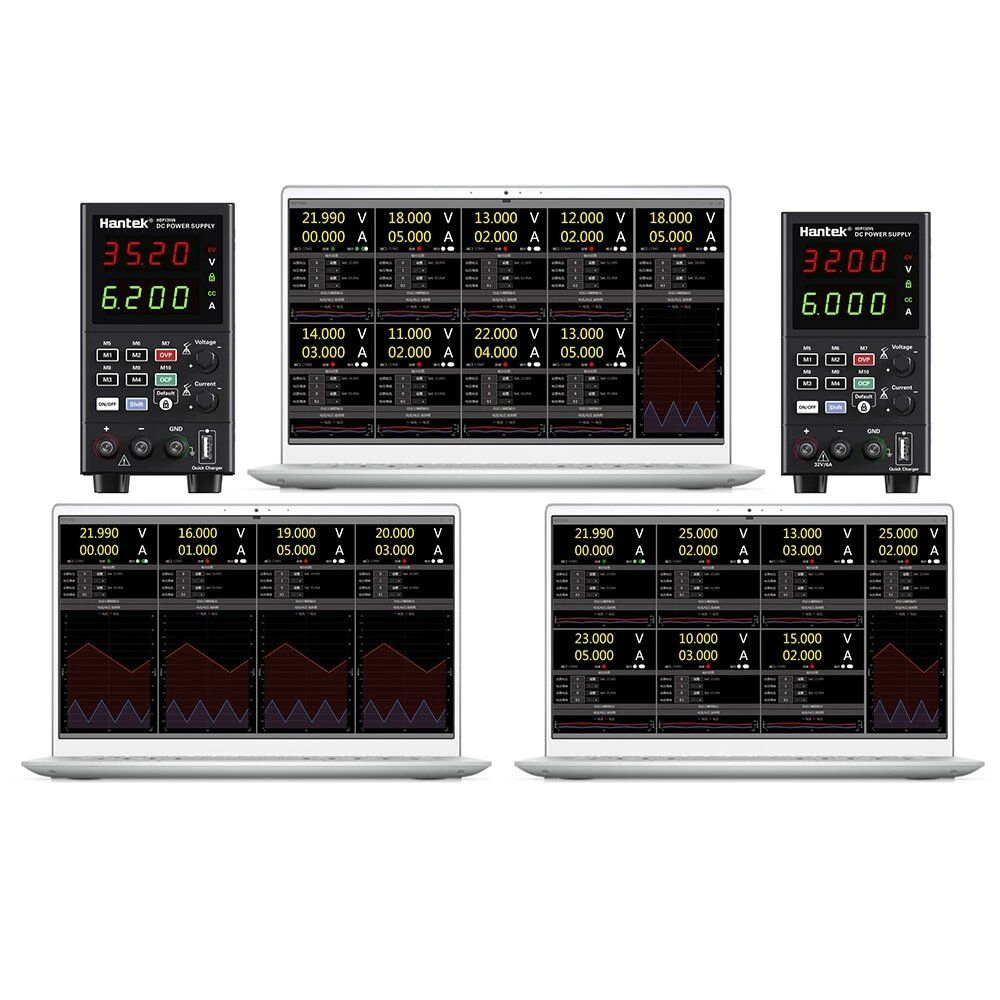

-Fully isolated serial port, software support multiple power supply control, easy to set up measurement and control or aging system;

-Over voltage, over current, overload, overheating, short circuit protection functions;

-Low noise temperature control fan, quiet and durable;

-35V/6A output is stable and pure; On/Off output control, one-key panel lock function to prevent misoperation;

-Constant voltage (CV)/ constant current (CC) mode automatic switch, effectively protect the circuit;

-Two-stage adjustment topology, no impact on the load when the power is turned on;

-Ultra-thin body, light and easy to carry, excellent indicators, excellent quality, stable performance, strong durability.

Specification:

Model

HDP135V6

HDP135V6S

HDP135V6A

HDP135V6B

Channel

1CH

Storage

10 Groups of data

Output voltage/current

35V/6A

Input voltage

120 Vac plusmn; 10%, 220 Vac plusmn; 10%, 50/60Hz

220 Vac plusmn; 10%, 50/60Hz

110 Vac plusmn; 10%, 50/60Hz

Maximum output power

210W

Communication interface

None

RS232

None

None

Voltage

Load regulation

le;0.1% + 5 mv

Linear regulation

le;0.01% + 5 mv

Set resolution

10mV

Set precision

le;0.1% + 1 digits

Read back resolution

10mV

Read back accuracy

le;0.1% + 1 digits

Ripple

10mVrms

Current

Load regulation

le;0.2% + 3mA

Linear regulation

le;0.2% + 3mA

Set resolution

1mA

Set precision

le;0.2% + 3mA

Read back resolution

1mA

Read back accuracy

le;0.2% + 3 digits

Ripple

5mArms
