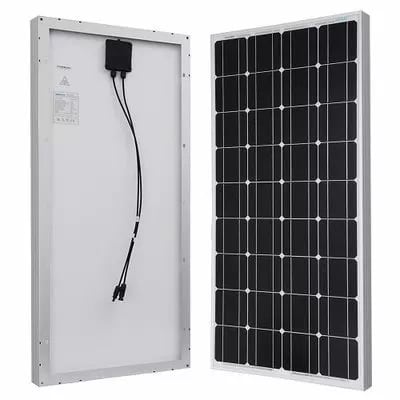

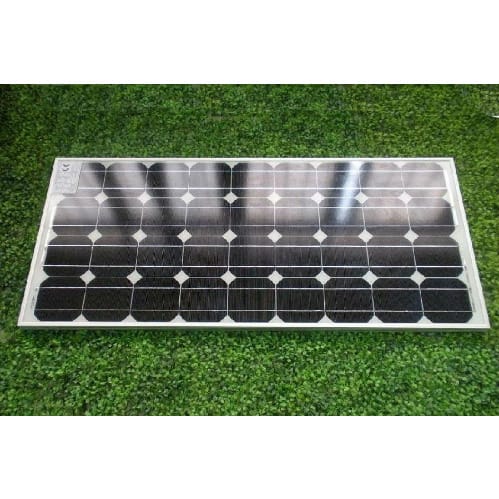

Suntech Solar 200w Mono Pv Solar Panel
Suntech Solar 200w Mono Pv Solar Panel
Get an estimate on delivery to your location.
- Pay by card, bank transfer or USSD at checkout
Electrical Characteristics:
| Item No. | XRM-250W |
| Optimum Operating Voltage (Vmp) | 28.8V |
| Optimum Operating Current (Imp) | 8.68A |
| Open Circuit Voltage (Voc) | 36V |
| Short Circuit Current (Isc) | 8.87A |
| Maximum Power at STC (Pmax) | 250W |
| Cell Efficiency | 17.70% |
| Operating Module Temperature | -40 °C to +85 °C |
| Maximum System Voltage | 1000 V DC (IEC) / 600V DC (UL) |
| Maximum Series Fuse Rating | 15A |
| Power Tolerance | 0/+5 % |
Mechanical Characteristics:
| No. of Cells | 60(6X10) |
| Dimensions | 1640x992x40MM |
| Weight | 20.0KGS |
| Front | Glass 4.0 mm tempered glass |
| Frame | Anodized aluminium alloy |
| Place of Origin: | China (Mainland) | Brand Name: | CNBM | Model Number: | XRP-156M-250W |
| Material: | Monocrystalline Silicon | Size: | 1620x992x40mm | Number of Cells: | 60 |
| Max. Power: | 250w | Optimum Operating Voltage (Vmp): | 28.8V | Optimum Operating Current (Imp): | 8.68A |
| Open Circuit Voltage (Voc): | 36V | Short Circuit Current (Isc): | 8.87A | Maximum Power at STC (Pmax): | 250W |
| Operating Module Temperature: | -40 ° C to +85 °C | Maximum System Voltage: | 1000 V DC (IEC) / 600V DC (UL) | Maximum Series Fuse Rating: | 15A |
