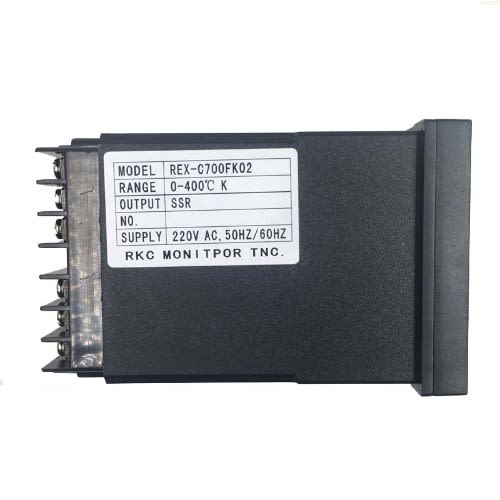

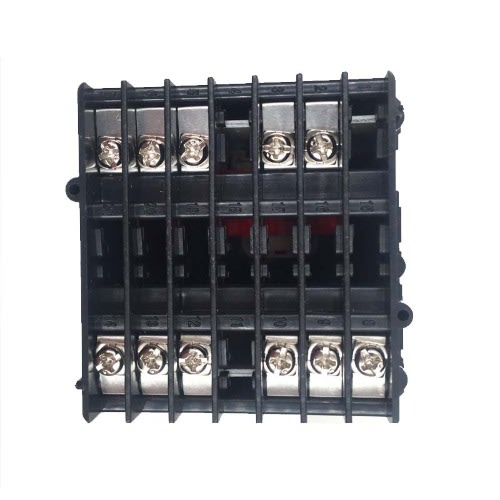

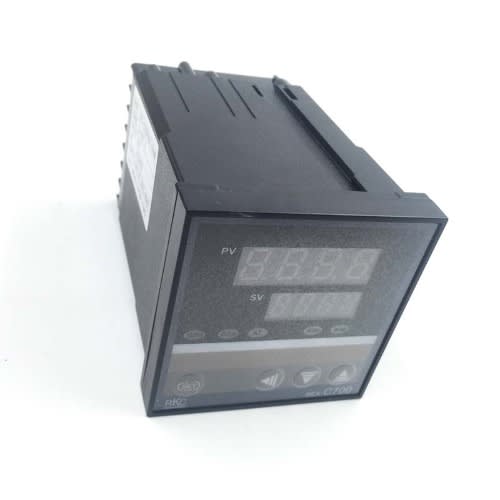

Digital Temperature Controller - Rkc-rex-c700 Thermocouple-input Rely - Output 72*72mm

Digital Temperature controller RKC-REX-C700

Thermocouple PT100, K Universal Input Relay Output 72*72mm

Input: Thermocouple

Output: Relay

Alarm: 1

Range: 0-400C

Power: 100-240V AC, 50HZ/60HZ

PRODUCT FEATURES:

• Dual display for both set temperature and process temperature.
• Size, 72*72.
• Universal input, support 10 different types of thermocouple and RTD inputs by customers selected at panels.
• Upper limit bias alarm.
• Auto-tune function can find the best PID parameter automatically.
• Displays temperature in Celsius
• Four digits LED display can go up to “9999”
• Can be powered by either DC or AC power source.
• Uses if for Kiln, Furnace, Oven, and Incubator temperature control.
• It is used in various industries to control and monitor process temperatures.

CAUTIONS:

• Only clean the instrument when power off.
• Please use soft cloth or cotton Paper to clean up the stain on the display.
• Do not clean up or touch the display by hard matter in case of any scratch.
• Never use sharp & hard matters such as screwdriver or ball pan to touch the buttons on the panel in case of ant scratch or damage.
