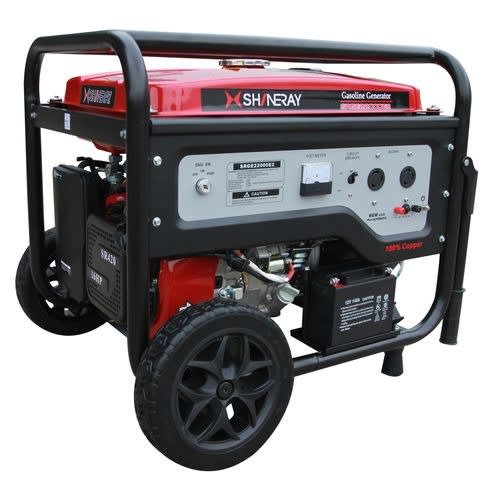

Shineray 7.5kva Automatic Start Generator - SRGE22000E2
Shineray 7.5kva Automatic Start Generator - SRGE22000E2
Get an estimate on delivery to your location.
- Pay by card, bank transfer or USSD at checkout
MODEL SRGE22000(E2)
Product Details
SR190F/P ENGINE
SINGLE CYLINDER
FOUR STROKE
AIR COOLED25°OHV
ENGINE TYPE 90×66mm
BOREXSTROKE
T.C.L IGNITION TYPE\RECOIL START/
ELECTRIC START
STARTING TYPE DISPLACEMENT(cc) 420
OIL CAPACITY(L) 1.1
RATED POWER(KW) 6.5
MAX POWER(KW) 6.
RATED VOLTAGE(V) 230
RATED FREQUENCY (HZ) 50
GENERATOR POWER FACTOR
FUEL CAPACITY(L)25
NOISE dB(A)96
CONTINUOUS RUN TIME(h)9
CONSUMPTION RATE OF FUEL(g/K.W.h)≤370
MEASUREMENT(mm)700×540×580
NET WEIGHT(Kg)80(84).
Box Content
Generator Set, Funnel, 2Plugs and Plug spanner
Care Label.
The supporting pad is designed to make the motor free of external impact or shaking during transportation;
End users must remove or lose the supporting pad before use.
Eccentric rotation or excessive wear might occur and cause damage to the motor, if te generator runs frequently without the removal of the support pad.
The generator must be placed in an open area; any fences might cause inadequate venting and cause the accommodation of thermal generated from the exhaust pipe and lead to a risk of generator burning.
Lubricant oil/Engine Oil: Lubricant oil spec (SJ/SE) or above is preferred. Model (15w-40) and quality oil brands are required. Ø Replace oil after 20 hours at first use and replace it every 50 hours for commercial use and every 100 hours for family use.
