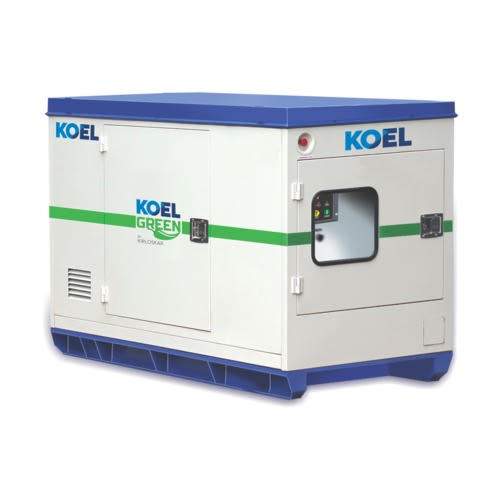

15kva Kirloskar Generator
15kva Kirloskar Generator
Get an estimate on delivery to your location.
- Pay by card, bank transfer or USSD at checkout
Air and liquid-cooled Gen Sets, Low noise pollution, Low diesel consumption, Low maintenance, Durable and Affordable. with 365 days warranty. It can be used at home and in different organizations. with Kirloskar Generator, you are assured of value for your money.
Product Specifications
| Prime Rating at rated rpm ( as per ISO8528) | kVA | 5 | 7.5 | 10 | 12.5 | ||
| kW | 4 | 6 | 8 | 10 | |||
| Genset Model |
| KG1-5AS3 | KG1-7.5AS4 | KG1-10AS5 | KG1-12.5AS2 | ||
| Frequency | Hz | 50 | |||||
| Power factor | lagging | 0.8 | |||||
| Voltage | V | 230 (1Ø) & 415 (3Ø) | |||||
| Governing class (As per ISO 8528 Part-V) |
| G2 | |||||
| Noise level | dBA | < 75 | |||||
| Fuel Consumption* | At 100% Load | Ltrs/hr | 1.60 | 2.21 | 3.00 | 3.45 | |
| At 75% Load | 1.30 | 1.62 | 2.40 | 2.65 | |||
| At 50% Load | 1.0 | 1.21 | 1.80 | 1.94 | |||
| Fuel tank capacity | Ltrs | 50 | 50 | 50 | 50 | ||
| Weight of genset with canopy (approx..)^ | Dry | Kg | 670 | 680 | 750 | 840 | |
| Wet | Kg | 720 | 730 | 800 | 890 | ||
| Overall dimensions of genset^ | Length | mm | 1310 | 1310 | 1760 | 1760 | |
| Width | mm | 810 | 810 | 820 | 820 | ||
| Height | mm | 1330 | 1330 | 1330 | 1330 | ||
| Electrical Battery starting voltage | Volts-DC | 12 | |||||
| ENGINE | |||||||
| Engine Model |
| EA10 G1 | EA10 G1 | EA16 G1 | EA16 G1 | ||
| Rated output (Prime Continuous rating as per ISO 8528-1) | kW | 7.3 | 7.3 | 11.8 | 11.8 | ||
| HP | 10 | 10 | 16 | 16 | |||
| Cooling System | Air | ||||||
| No. of cylinder | Number | 1 | 1 | 2 | 2 | ||
| Cubic capacity | Ltrs | 0.95 | 0.95 | 1.56 | 1.56 | ||
| Bore x Stroke | mm | 102 x 116 | 102 x 116 | 95 x 110 | 95 x 110 | ||
| Rated Speed | RPM | 1500 | 1500 | 1500 | 1500 | ||
| Aspiration | NA/TC/TA | NA | NA | NA | NA | ||
| Lube Oil change period | Hrs | 500 hrs | |||||
| Lube Oil Sump Capacity | Ltrs | 3.5 | 3.5 | 6.5 | 6.5 | ||
| Coolant Capacity | Ltrs | NA | NA | NA | NA | ||
| ALTERNATOR | |||||||
| Insulation Class |
| Class H | |||||
| Alternator Efficiency (at 100% load) 0.8 pf** | % | 78.1 | 82.5 | 82.6 | 84.9 | ||
| Max Voltage Dip at Full Load 0.8 pf Lag | Sec | < 20% | |||||
| Max Time to build up rated voltage at Rated RPM | < 5 sec provided engine reach the rated speed | ||||||
