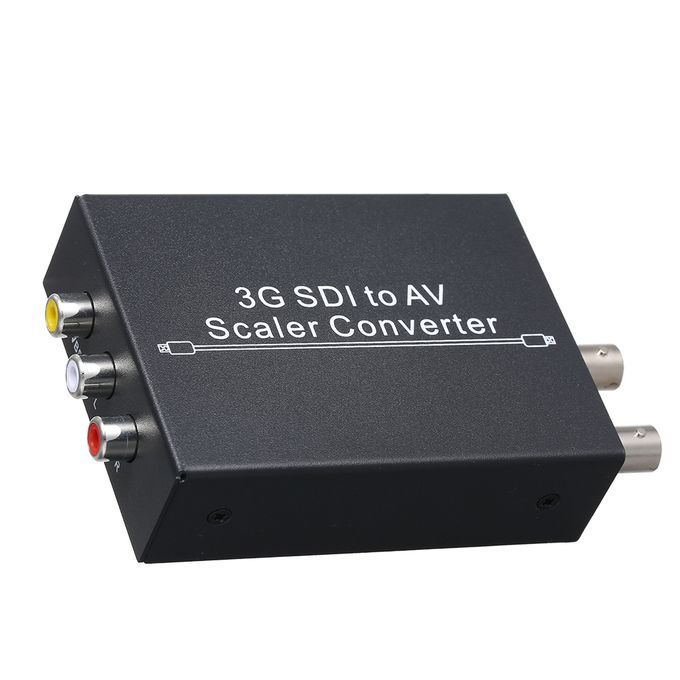

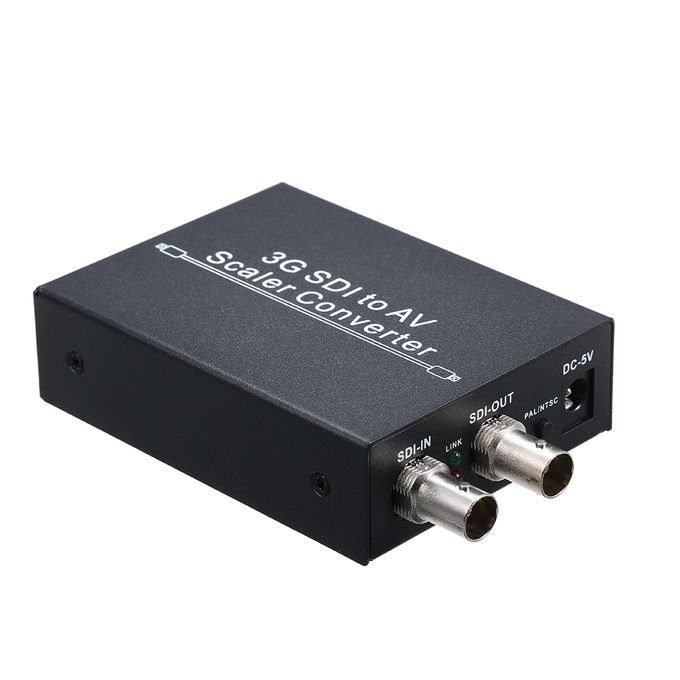

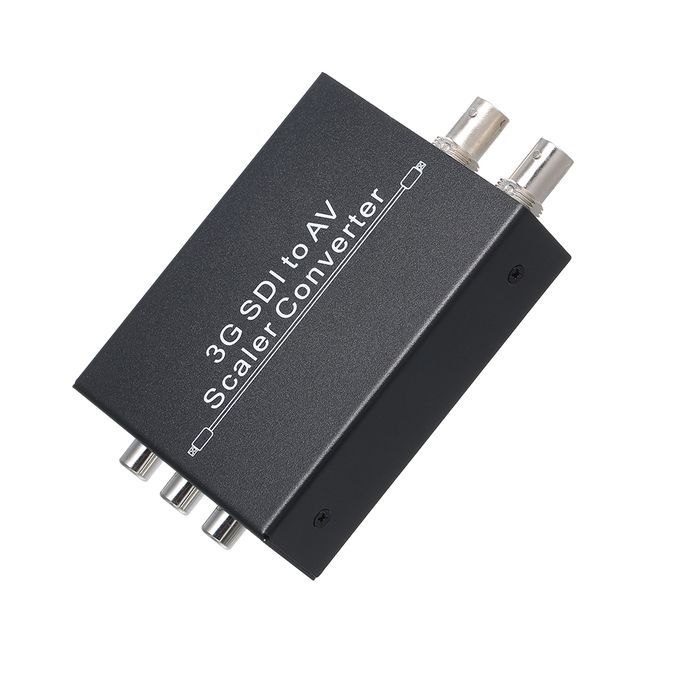

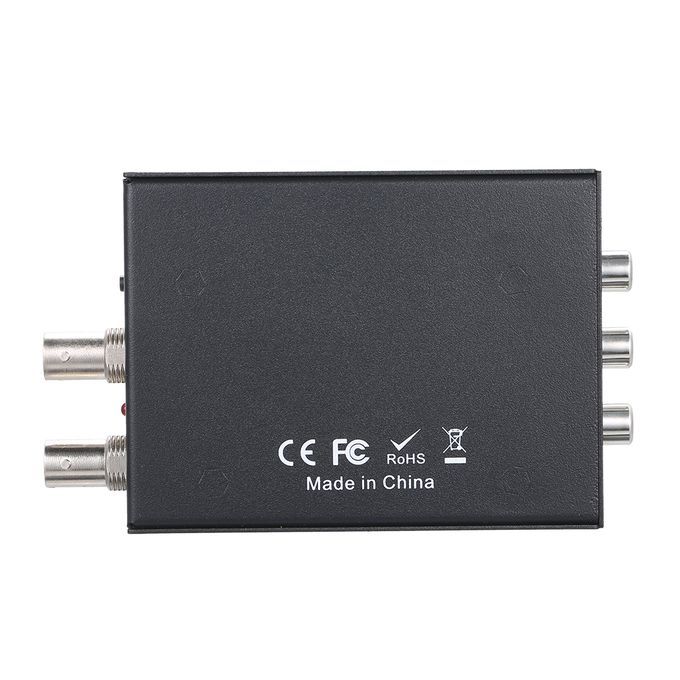

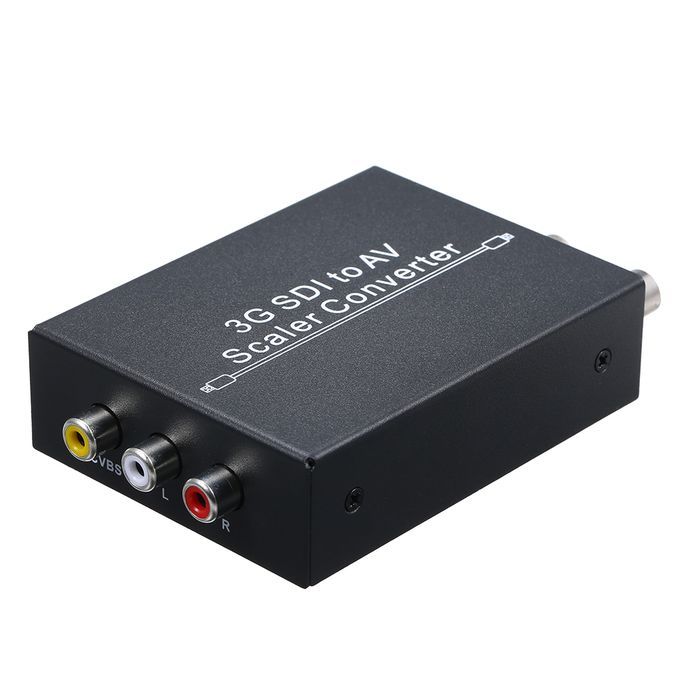

3G SDI To AV Scaler Converter HD SD L/R Analog Stereo Audio

The SDI to AV scaler converter allows SD-SDI, HD-SDI and 3G-SDI signals to be shown on CRT or HDTV while ensuring high bit rates of 2.970 Gbit/s to give you signal transmission without any loss. For professionals this means that it is now easier to distribute and extend your 3G SDI signal while giving you the ability to display your work on TV thanks to the built in this converter. Furthermore, thanks to the loop-through 3G-SDI design, users are able to enjoy both SDI and AV at the same time.



Features:

It operates at 2.970Gbit/s, 2.970/1.001Gbit/s, 1.485Gbit/s, 1.485/1.001Gbit/s and 270Mbits/s.

Auto video mode detection (3G/HD/SD).

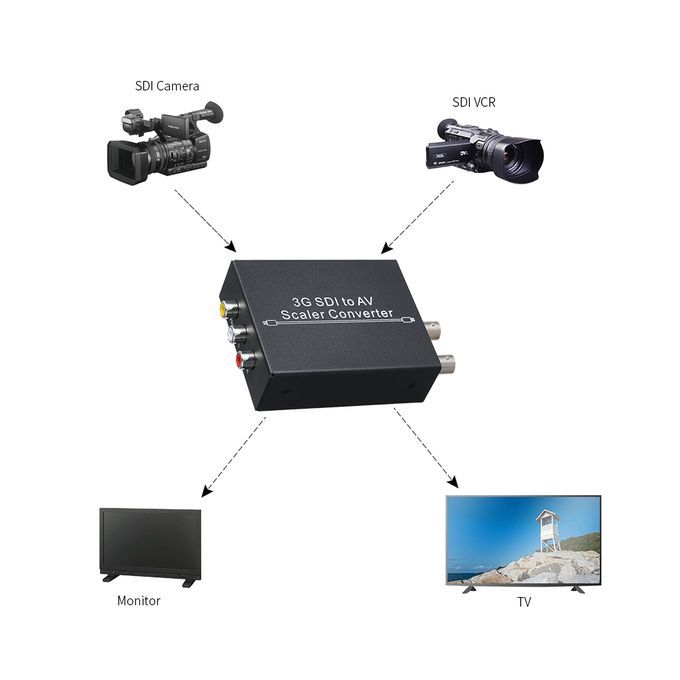

Simultaneous display with SDI /AV signals.

Connect with other units to extend your signal over long distances. Support signal transmission distances of up to 300m/984ft for SD signals, 200m/656ft for HD signals and 100m/328ft for 3G signals.

Convert from SMPTE 425M level B to Level A 1080p 50/59.94/60 4:2:2 10-bit.

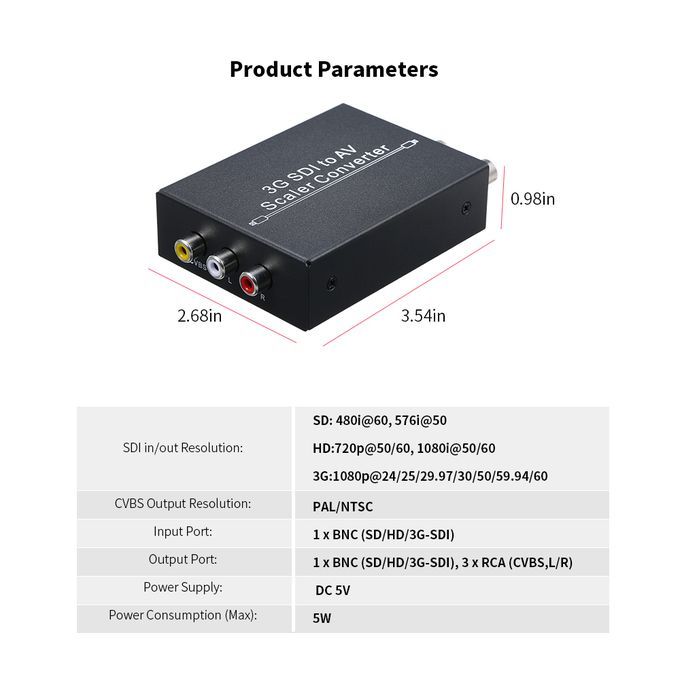

Specification:

Plug type: US/EU/UK (optional)

SMPTE Standard: 425M Level A & B, 424M, 292M, 259M-C

SDI Transmission Rates: 2.970 Gbit/s and 2.970/1.001 Gbit/s

SDI in/out Resolution: SD: 480i@60, 576i@50

HD:720p@50/60, 1080i@50/60

3G:1080p@24/25/29.97/30/50/59.94/60

CVBS Output Resolution: PAL/NTSC

Input Port: 1 x BNC (SD/HD/3G-SDI)

Output Port: 1 x BNC (SD/HD/3G-SDI), 3 x RCA (CVBS,L/R)

Supply: DC 5V

Consumption (Max): 5W

Item size: 9 * 6.8 * 2.5cm / 3.54 * 2.68 * 0.98in(L * W * H)

Item weight: Approx.195g / 6.88oz

Package size: 19.3 * 14.7 * 6.4cm / 7.60 * 5.79 * 2.52in(L * W * H)

Package weight: 366g / 12.70oz



Package list:

1 * Scaler converter

1 * adapter

1 * User manual
a a a a a

Key Features

It operates at 2.970Gbit/s, 2.970/1.001Gbit/s, 1.485Gbit/s, 1.485/1.001Gbit/s and 270Mbits/s.
Auto video mode detection (3G/HD/SD).
Simultaneous display with SDI /AV signals.
Connect with other units to extend your signal over long distances. Support signal transmission distances of up to 300m/984ft for SD signals, 200m/656ft for HD signals and 100m/328ft for 3G signals.
Convert from SMPTE 425M level B to Level A 1080p 50/59.94/60 4:2:2 10-bit.
It operates at 2.970Gbit/s, 2.970/1.001Gbit/s, 1.485Gbit/s, 1.485/1.001Gbit/s and 270Mbits/s.
Easy to use
Exquisite Workmanship
Well Made
Best Choice and best discounts
Customer Care is Our Top Priority
Offer is Subject to Availability
Big Sale

What's In the Box

1 x Scaler converter,1 x Power adapter,1 x User manual
