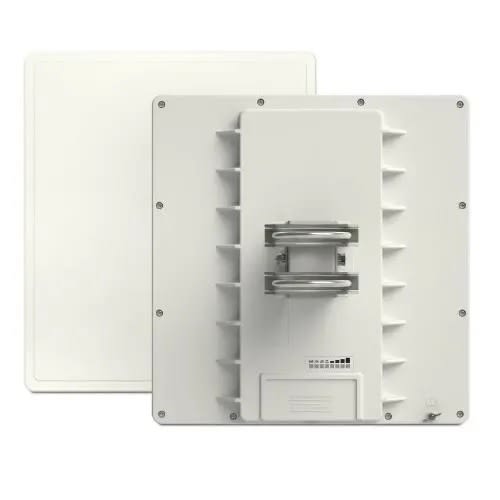

Rb911g-5hpacd-qrt Wireless Router

The QRT 5 ac is a rugged outdoor flat panel antenna, with a built-in RouterBOARD.

The device has a 24dBi antenna and a high-power 5GHz wireless transmitter which now supports 802.11ac and is also backward compatible with 802.11a/n.
Inside is the high-power RB911G-5HPacD dual chain wireless device (see separate brochure), with high performance, high output power wireless transmitter.

It has a Gigabit Ethernet port, to fully utilize the benefit of 802.11ac high-speed wireless.

Easy to use and quick to deploy, QRT is ideal for longer point-to-point links at 802.11ac speeds.

Specification:

Product code RB911G-5HPacD-QRT
CPU nominal frequency 720 MHz
CPU core count 1
Size of RAM 128 MB
10/100 Ethernet ports None
10/100/1000 Ethernet ports 1
MiniPCI slots 0
MiniPCI-e slots 0
Wireless chip model QCA9882-BR4A-R
Wireless standards 802.11a/n/ac
Number of USB ports 0
Power Jack 1
Supported input voltage 8 V - 30 V
PoE in Yes
PoE out No
Voltage Monitor Yes
PCB temperature monitor Yes
CPU temperature monitor No
Dimensions 309x320x50mm
Operating System RouterOS
Operating temperature range -30C to +70C
License level 4
Antenna gain DBI 24
Current Monitor No
CPU QCA9557-AT4A-R
Max Power consumption 11.5W
SFP ports 0
SFP+ ports 0
Number of chains 2
Serial port None
