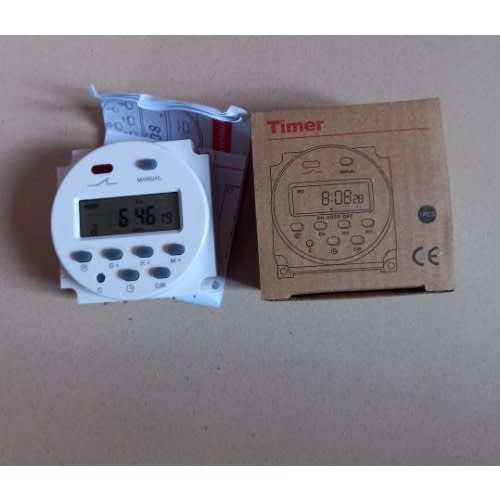

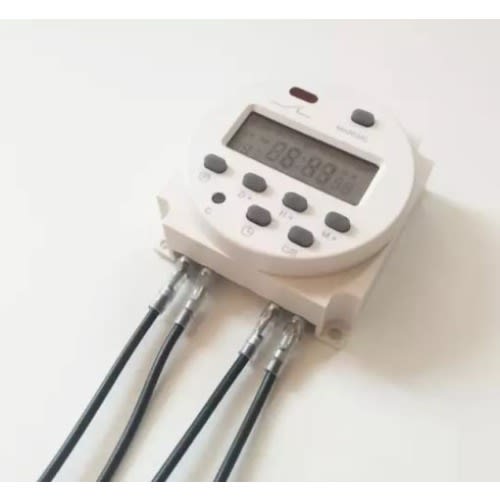

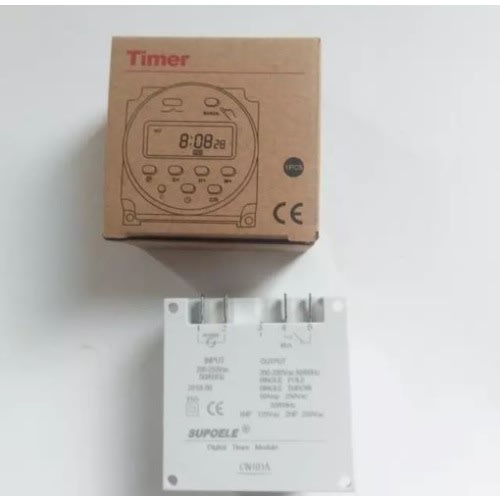

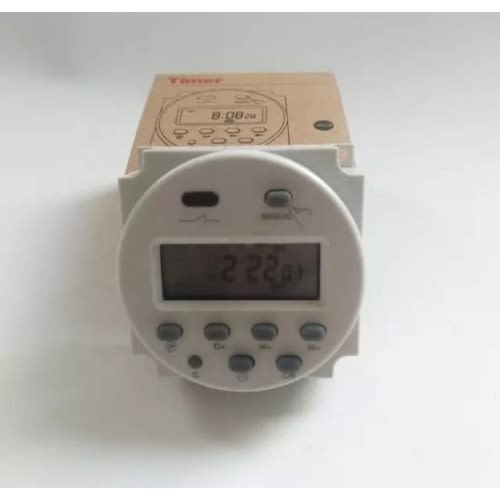

Latest technology COMS quartz Mico-controller
Digital electronics general purpose time switch with daily and weekly programs
Repeat programs with 17ON/ OFF setting and manual over-ride
Lithium battery power reserve when electric supply cut off
Technical Data
Voltage limit: AC180V~250V (50/60Hz)
Hysteresis: ≤1s/d(at 25°c)
On/off operation: 17ON/OFF
Minimum interval: 1 minute
Weight: Approx 66g
Display: LCD
Battery backup: 150h
Number of circuits: 1c
Load capacity: 16A 250VAC (ohmic load cosΦ=1)
Service life: Mechanically:10
Electrically:10
Ambient temperature:-10~55°c
Storage temperature:-20~70°c
Power consumption: 7.5VA (Max.)
OPERATING INSTRUCTION:
1.First time use this timer switch, please input AC and let battery recharge, after then press reset key.
2. At first time, the timer switch is in 24h mode. If you want change to 12 mode please press on "©"
key 5s, and LCD will display AM. If you want re-change to 24h mode, and press on "©" key 5s to return.
3. Programming:
| Step | Key | Programming |
| 1 | Press P | Setting 1 ON time(display 1 ON) |
| 2 | Press D+ | Select days of week(If you want same set in every day, you need not press this key |
| 3 | Press H+/M+ | Set hours and minutes |
| 4 | Press P | Setting 1 OFF time(display 1 OFF) |
| 5 | Press D+ | Select days of week(If you want same set in every day, you need not press this key) |
| 6 | Press H+/M+ | Set hours and minutes turn off time |
| 7 | Repeat step 2-6 | Set 2-17 on/off time |
| 8 | Press © | End
|
