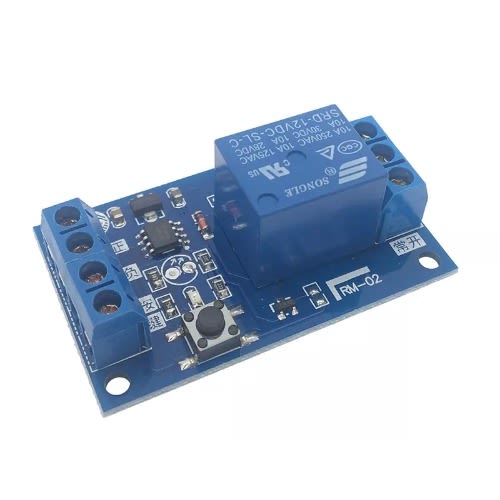

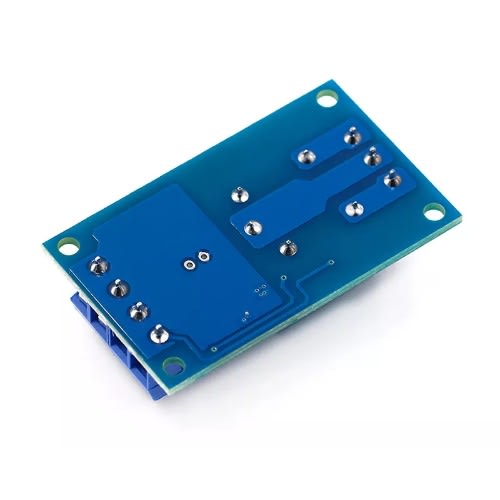

12V Single Button Bistable Relay Module

This 12V Single Button Bistable Relay Module is a Start, Stop and Self locking Car Modification Switch that operates on a 12V DC power supply. It can also be applied on a variety of switching system.

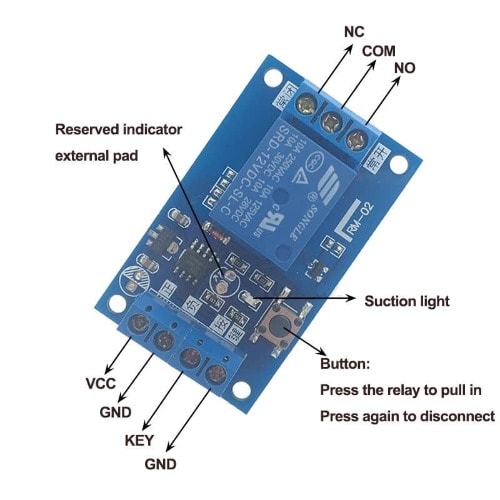

This module has a single button on the board. When you press the button once, the relay is ON and when you press it again, the relay is OFF. It also has provision for you to connect an external button or key to function as the button on the board.

The secondary output end of the relay can withstand the maximum current of 10A, that is, the working current of a circuit or device connected to this module should not be greater than 10A. According to your own needs, this module can be connected to the normally open or normally closed terminal.

This module is a Low level controlled module meaning that if the signal line and the ground touch, it is a trigger signal

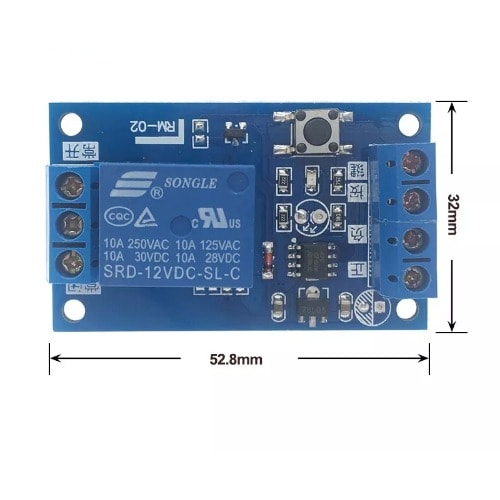

Specifications:

• Operating Voltage: 12V DC
• Maximum Load Current: 10A
