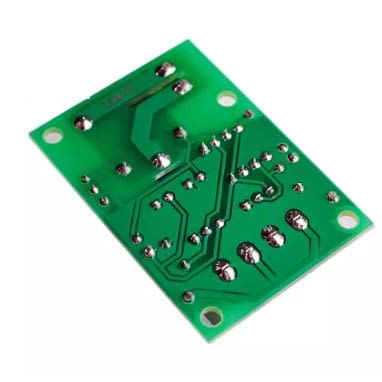

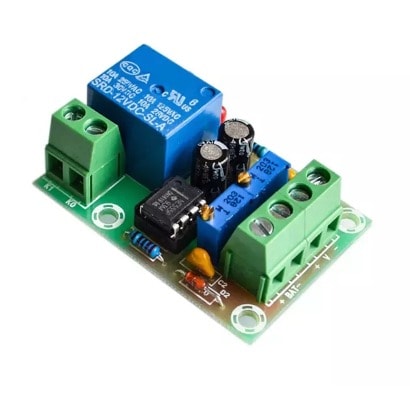

XH-M601 12V Automatic Battery Charging Control Board Module

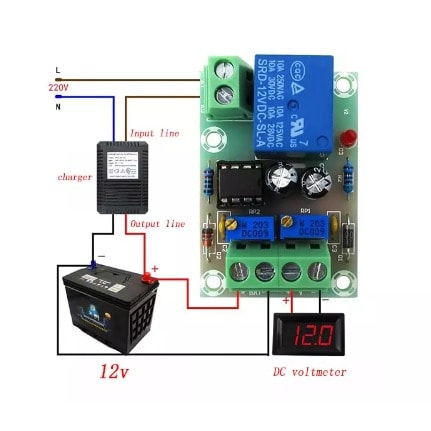

This XH-M601 12V Automatic Intelligent Battery Charging Control Board Module is a simple circuit that allows you to charge a battery by inserting and disconnecting an external charger, based on the actual battery voltage. The two precision trimmers on the circuit board allow you to adjust the trigger voltage and deflection, below and above, the relay must be switched on and off. Usually a range of 12.4V and 14.8V is correct for a lead accumulator, those commonly installed in motor vehicles. The relay excitation will automatically connect a charger to reset the charge that will automatically be interrupted as soon as it is charged. We also have the option of connecting a small voltmeter as a charge monitor, thanks to the dedicated screw terminal block.

TECHNICAL SPECIFICATION:

• Model: XH-M601
• Power Supply Voltage:13.8-14.8V
• Relay Operating Voltage:12.4V
• Relay Disconnect Voltage:14.8V
• Voltage Tolerance:+/-0.1V
• Voltage Detection Way:DC voltmeter
• Charging Type:12V storage battery
• Potentiometer Adjustment:RP1 RP2
• Size:50*32*18mm

Potentiometer Adjustment:

• RP1:adjust storage battery start charging voltage (low voltage setting:clockwise becomes higher,counter-clockwise becomes lower)
• RP2:adjust storage battery disconnect charging voltage (low voltage setting:clockwise becomes higher,counter-clockwise becomes lower)
