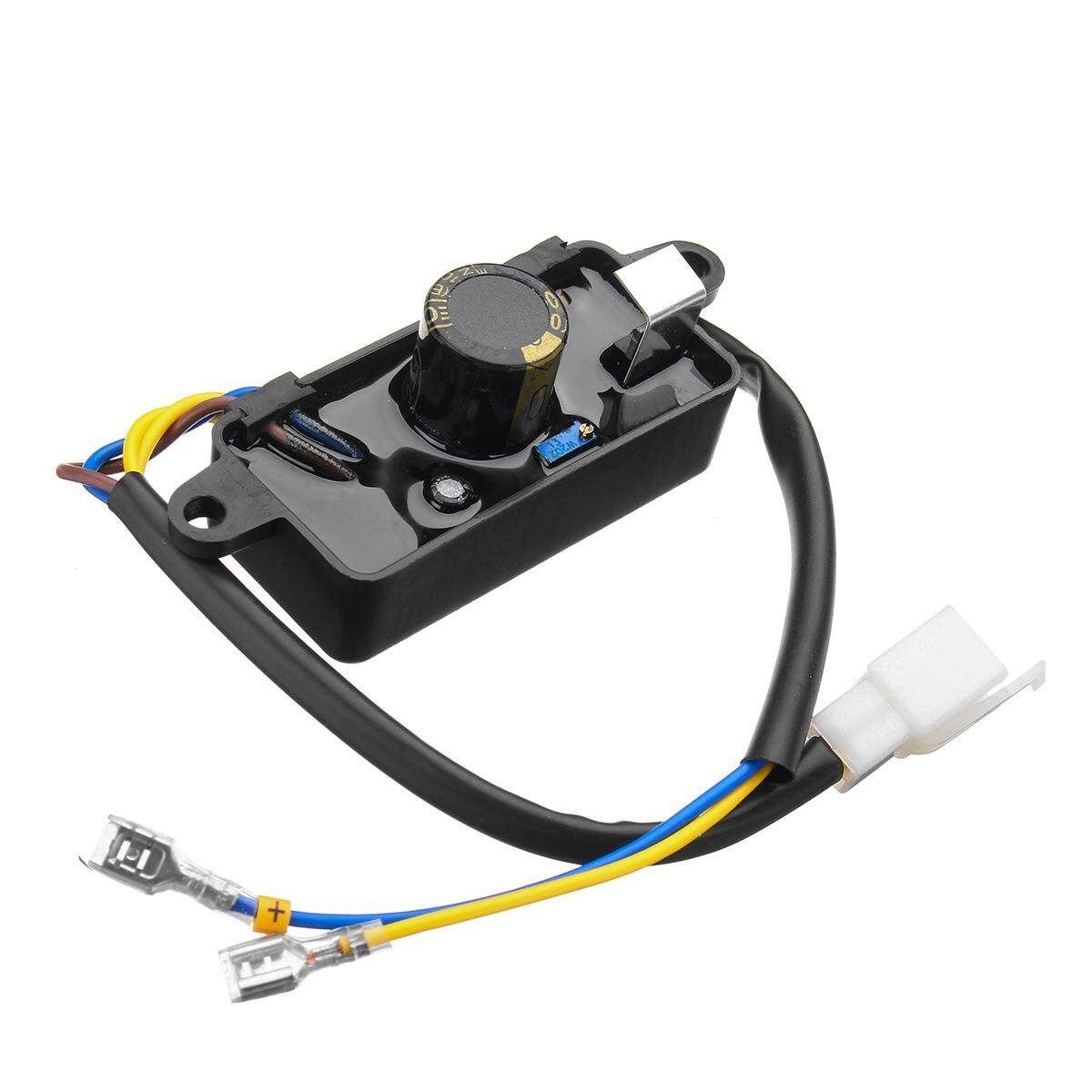

Automatic Voltage Regulator AVR For 2KW 3KW 3.5KW Powerstroke BlackMax

Specifications:
Model: AVR3-1N1AE
: 2KW~ 4KW
Type: Square
: Mainly black
Capacitance: 250V 220uF
Material: Plastic+wires+
Maximum Output: 90V 2.5A.
Excitation Voltage: 90V
Feedback Voltage: 16V ~ 20V
Frequency: 50/60Hz
Auto Voltage Adjusting Accuracy: ≤ ±1%.
Maximum Temperature Rise: 130C or 266F.
Continuous Working Time: ≥ 20 Hours.
Suitable for Powerstroke / BlackMax ranging from 2KW to 4KW

Features:
-Built-in Full-Wave Output Bridge Rectification.
-Voltage Output Increase with Loading.
-Stable Voltage Output with Negative Voltage Feedback.
-Over Voltage, Over Current and Short Circuit Protection.
-Large Manual Adjustable Voltage Output Range of 160V ~ 260V for 240V output.

Special Note:
1) A higher output AVR definitely works perfect on a of low output while on the contrary, a low output AVR CAN NOT be used for a of higher output. 2) If our AVR is out of adjustment for your , please MANUALLY turn clockwise or counter-clockwise a small bronze screw in a blue rubber part(potentiometer) to reach your desirable output. Clockwise turning is for increasing and counter-clockwise turning for decreasing voltage output. If this does not help you out, please contact with us for tech .








a a a a a

Key Features

Model: AVR3-1N1AE
: 2KW~ 4KW
Type: Square
Capacitance: 250V 220uF
Excitation Voltage: 90V
Feedback Voltage: 16V ~ 20V
Frequency: 50/60Hz
Voltage Output Increase with Loading
Easy to use
Exquisite Workmanship
Well Made
Best Choice and best discounts
Customer Care is Our Top Priority
Offer is Subject to Availability
Big Sale

What's In the Box

1 x Voltage Regulator
