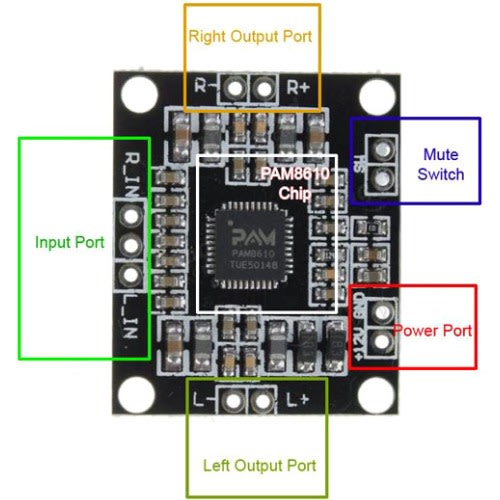

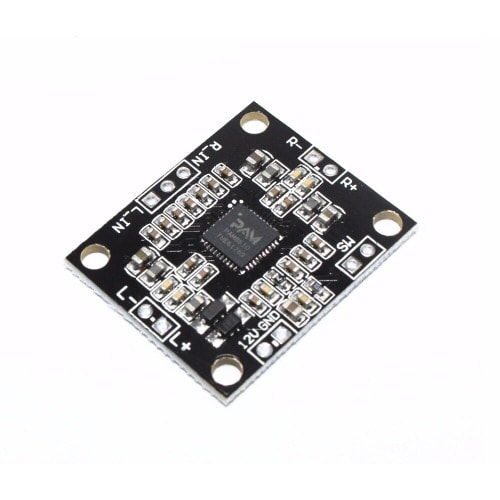

Stereo Class D Audio Amplifier Module - Pam8610

PAM8610 Stereo Class D Audio Amplifier Module is a compact dual channel class D, high power and high efficiency (90%) digital audio amplifier, which is based on the PAM8610 integrated chip. The PAM8610 Stereo Class D Audio Module can work with 7V to 15V power supply, But 12V DC is recommended. The nominal power is 10W by applying an 8 ohm power speaker on the output, but the maximum power is 15W per channel and occurs by applying a 4 ohm power speaker for each Channel. The module has a short-circuit protecting, overheating and over-current protection. With low THD N (0.1%), low EMI, and good PSRR specification, the PAM8610 has a high-quality sound reproduction on its frequency response 20Hz to 15kHz range.

PAM8610 Stereo Class D Audio Amplifier Module Features:

• IC: PAM8610
• Input voltage: 6V ~ 15V (self-protection)
• Input Voltage (Recommended): 12V
• Output Power: 2x15W (at 4Ω Load), 2x10W (at 8Ω Load)
• Class Type: D
• Input Impedance: 20MΩ
• Output Impedance: 4Ω, 8Ω
• Frequency Response: 20Hz-15KHz
• Speakers: 10W ~ 100W
• Size: 45mm x 48mm x 18mm

You can download PAM8610 Stereo Class D Audio Amplifier Module datasheet
