Liitokala Lii-500S Smart Battery Charger With Lcd Display

Lii-500S
Description
Product model: Lii-500S
Input Current: DC 12V 3A(min)
Output Li-ion 4.2V: 500mA*4 / 700mA*mA*mA*2
Output NiMH/Cd 1.48V: 500mA*4 / 700mA*mA*4
Discharger Current: 250mA/500mA
USB output:5A/1000mA
Standby Current: <15mA
Size: L * W * H/165*100*36mm

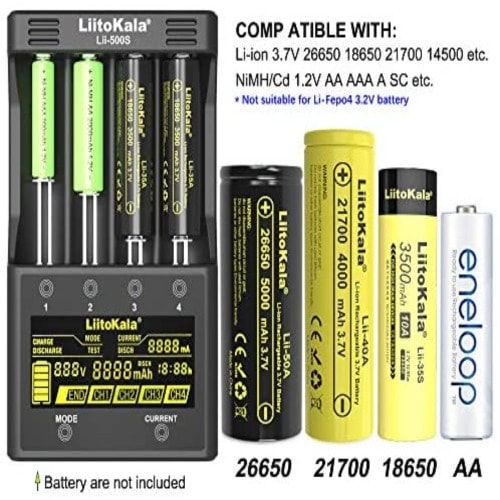

For battery: 1.2V Ni-MH / Ni-CD to 3.7V Li-ion battery.For AA AAA RCR IMR
Instructions for use
1. CHARGE: When you put the battery into the charger and turn on the power, the charger defaults to the charging mode. Only need to choose the charge current you need.
2. DISCHARGE: Press and hold the Mode key for 3 seconds to enter the mode selection. Select Discharge mode and press "current" to select the desired charging current. The charger will automatically complete the test, this time only need to wait for the test results.
3. TEST: Same Up.
Note:
1. In the "DISCHARGE or TEST" mode, if the choice of 500mA charge current, then the charger default discharge current of 250mA. For energy saving time, it is recommended to select 700mA or 1000mA in "DISCHARGE or TEST" mode. Because the discharge current at this time is 500mA.
2. USB A output, It needs to be powered on to output, the output voltage/current is 5V/1000mA.

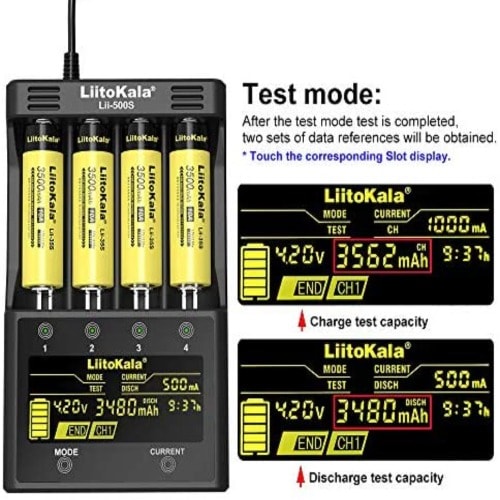

3. About the test results: After the TEST mode ends, two test results are produced. One is to charge the battery test the capacity and the other is to discharge the battery test the capacity. These test results are provided for your reference only and cannot be used as any commercial proof.

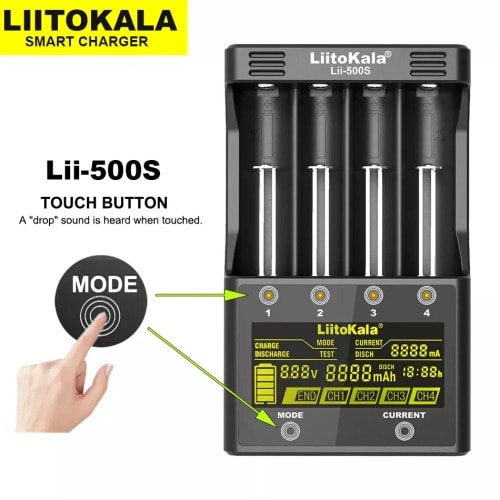

4. When the button is touched, the charger will make a "drop" sound, and this sound cannot be turned off.
Product included:Lii-500S Charger + 12V / 3A adapter (EU) + Car
