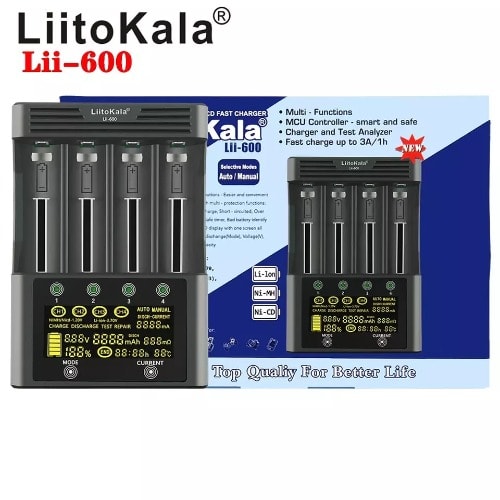

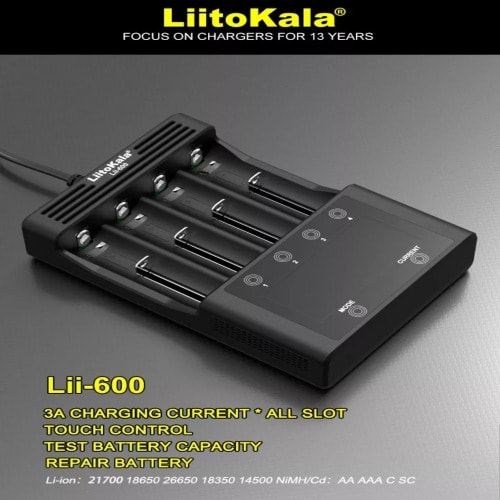

Liitokala Lii-600 Smart Battery Charger With Lcd Display

Lii-600 Smart Charger. This is a highend smart quick charger with touchscreen control. 4 channel independent slots for rechargeable battery charging, battery discharging, battery capacity testing and battery repair. Lii-600 has temperature, short circuit protection, overcharge protection and zero volt battery activation function. Lii-600 can automatically time monitor the battery charge and discharge during battery capacity testing process. Lii-600 can charge various sizes of cylindrical lithium ion batteries and nickel metal hydride batteries widely used in strong light flashlight, power tools, digital cameras and other electronic products that use rechargeable cylindrical batteries. It has beautiful appearance, safe and easy to operate. Easy to carry.
Powerful functions, it's your good helper at home, office or wherever you need to recharge your batteries.
Specific parameters:
1. DC input voltage: 12.0V/5.0A
2.Charging current of niMH battery: 1.48V 250mA/500mA/1000mA x 4slots.
Lithium ion battery charging current; 4.2V/250mA, 4.2V/500mA 1000mA 1500mA, 2000mA, 2500mA, 3000mA x 4
3. Rechargeable battery specifications: , , , AA, AAA, etc
4. Discharge current: 250mAx4, 500mAx4, 750mAx4
5. Termination mode: Intelligent voltage monitoring
6. External dimension: 165mm(length)x115mm(width)x 40mm (height).
Warning:
1. This charger can only charge cylindrical lithium ion battery and nickel metal hydride battery. It does not charge lithium phosphate battery
2. Before use, please carefully refer to the manual, pay attention to the recommended charging current of the rechargeable battery, do not exceed the recommended charging current.
3. Do not use other nonstandard power adapter.
4. Chargers may get hot when charging and discharging, so be careful not to burn.( monitor and pay attention to the charging current)
5. When you are done using the charger, please unplug the power supply and remove all the batteries from the charger.
6. Use only at room temperature and indoors.
7. The test data of this product is for reference only, please refer to professional instruments for the actual situation.
3A Fast Charging The maximum charging current of Lii-600 is 3000mA*4 Slots. The charger will automatically allocate the charging current, if you are not satisfied, you can manually select the charging current.
Touch button Lii-600 adopts the design of touch buttons, and it will send out a "beep" sound feedback when touched. Responsive and easy to operate.

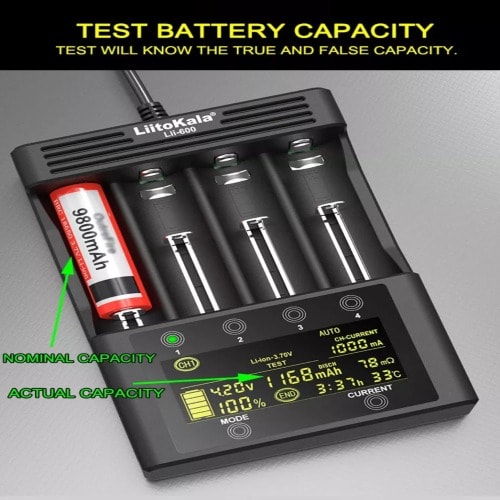

Test battery capacity Press "MODE" key to select "TEST" mode. It takes some time to test the battery capacity, please be patient.

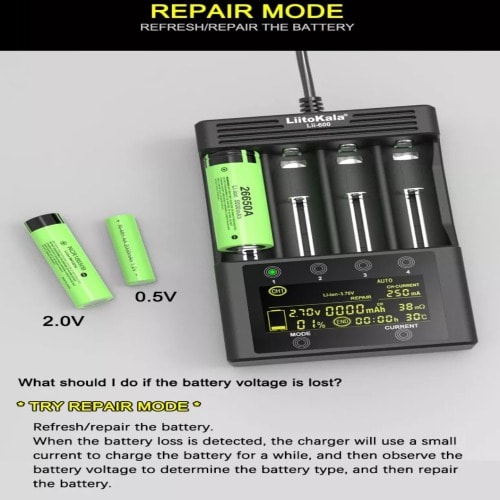

Repair battery Working principle: When the charger detects that the battery is losing power, it will allocate a small current to charge the battery/stop charging and observe the battery voltage change. The battery may be repaired multiple times. Note; There is no guarantee that the battery will be repaired successfully.
Temperature monitoring Each tank has an independent temperature detection device. When the temperature reaches 65°C (149°F), the charger will lower the charging current by two gears. If the temperature still rises, the charging current will drop to the lowest gear. (Current gear: 250mA, 500mA, 1000ma, 1500mA, 2000mA, 2500mA, 3000mA)
